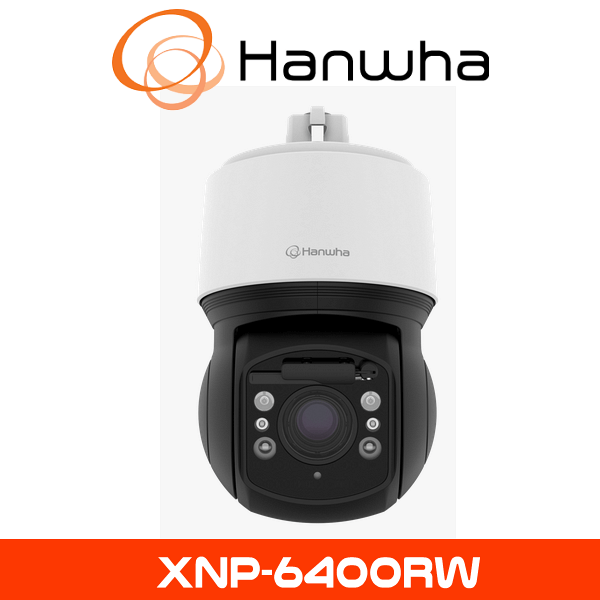

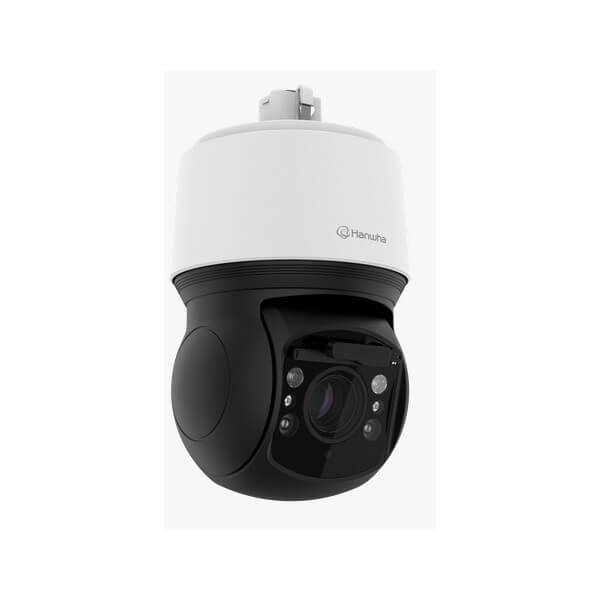

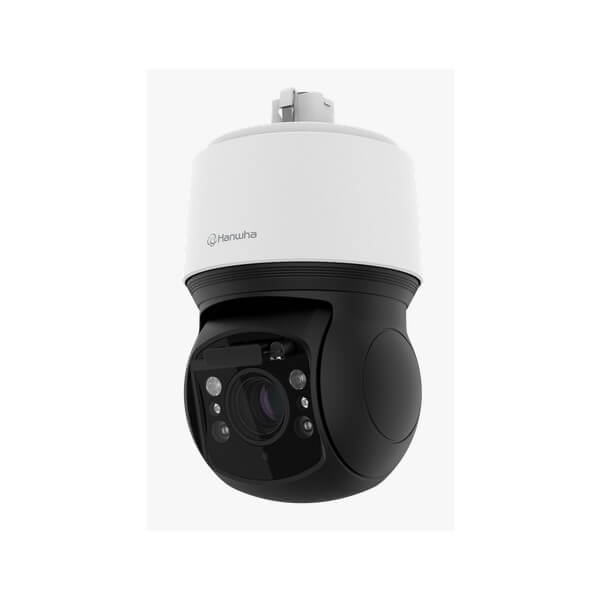

Hanwha XNP-6400RW PTZ CCTV Camera
The Hanwha XNP-6400RW PTZ CCTV Camera, previously recognized as Samsung CCTV, is a high-performance 2MP pan-tilt-zoom (PTZ) security camera designed for large-area surveillance and precise object tracking. With deep learning AI-powered analytics, a powerful 40x optical zoom, and adaptive IR night vision, this camera provides unparalleled monitoring for demanding outdoor environments.
2MP Full HD Imaging
Equipped with a 2MP image sensor, the XNP-6400RW delivers high-resolution video clarity, ensuring detailed forensic video footage for security investigations and high-accuracy monitoring.
AI-Powered Deep Learning Analytics
This camera leverages deep learning AI technology to intelligently classify humans, vehicles, and objects, reducing false alarms and enhancing security efficiency. Advanced analytics include motion detection, virtual line crossing, intrusion detection, loitering alerts, and auto-tracking.
40x Optical Zoom with PTZ Functionality
The 40x optical zoom and 360° continuous pan-tilt-zoom (PTZ) capabilities allow operators to track objects at long distances with incredible accuracy, making it ideal for traffic monitoring, perimeter protection, and large-area security.
Adaptive IR Night Vision
With long-range IR illumination of up to 300 meters (984 feet), the XNP-6400RW ensures clear image capture in complete darkness, optimizing low-light performance for 24/7 surveillance.
Rugged and Weatherproof Housing
Built for extreme outdoor conditions, the XNP-6400RW features IP66-rated weatherproof protection and IK10-rated impact resistance, making it resistant to dust, heavy rain, and vandalism.
Optimized Bandwidth and Storage Efficiency
Utilizing H.265 video compression, the XNP-6400RW reduces bandwidth consumption and extends video storage capacity, ensuring cost-effective long-term data retention.
Easy Installation and Seamless Integration
Supporting Power over Ethernet (PoE++), the camera simplifies installation with a single cable for power and data transmission. The ONVIF compliance ensures seamless integration with leading video management systems (VMS).
Key Specifications:
- Resolution: 2MP Full HD (1920 × 1080)
- AI-powered analytics: Object classification, motion detection, auto-tracking, loitering alerts, virtual line crossing, intrusion detection
- Optical Zoom: 40x for long-range surveillance
- Infrared Night Vision: Up to 300m (984 feet) with smart IR
- Weatherproof Rating: IP66 for extreme outdoor conditions
- Vandal-Resistant Rating: IK10 for high-impact protection
- Video Compression: H.265/H.264/MJPEG
- Power Source: PoE++ and 24V AC
- Operating Temperature: -40°C to +55°C (-40°F to +131°F)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Specifications:
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.25~170mm(40x) zoom (digital 32x, total 1280x zoom) |
| Optical Zoom | 40x |
| Max. Aperture Ratio | F1.6(Wide)~F4.95(Tele) |
| Angular Field of View | H: 65.66°(Wide)~1.88°(Tele) / V: 39.4°(Wide)~1.09°(Tele) |
| Min. Object Distance | 3m(9.84ft) |
| Focus Control | Oneshot AF, Focus save |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360° Endless |
| Pan Speed | Max. 500°/sec, Manual: 0.024°/sec~250°/sec |
| Tilt Range | 110°(90°~-20°) |
| Tilt Speed | Max. 350°/sec, Manual: 0.024°/sec~250°/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.1°, Pan/Tilt correction |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | Extreme WDR(150dB) |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, 4point Quadrangle zones – Color: Gray/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Manual / Max |
| White Balance | ATW /Narrow ATW /AWC /Manual /Indoor /Outdoor /Mercury /Sodium |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip&Mirror |
| Analytics | Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Shock detection * Audio detection, Sound classification(with NW I/O Box) |
| Alarm Triggers | Analytics, Network disconnect * Alarm input(with NW I/O Box) |
| Alarm Events | When alarm trigger occurred – File upload(image) : e-mail/FTP/SFTP – FIle upload(video clip): FTP/SFTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers – Handover: PTZ preset, send message by HTTP/HTTPS/TCP – Audio clip playback – MQTT: publication * Alarm output (Via optional I/O box SPM-4210) |
| Light Type | IR LED(850nm) |
| IR Viewable Length | 200m(656.17ft), Wise IR |
| Water Removal | Support(with Wiper, Lens heater) |
| Auto Tracking | Support Object auto tracking(Person/Vehicle) Target lock tracking |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Hanwha Vision Open Platform |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authentication, Prevent brute-force attacks |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | HTPM(Hanwha trusted platform module), SDcard partition encrypt |
| Security Certificate | CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2) |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 1TB |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F ~ +131°F) / +74°C(+165°F) (MAX) based on NEMA-TS 2(2.2.7) * Start up should be done at above -30°C 0~100%RH(Condensing) Humidity control with AIR vent |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9) |
| Input Voltage | PoE++(IEEE802.3bt, Class6, Type3, Injector included) |
| Power Consumption | Typical 20W, Max 42W |
| Mechanical | |
| Color / Material | White, Black / Aluminum+Polycarbontate |
| RAL Code | White: RAL9003 / Black: RAL9005 |
| Product Dimensions / Weight | ø184.9×318.8mm(7.28×12.55″) / 5400g(11.90lb) |
| Hanging Mount (Dome) | SBP-156HMW |
| Ceiling Mount (Assy) | SBP-156CMW, SBP-300CMTS, SBP-300CMW1/900CMW, SBP-150CMI/300CMI |
| Wall Mount | SBP-156WMW, SBP-300WMW, SBP-300WMW1, SBP-400WMW, SBP-250WMW |
| Pole Mount | SBP-300PMW2 |
| Parapet Mount | SBP-156LMW, SBP-156LMW1, SBP-300LMW |
| Corner Mount | SBP-156KMW, SBP-300KMW1 |
| Cabinet | SBP-300NBW |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 59.5m(195.3ft) / Tele: 2340.4m(7678.4ft) |
| Observe (63PPM/ 19PPF) | Wide: 23.8m(78.1ft) / Tele: 936.2m(3071.4ft) |
| Recognize (125PPM/ 38PPF) | Wide: 11.9m(39.1ft) / Tele: 468.1m(1535.7ft) |
| Identify (250PPM/ 76PPF) | Wide: 6m(19.5ft) / Tele: 234m(767.8ft) |
