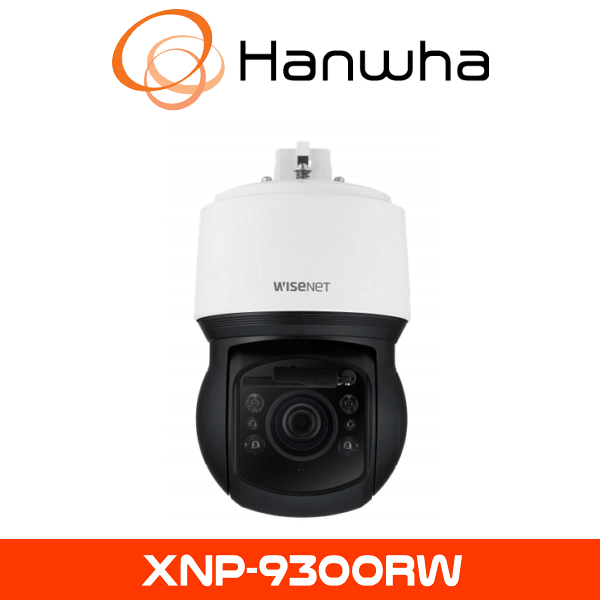

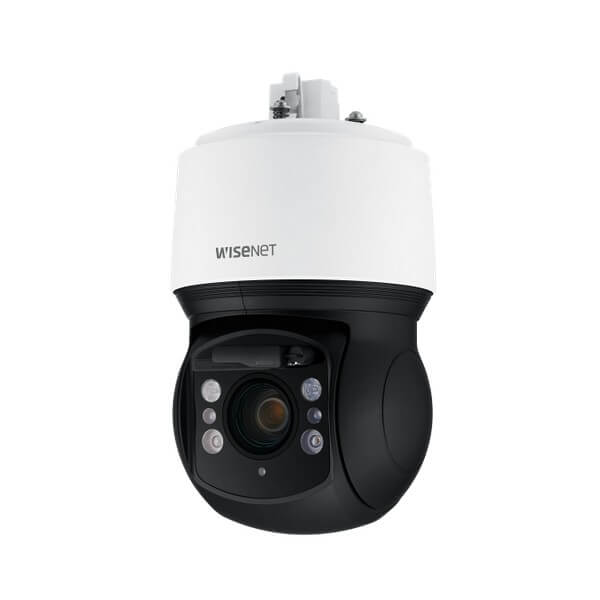

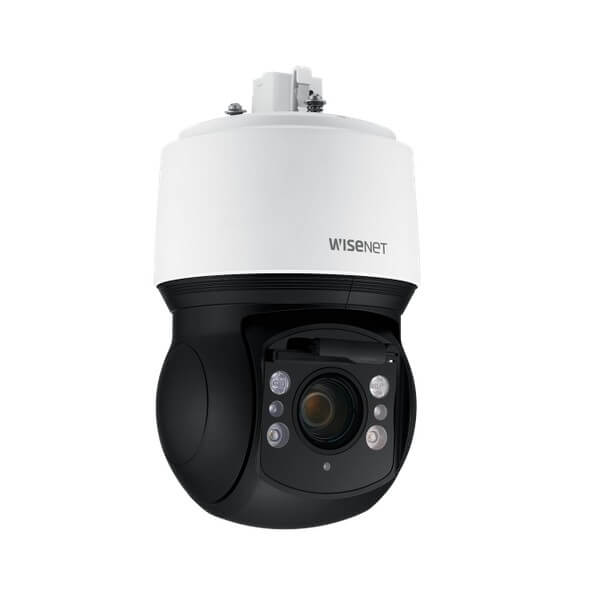

Hanwha XNP-9300RW PTZ CCTV Camera
The Hanwha XNP-9300RW PTZ CCTV Camera, previously recognized as Samsung CCTV, is a high-performance 4K pan-tilt-zoom (PTZ) security camera designed for large-area surveillance and precise object tracking. With deep learning AI-powered analytics, a powerful 30x optical zoom, and adaptive IR night vision, this camera provides unparalleled monitoring for demanding outdoor environments.
4K Ultra-High-Resolution Imaging
Equipped with an 8MP (4K) image sensor, the XNP-9300RW delivers exceptional image clarity, ensuring detailed forensic video footage for security investigations and high-accuracy monitoring.
AI-Powered Deep Learning Analytics
This camera leverages deep learning AI technology to intelligently classify humans, vehicles, and objects, reducing false alarms and enhancing security efficiency. Advanced analytics include motion detection, virtual line crossing, intrusion detection, loitering alerts, and auto-tracking.
30x Optical Zoom with PTZ Functionality
The 30x optical zoom and 360° continuous pan-tilt-zoom (PTZ) capabilities allow operators to track objects at long distances with incredible accuracy, making it ideal for traffic monitoring, perimeter protection, and large-area security.
Adaptive IR Night Vision
With long-range IR illumination of up to 300 meters (984 feet), the XNP-9300RW ensures clear image capture in complete darkness, optimizing low-light performance for 24/7 surveillance.
Rugged and Weatherproof Housing
Built for extreme outdoor conditions, the XNP-9300RW features IP66-rated weatherproof protection and IK10-rated impact resistance, making it resistant to dust, heavy rain, and vandalism.
Optimized Bandwidth and Storage Efficiency
Utilizing H.265 video compression, the XNP-9300RW reduces bandwidth consumption and extends video storage capacity, ensuring cost-effective long-term data retention.
Easy Installation and Seamless Integration
Supporting Power over Ethernet (PoE++), the camera simplifies installation with a single cable for power and data transmission. The ONVIF compliance ensures seamless integration with leading video management systems (VMS).
Key Specifications:
- Resolution: 4K Ultra HD (3840 × 2160, 8MP)
- AI-powered analytics: Object classification, motion detection, auto-tracking, loitering alerts, virtual line crossing, intrusion detection
- Optical Zoom: 30x for long-range surveillance
- Infrared Night Vision: Up to 300m (984 feet) with smart IR
- Weatherproof Rating: IP66 for extreme outdoor conditions
- Vandal-Resistant Rating: IK10 for high-impact protection
- Video Compression: H.265/H.264/MJPEG
- Power Source: PoE++ and 24V AC
- Operating Temperature: -40°C to +55°C (-40°F to +131°F)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Specifications:
| Video | |
| Imaging Device | 1/2.8″ 8MP CMOS |
| Resolution | 3840×2160, 2592×1944, 2592×1464, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.1Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On) |
| Video Out | None |
| Lens | |
| Focal Length (Zoom Ratio) | 5~150mm(30x) zoom (digital 32x, total 960x zoom) |
| Max. Aperture Ratio | F1.6(Wide) – F4.56(Tele) |
| Angular Field of View | H: 57.42˚(Wide)~2.19˚(Tele) / V: 33.54˚(Wide)~1.25˚(Tele) |
| Min. Object Distance | 3m(9.84ft) |
| Focus Control | Oneshot AF, Focus save |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360˚ Endless |
| Pan Speed | Max. 500˚/sec, Manual: 0.024˚/sec~250˚/sec |
| Tilt Range | 110˚(-20˚~90˚) |
| Tilt Speed | Max. 350˚/sec, Manual: 0.024˚/sec~250˚/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.1˚, Pan/Tilt correction |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR)/Color/BW/Schedule |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | Extreme WDR(120dB) |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, rectangular Support – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Manual / Max |
| White Balance | ATW /Narrow ATW /AWC /Manual /Indoor /Outdoor /Mercury /Sodium |
| LDC | None |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Shock detection * Audio detection, Sound classification(with NW I/O Box) |
| Business Intelligence | None |
| Serial Interface | None |
| Alarm I/O | None |
| Alarm Triggers | Analytics, Network disconnect * Alarm input(with NW I/O Box) |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers PTZ Preset Handover * Alarm output(with NW I/O Box) |
| Audio In | None |
| Audio Out | None |
| IR Viewable Length | 200m(656.17ft), Wise IR |
| IR Illuminator (Optional) | None |
| Water Removal | Support(with wiper) |
| Auto Tracking | Object auto tracking(Person/Vehicle), Target lock tracking |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | None |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device certificate(Hanwha Techwin Root CA) Cyber security assuarance program UL CAP(UL 2900-1) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | None |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 1TB |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | Normal : -40°C~+55°C(-40°F ~ +131°F) / Maximum Temperature based on NEMA-TS 2(2.2.7) : +74°C(+165°F) * Start up should be done at above -30°C Less than 95% RH(Non-condensing) |
| Storage Temperature / Humidity | -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing) |
| Certification | IP66, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9) |
| Input Voltage | HPoE(IEEE802.3bt, Class6, Type3, Injector included) |
| Power Consumption | Typical 20W, Max 42W |
| Mechanical | |
| Color / Material | White, Black / Aluminum+Polycarbontate |
| RAL Code | White: RAL9003 / Black: RAL9005 |
| Product dimensions / weight | Ø184.9×318.8mm(7.28×12.55″) / 5.4Kg(11.90lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 140.2m(460.0ft) / Tele: 4018.1m(13182.6ft) |
| Observe (63PPM/ 19PPF) | Wide: 56.1m(184.0ft) / Tele: 1607.2m(5273.1ft) |
| Recognize (125PPM/ 38PPF) | Wide: 28.0m(92.0ft) / Tele: 803.6m(2636.5ft) |
| Identify (250PPM/ 76PPF) | Wide: 14.0m(46.0ft) / Tele: 401.8m(1318.3ft) |
