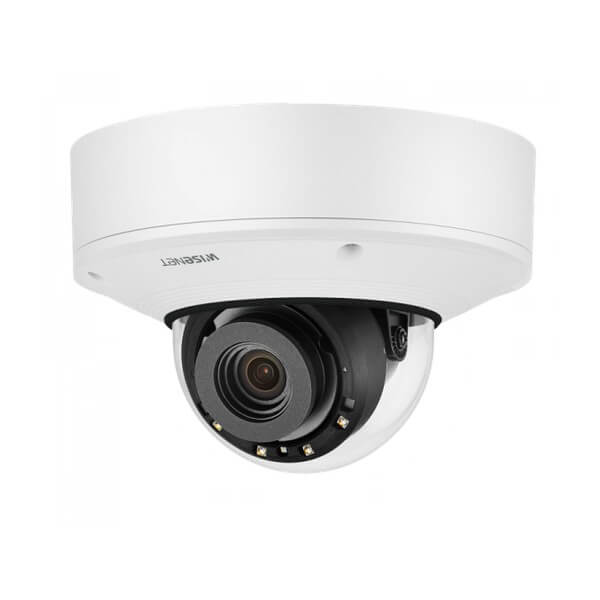

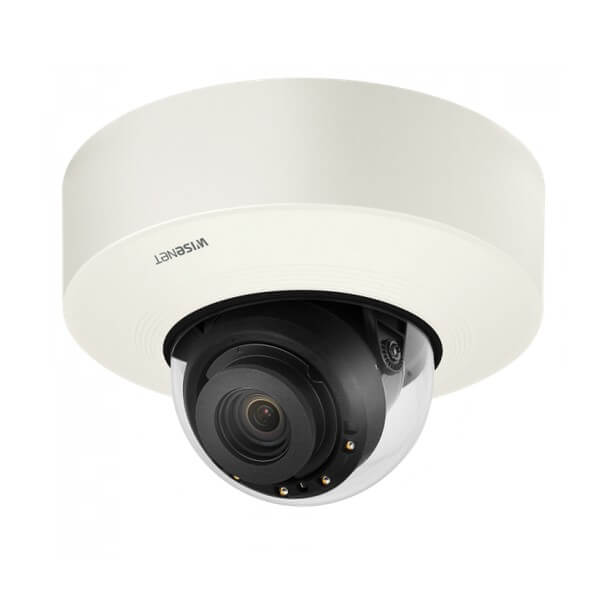

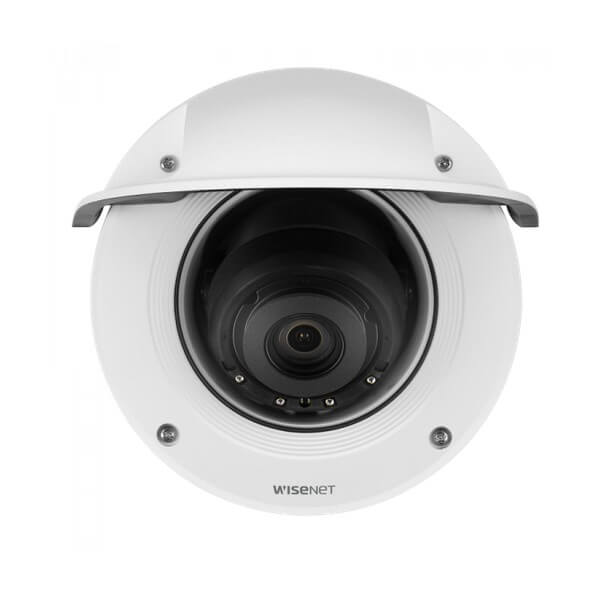

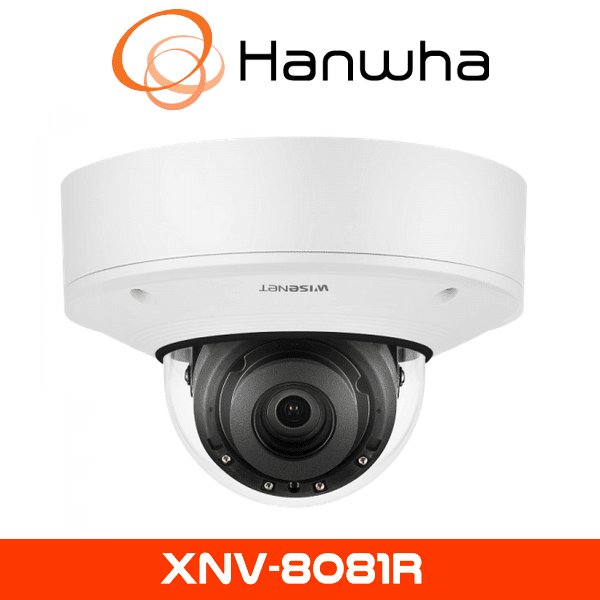

Hanwha XNV-8081R CCTV Camera



Hanwha XNV-8081R CCTV Camera

Hanwha XNV-8081R CCTV camera, previously known as Samsung CCTV, is engineered to deliver exceptional surveillance performance in demanding environments. Ideal for businesses and commercial premises in Dubai, Abu Dhabi, and across UAE, this robust and vandal-resistant dome camera features advanced imaging technology that captures high-quality video in all lighting conditions.

Description

DESCRIPTION TO Hanwha XNV-8081R CCTV Camera

Hanwha XNV-8081R CCTV camera, previously known as Samsung CCTV, is engineered to deliver exceptional surveillance performance in demanding environments. Ideal for businesses and commercial premises in Dubai, Abu Dhabi, and across UAE, this robust and vandal-resistant dome camera features advanced imaging technology that captures high-quality video in all lighting conditions. The camera’s 5MP resolution combined with WiseStream II compression significantly optimizes storage efficiency, enabling extended recording periods without compromising image clarity.

Exceptional Image Quality

The Hanwha XNV-8081R offers an outstanding 5-megapixel resolution, ensuring detailed and sharp imagery essential for critical surveillance tasks. Its advanced imaging sensor and high-resolution optics ensure clarity and precision even under challenging lighting conditions. The camera is equipped with Hanwha’s WiseStream II technology, drastically reducing bandwidth usage and storage requirements by optimizing video encoding efficiency without sacrificing quality.

Robust and Reliable Design

Featuring an IK10-rated vandal-resistant housing and an IP67 waterproof and dustproof enclosure, the Hanwha XNV-8081R is ruggedly designed to withstand severe environmental conditions. This durability makes it ideal for installations at banks, retail outlets, parking lots, schools, and other public spaces where surveillance equipment is exposed to potential vandalism or harsh weather.

Superior Night Vision

Hanwha XNV-8081R integrates powerful IR LEDs that deliver clear nighttime visibility up to 50 meters, ensuring comprehensive 24-hour monitoring capabilities. Nighttime footage retains clarity, crucial for identifying individuals and incidents occurring under the cover of darkness.

Advanced Analytics Capabilities

The camera offers sophisticated built-in analytics including intrusion detection, loitering detection, and face detection. These analytics help in real-time monitoring and proactive response to security threats. The camera’s intelligent analytics ensure alerts are highly accurate, reducing false alarms and enhancing overall operational efficiency.

Easy Integration and Installation

Designed for easy integration, the Hanwha XNV-8081R supports ONVIF compliance, ensuring compatibility with existing surveillance setups and allowing quick and efficient installation. Its user-friendly interface simplifies the management and configuration of settings.

Suitable for Various Applications

The Hanwha XNV-8081R CCTV camera is highly adaptable, making it suitable for diverse applications such as retail, banking, educational institutions, and government buildings. Whether you are looking for reliable surveillance solutions in busy commercial environments or secure monitoring in sensitive areas, this model offers robust features tailored to diverse security needs.

Trusted Hanwha Distributor in Dubai

Purchasing the XNV-8081R through an authorized Hanwha Distributor in Dubai ensures genuine products, extensive warranty, and superior customer service. Our local expertise ensures quick response and dedicated support, keeping your surveillance systems operational and efficient.

Key Features

• Max. 5Megapixel resolution
• 0.07Lux@F1.4 (Color), 0Lux (B/W, IR LED on)
• Day & Night (ICR), WDR (150dB / 120dB)
• Hallway View, WiseStreamII Support
• Video & audio analytics, Audio playback
• DIS and shock detection with built-in gyro sensor
• Modular structure, PoE, 12VDC, 24VAC (Optional)
• IP66/IP67, IK10+, NEMA4X

Specification

Video
Imaging Device 1/1.8″ 6MP CMOS
Resolution 2560×1920, 2560×1440, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.07Lux(F1.3, 1/30sec)
BW: 0Lux(IR LED)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation
USB: Micro USB Type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio) 3.9~9.4mm(2.4x) motorized varifocal
Max. Aperture Ratio F1.3
Angular Field of View H: 92.1°(Wide)~38.7°(Tele), V: 67.2°(Wide)~29.0°(Tele), D: 119.9°(Wide)~48.6°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type DC auto iris, P iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~360° / -45°~85° / 0°~355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
– Color: Grey/Green/Red/Blue/Black/White
– Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
Business Intelligence People counting, Queue management, Heatmap
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover
Audio playback
Audio In Selectable(mic in/line in),
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max. output level: 1Vrms
IR Viewable Length 50m(164.04ft)
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11,~MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -35°C
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification IP66/IP67/IP6K9K, IK10+, NEMA4X
Input Voltage PoE(IEEE802.3af, Class3), 24VAC(Optional), 12VDC
Power Consumption PoE: Max 12.95W, typical 10.90W
12VDC: Max 11.7W, typical 8.90W
24VAC: Max 14.9W, typical 11.30W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight Ø180x125mm(7.09×4.92″), 1.75kg(3.86 lb)
