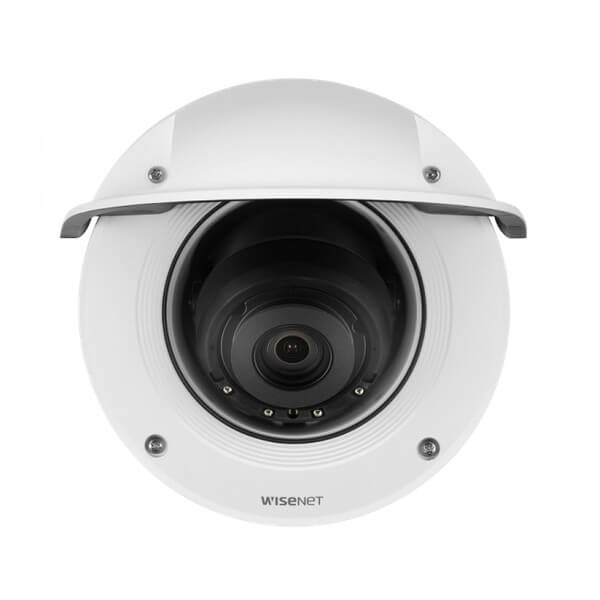

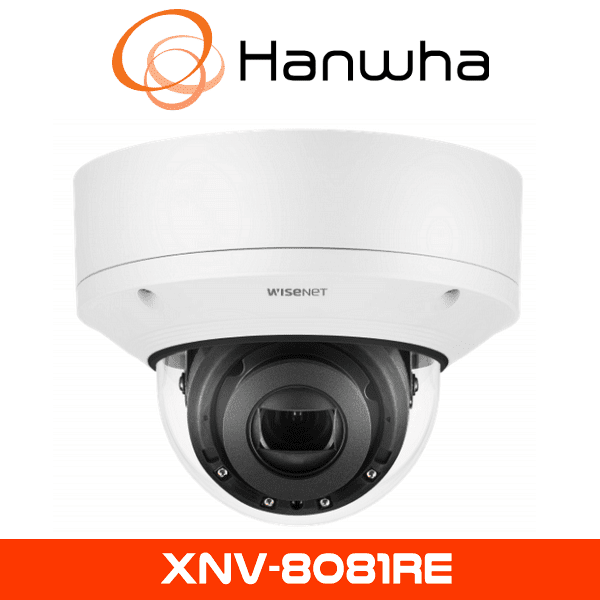

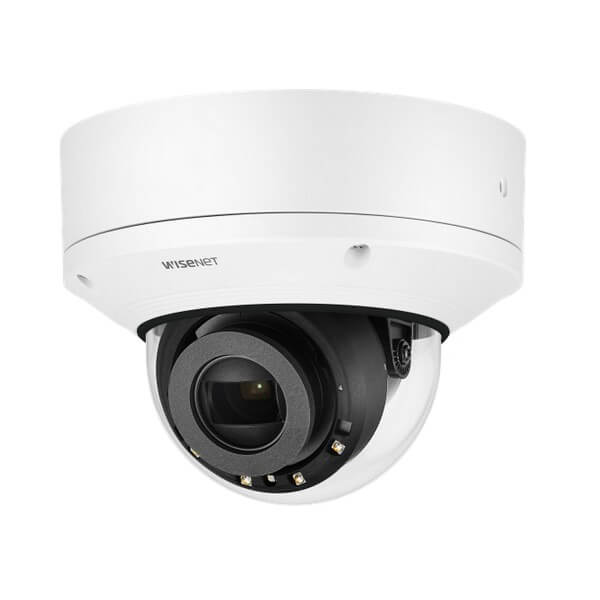

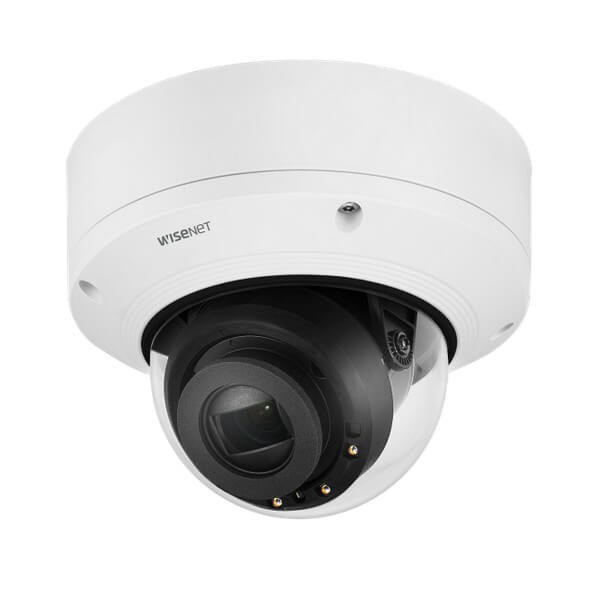

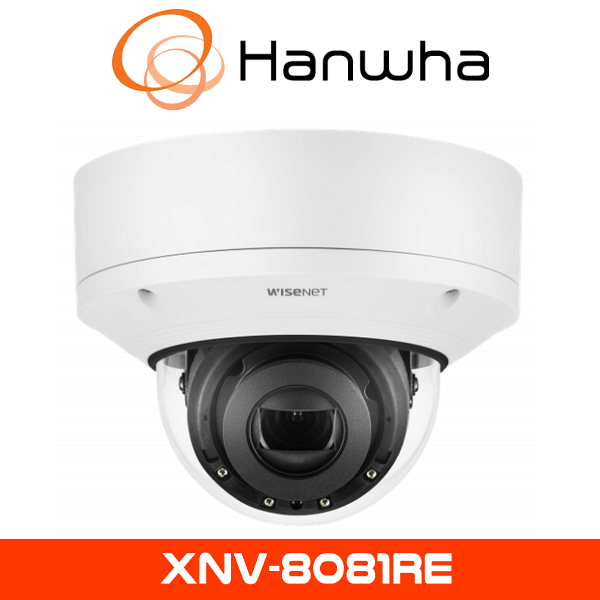

DESCRIPTION TO Hanwha XNV-8081RE CCTV Camera
The Hanwha XNV-8081RE in Dubai, Abu Dhabi, and throughout the UAE. This robust dome camera features a 5MP high-resolution sensor and integrated IR LEDs that ensure exceptional image clarity both day and night. Equipped with WiseStream II technology, the Hanwha XNV-8081RE optimizes bandwidth and storage usage without compromising image quality.
High-Quality Imaging
The Hanwha XNV-8081RE features an impressive 5MP imaging sensor, capturing crystal-clear footage essential for accurate identification and detailed monitoring. Hanwha’s WiseStream II compression technology ensures efficient data management, dramatically reducing storage requirements and network bandwidth usage while maintaining superior video quality.
Durable and Weather-Resistant
Built to withstand harsh environments, the Hanwha XNV-8081RE CCTV camera includes a rugged IK10-rated vandal-proof casing, providing high resilience against physical impacts. Additionally, the IP67 weatherproof rating guarantees consistent performance even in extreme temperatures, dust, rain, or humidity, making it ideal for both indoor and outdoor installations.
Advanced Night Vision Capabilities
Integrated IR illumination in the Hanwha XNV-8081RE delivers superior night vision, clearly capturing scenes up to 50 meters away even in complete darkness. This feature is crucial for securing facilities around-the-clock, ensuring no detail goes unnoticed irrespective of lighting conditions.
Intelligent Video Analytics
Hanwha’s advanced analytics, integrated within the Hanwha XNV-8081RE, enhance security effectiveness by automatically identifying suspicious activities such as unauthorized entry, loitering, or facial recognition events. These smart capabilities significantly minimize false alarms, streamline security operations, and enable swift responses to potential security incidents.
Versatile Security Applications
The Hanwha XNV-8081RE Ideal for deployment in diverse environments such as retail spaces, educational campuses, government buildings, and corporate facilities, the XNV-8081RE offers unmatched flexibility and reliability, providing robust security in a variety of challenging scenarios.
• PoE Extender (Main cam, extension cam)
• PoE out :Max. 12.95W@80m
• 3.9~9.4mm(2.4x) motorized varifocal
• 0.07Lux@F1.3 (Color), 0Lux (B/W, IR LED on)
• IR viewable length 50m
• Day & Night (ICR), WDR (120dB)
• Hallway View, WiseStream II Support
• Video & audio analytics, Audio playback
• Business Intelligence(People counting, Queue management, Heatmap)
• DIS and shock detection with built-in gyro sensor
• Modular structure, PoE+ in/ PoE out
• IP66/IP67/IP6K9K, IK10+, NEMA4X
Specification
| Video | |
| Imaging Device | 1/1.8″ 6MP CMOS |
| Resolution | 2560×1920, 2560×1440, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.07Lux(F1.3, 1/30sec) BW: 0Lux(IR LED) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.9~9.4mm(2.4x) motorized varifocal |
| Max. Aperture Ratio | F1.3 |
| Angular Field of View | H: 92.1°(Wide)~38.7°(Tele), V: 67.2°(Wide)~29.0°(Tele), D: 119.9°(Wide)~48.6°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~360° / -45°~85° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, rectangular zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection |
| Business Intelligence | People counting, Queue management, Heatmap |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback |
| Audio In | Selectable(mic in/line in), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max. output level: 1Vrms |
| IR Viewable Length | 50m(164.04ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH * Start up should be done at above -35°C |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66/IP67/IP6K9K, IK10+, NEMA4X |
| Input Voltage | PoE+(IEEE802.3at, Class4) |
| Power Consumption | Max 25.5 W (Main CAM + Extension CAM) Typical 10.2W (Main CAM) * PoE Out: Max 12.95W at 80meters using CAT5/5E cable |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø180x125mm(7.09×4.92″), 1.75kg(3.86 lb) |
| Compatible Conduit hole / Gangbox | 3/4″ |
| Hanging Mount (Dome) | SBP-187HM |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 49.4m(162.07ft) / Tele: 146m(479.00ft) |
| Observe (63PPM/ 19PPF) | Wide: 19.7m(64.63ft) / Tele: 58m(190.29ft) |
| Recognize (125PPM/ 38PPF) | Wide: 9.9m(32.48ft) / Tele: 29m(95.14ft) |
| Identify (250PPM/ 76PPF) | Wide: 4.9m(16.08.22ft) / Tele: 15m(49.21ft) |
