DESCRIPTION TO Hanwha XNV-C7083R CCTV Camera

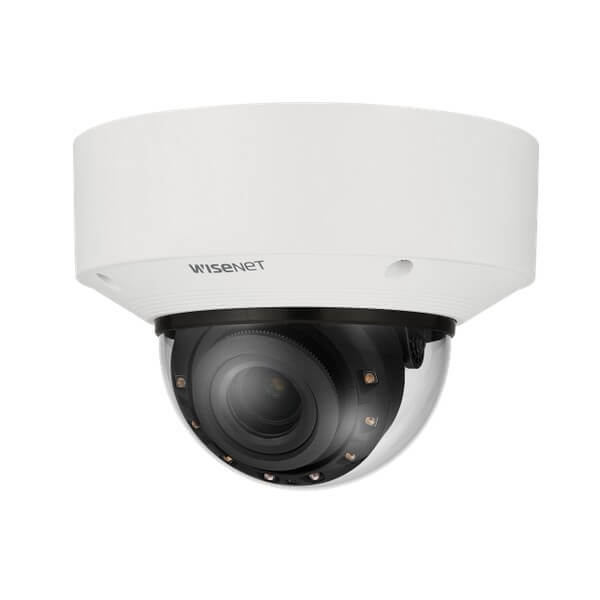

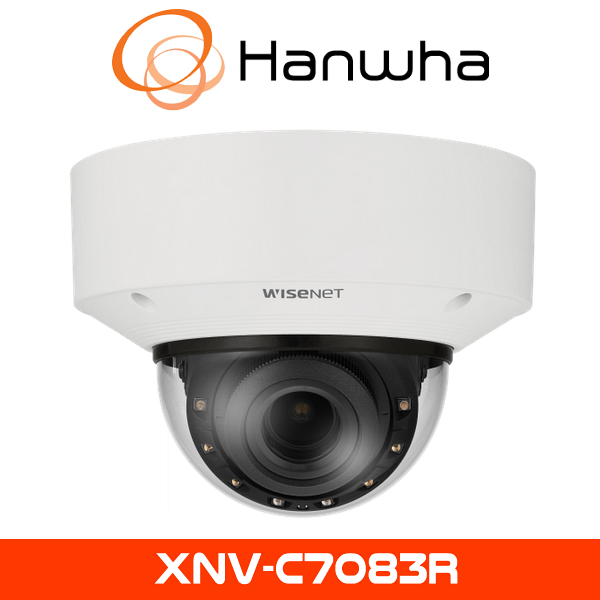

The Hanwha XNV-C7083R CCTV Camera, previously known as Samsung CCTV, delivers exceptional indoor and outdoor surveillance with a powerful 4MP resolution. This vandal-proof dome camera combines rugged durability with advanced imaging technology, making it ideal for monitoring sensitive locations such as banks, schools, retail stores, and public spaces.
Crisp and Clear 4MP Resolution
The Hanwha XNV-C7083R CCTV Camera is equipped with a high-performance 4MP sensor, providing detailed, clear images essential for effective monitoring and security enforcement.
Superior Night Vision
The XNV-C7083R ensures clear night-time surveillance up to 30 meters. The camera’s adaptive IR technology optimizes image clarity and reduces distortion even in complete darkness.
Rugged and Weather-Proof
The XNV-C7083R CCTV Camera boasts IP67 and IK10 ratings, offering outstanding durability against harsh weather and vandalism. This ruggedness ensures continuous operation in extreme temperatures, humidity, and physical impacts.
Intelligent Video Analytics
Hanwha CCTV incorporates intelligent video analytics including face detection, intrusion detection, loitering alerts, and line-crossing detection. These advanced features enhance security management by identifying and alerting personnel to potential threats instantly.
Easy Installation with PoE The camera’s Power over Ethernet (PoE) capability significantly simplifies installation, reduces the need for additional cabling, and lowers overall installation costs.
Suitable for Diverse Surveillance Needs Ideal for multiple environments, the Hanwha XNV-C7083R excels in:
- Financial institutions
- Educational facilities
- Retail stores
- Public transportation hubs
- Healthcare facilities
- Government buildings
Recommended Companion Products Complement the Hanwha XNV-C7083R CCTV Camera with:
- Hanwha NVR systems for comprehensive monitoring
- Hanwha XND-C7083RV Indoor Dome Camera
- Hanwha management software for enhanced security integration
Key Features:
• 4MP resolution
• 2.8~10mm (3.6x) motorized varifocal
• Color: 0.038 Lux (F1.4, 1/30sec, 30IRE), 0 Lux (IR LED on)
• Maximum 60 fps (H.265/H.264)
• WiseIR: IR viewable length 40 m (131.23 ft)
• Day & Night (ICR), extremeWDR (120 dB)
• Hard-coated dome bubble
• WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine)
• Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle – car, truck, bus, bicycle, motorcycle/License plate),
IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
• Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
Audio detection, Sound classification, Shock detection, Appear/Disappear
• IP66, IP67, NEMA4X, IK10
• 2.8~10mm (3.6x) motorized varifocal
• Color: 0.038 Lux (F1.4, 1/30sec, 30IRE), 0 Lux (IR LED on)
• Maximum 60 fps (H.265/H.264)
• WiseIR: IR viewable length 40 m (131.23 ft)
• Day & Night (ICR), extremeWDR (120 dB)
• Hard-coated dome bubble
• WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine)
• Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle – car, truck, bus, bicycle, motorcycle/License plate),
IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
• Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
Audio detection, Sound classification, Shock detection, Appear/Disappear
• IP66, IP67, NEMA4X, IK10
SPECIFICATON:
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 2592×1520, 2560×1440, 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)(WDR off) Max. 30fps/25fps(60Hz/50Hz)(WDR on) MJPEG: Max. 30fps(@4MP Max. 5fps) |
| Min. Illumination | Color: 0.038Lux(F1.4, 1/30sec, 30IRE) BW: 0.0038Lux(F1.4, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fpsColor: 0.076Lux(F1.4, 1/60sec, 30IRE) BW: 0.0076Lux(F1.4, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps |
| Video Out | USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8~10mm(3.6x) motorized varifocal |
| Max. Aperture Ratio | F1.4(Wide)~F3.0(Tele) |
| Angular Field of View | H: 110°(Wide)~30°(Tele) V: 61°(Wide)~17°(Tele) D: 132°(Wide)~35°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus, Manual |
| Lens Type | DC auto iris with hall sensor(IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~75° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | extremeWDR(120dB) |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point Quadrangle zones – Color: Gray/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Off / Max Gain / Manual |
| White Balance | ATW / NarrowATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker(2~1/12,000sec) prefer shutter control(Based on AI engine) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Classified object type: Person/Face/Vehicle(Type: car/bus/truck/motorcycle/bicycle)/License plate Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine – Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection Analytics events – Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) |
| Business Intelligence | Based on AI engine: People/Vehicle counting, Queue management, Heatmap |
| Alarm I/O | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred – File upload(image): e-mail/FTP/SFTP – File upload(video clip): FTP/SFTP – Notification: e-mail – Recording: SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover: PTZ preset, send message by HTTP/HTTPS/TCP – Audio clip playback – MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| IR Viewable Length | WiseIR 40m(131.23ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles, 3 virtual channel support) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authenticaton, Prevent brute-force attacks |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | HTPM(Hanwha trusted platform module), SDcard partition encrypt |
| Security Certificate | CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2) |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot Max. 512GB |
| Memory | 2GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F~+131°F) * Start up should be done at above -20°C 0~100%RH(condensing) Humidity control with AIR vent |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~90% RH |
| Certification | IP66/IP67, NEMA4X, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 12.95W, typical 10.8W 12VDC: Max 12.5W, typical 10.0W |
| Mechanical | |
| Color / Material | White / Aluminum Bubble: Hard-coated dome |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø160x118mm(ø6.30×4.65″), 1450g(3.20 lb) |
| Compatible Conduit hole / Gangbox | 12.7mm(1/2″)(M20) single, double, 4″ octagon, 4″ square |
| Hanging Mount (Dome) | SBP-160HMW1 |
| Backbox | SBV-180BW/WW |
| Ceiling Mount (Assy) | SBP-150CMI/300CMI, SBP-300CMW1/900CMW, SBP-300CMTW, SBP-300CMTS |
| Wall Mount | SBP-300WMW/WMW1, SBP-390WMW2, SBP-160WMW1 |
| Pole Mount | SBD-180PMW, SBP-300PMW2 |
| In-ceiling Mount | SHD-1600FPW/FW |
| Parapet Mount | SBP-300LMW, SBP-156LMW1 |
| Corner Mount | SBP-300KMW1 |
| Cabinet | SBP-300NBW |
| Other Compatible Models | SPB-VAN88W |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA – EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10 NEMA 250 type 4X |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 36.3m(119.09ft) / Tele: 193.5m(634.74ft) |
| Observe (63PPM/ 19PPF) | Wide: 14.5m(47.64ft) / Tele: 77.4m(253.90ft) |
| Recognize (125PPM/ 38PPF) | Wide: 7.3m(23.82ft) / Tele: 38.7m(126.95ft) |
| Identify (250PPM/ 76PPF) | Wide: 3.6m(11.91ft) / Tele: 19.3m(63.47ft) |
