The Huawei AP661 Dubai is a cutting-edge wireless access point (AP) engineered to meet the demands of the latest Wi-Fi 6 standard.

Description

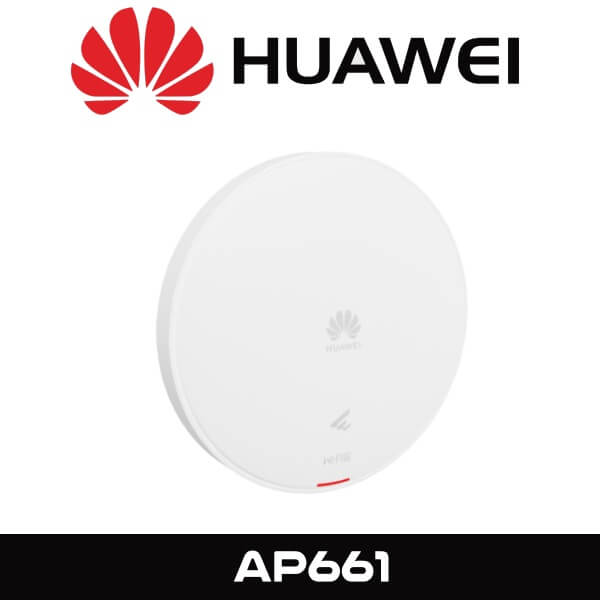

Huawei AP661 Access Point Dubai

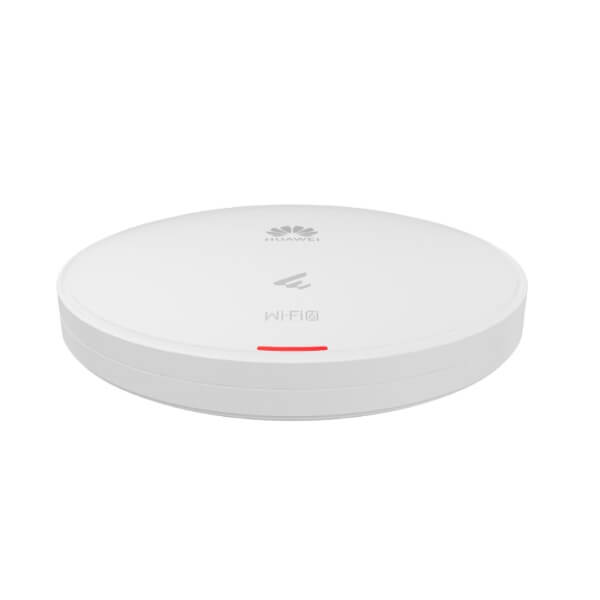

The Huawei AP661 Dubai is a cutting-edge wireless access point (AP) engineered to meet the demands of the latest Wi-Fi 6 standard. This advanced AP excels in delivering high-performance wireless services by operating across three separate frequency bands simultaneously: the 2.4 GHz band with 2×2 MIMO, the 5 GHz band with 2×2 MIMO, and an additional 5 GHz band with 4×4 MIMO. Equipped with built-in smart antennas, the Huawei AP661 Dubai ensures that Wi-Fi signals remain strong and consistent, greatly enhancing the overall wireless network experience. This exceptional performance makes it an ideal solution for environments with a high concentration of users, such as mobile offices, educational institutions, and large venues like stadiums and convention centers.

Features

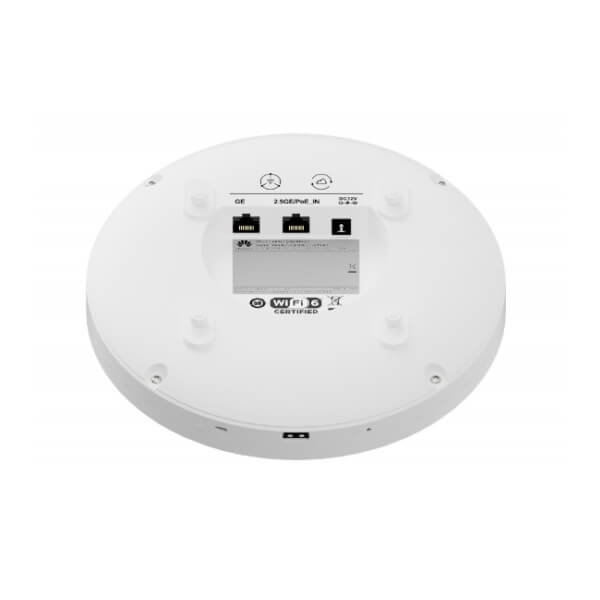

  • 1 x 2.5GE electrical port + 1 x GE electrical port
  • Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
  • USB port for IoT expansion (such as ZigBee and RFID)
  • Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
  • Working modes: Fit, Fat, and cloud management

Technical Specifications

Description AP661(11ax indoor,2+2+4 tri bands,smart antenna,USB,BLE)
Part Number 02355VFC
Model AP661
First supported version V200R023C10
Installation Type
  • Wall
  • Ceiling
  • T-Rail
Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.)
Weight without packaging [kg(lb)] 1.08 kg (2.38 lb)
Storage NAND Flash 512 MB
Console port BLE console
Maximum power consumption [W] 21.2 (excluding USB), 802.3at/af power supply
Power supply mode
  • DC adapter
  • PoE
Rated input voltage [V] 12 V
Input voltage range [V]
  • DC: 12 V ± 10%
  • PoE: 802.3at/af
Service port surge protection PoE port:

  • Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B
  • Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device
  • 2.5GE (RJ45) x 1, 100M/1000M/2.5G auto-sensing
  • GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa – 106kPa ETSI 300 019-2-3
Ground floating ground
USB USB 2.0
BLE BLE5.2
Radio number 3
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams
  • Radio 0 (2.4 GHz): 2×2
  • Radio 1 (5 GHz): 2×2 (high frequency band)
  • Radio 2 (5 GHz): 4×4 (low frequency band)
Wi-Fi standard
  • 2.4 GHz: 802.11b/g/n/ax
  • 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain 2.4G:

  • 4 dBi/chain (peak value)
  • 2 dBi (combined gain)

5G:

  • 5 dBi/chain (peak value)
  • 3 dBi (combined gain)
  • BLE: 4 dBi
Maximum transmit power 2.4 GHz:

  • 22 dBm/chain
  • 25 dBm (combined power)

5 GHz (2×2):

  • 20 dBm/chain
  • 23 dBm (combined power)

5 GHz (4×4):

  • 20 dBm/chain
  • 26 dBm (combined power)
  • BLE: < 10 dBm
Singal radio transmit power [dBm] 2.4G: -10 dBm to 22 dBm/chain

5G: -10 dBm to 20 dBm/chain

MTBF [year] 96 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3at power supply description No function is limited.
802.3af power supply description
  • Wi-Fi: 2.4 GHz (2×2) + 5 GHz (1×1, high band) + 5 GHz (1×1, low band). The maximum combined power is adjusted to 21 dBm (2.4 GHz radio) and 18 dBm (5 GHz radio).
  • Wired network port: The 2.5GE/PoE_IN electrical port is used as a GE port, and the GE electrical port is unavailable.
  • Other ports: The USB port is unavailable.
DC power supply description No function is limited.
