Description

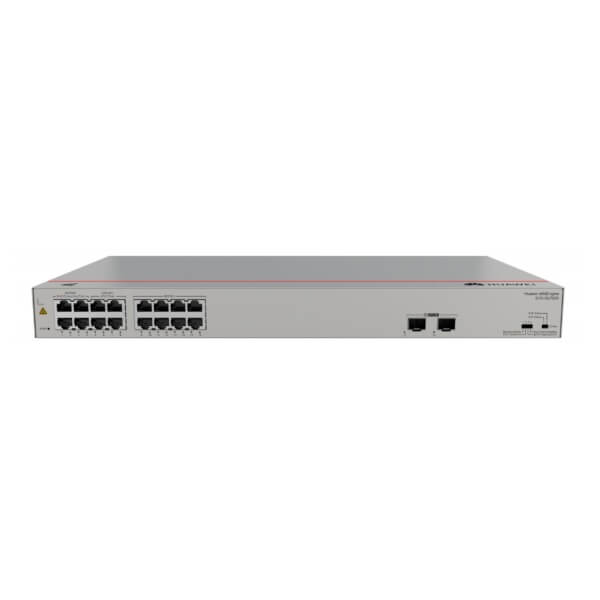

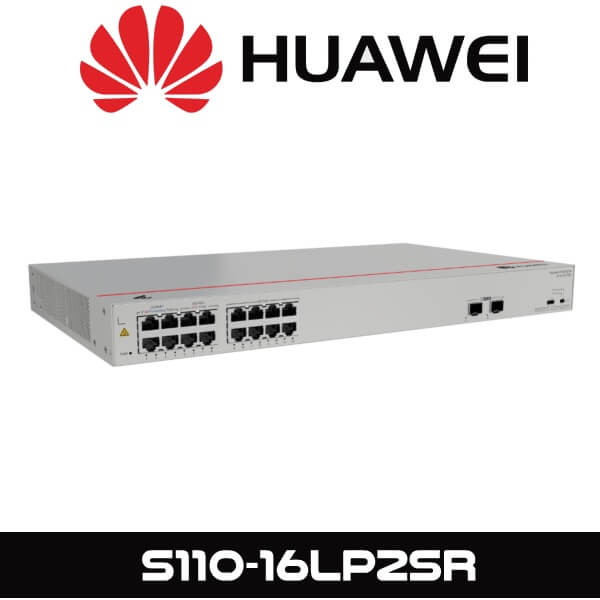

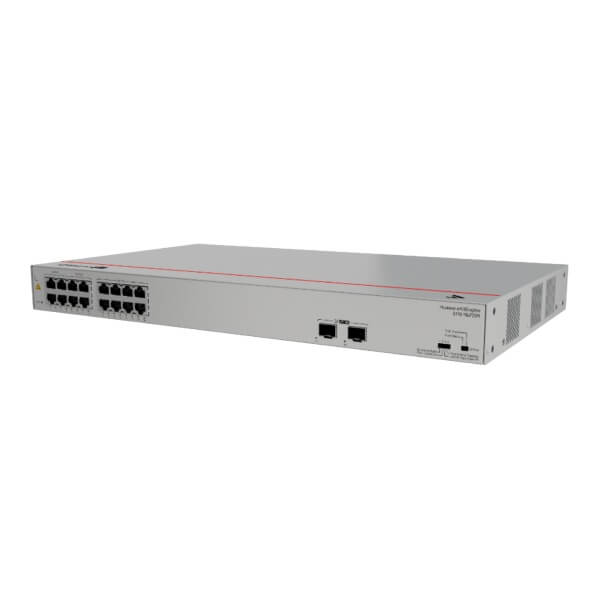

Huawei S110-16LP2SR Network Switch Dubai
The Huawei S110-16LP2SR Dubai fixed Ethernet switches are thoughtfully engineered to seamlessly integrate both access and transmission functionalities, making them an ideal choice for enterprise networks. These switches are meticulously crafted to ensure reliable access and deliver superior transmission quality, meeting the rigorous demands of enterprise services. Built on a unified hardware platform, the Huawei S110-16LP2SR Dubai switches boast a comprehensive system design that includes the chassis, power module, fan module, and Switch Control Unit (SCU), ensuring robust performance and consistency.
Classified as unmanaged switches, the Huawei S110-16LP2SR Dubai models are designed without support for web-based management interfaces or Simple Network Management Protocol (SNMP) for remote administration. This deliberate design choice underscores their simplicity and user-friendliness, making them an excellent option for network environments that do not require complex management features. By concentrating on these fundamental aspects, the Huawei S110-16LP2SR Dubai switches provide a practical, efficient, and reliable solution tailored to enterprises seeking straightforward and dependable network infrastructure. These switches are particularly well-suited for businesses that prioritize ease of installation and operation, offering a hassle-free experience for users who do not need or want advanced management capabilities. The focus on essential functionalities ensures that the Huawei S110-16LP2SR Dubai switches deliver consistent performance while simplifying the network setup process, making them a preferred choice for enterprises looking for a streamlined and effective networking solution.
Technical Specifications
| Description | S110-16LP2SR (16*10/100/1000BASE-T ports, 2*GE SFP ports, PoE+, AC power) |
| Part Number | 98012197 |
| Model | S110-16LP2SR |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 260.0 mm (1.72 in. x 17.40 in. x 10.24 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 267.0 mm (1.72 in. x 17.40 in. x 10.51 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 555.0 mm x 400.0 mm (3.54 in. x 21.85 in. x 15.75 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 3.0 kg (6.61 lb) |
| Weight with packaging [kg(lb)] | 3.7 kg (8.16 lb) |
| Typical power consumption [W] | 22.0 W |
| Typical heat dissipation [BTU/hour] | 75.07 BTU/hour |
| Maximum power consumption [W] | Without PoE: 22.0 W
Full PoE load: 160.0 W (PoE: 124 W) |
| Maximum heat dissipation [BTU/hour] | Without PoE: 75.07
Full PoE load: 545.94 |
| Static power consumption [W] | 12.0 W |
| MTBF [years] | 57.77 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 2 x GE SFP ports |
| Downlink ports | 16 x 10/100/1000BASE-T ports (124 W PoE+) |
| Working mode |
|
| MAC address entry | 8K |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz |
| Maximum input current [A] | 3 A |
| Memory | – |
| Flash memory | – |
| Console port | Not supported |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Supported |
| Certification |
|
