Description

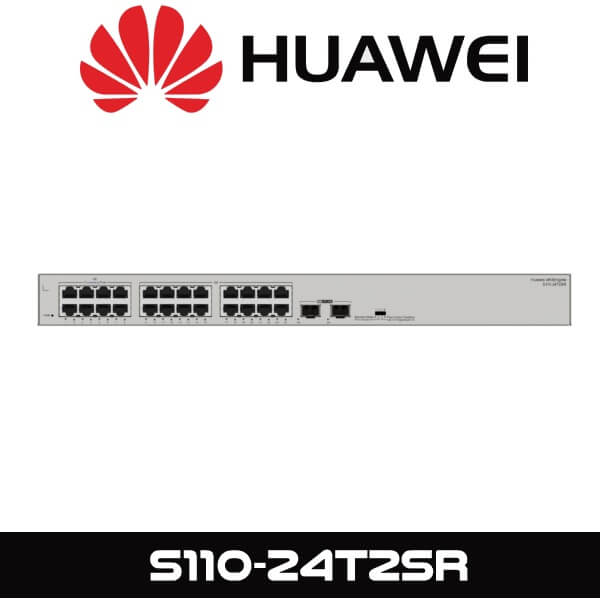

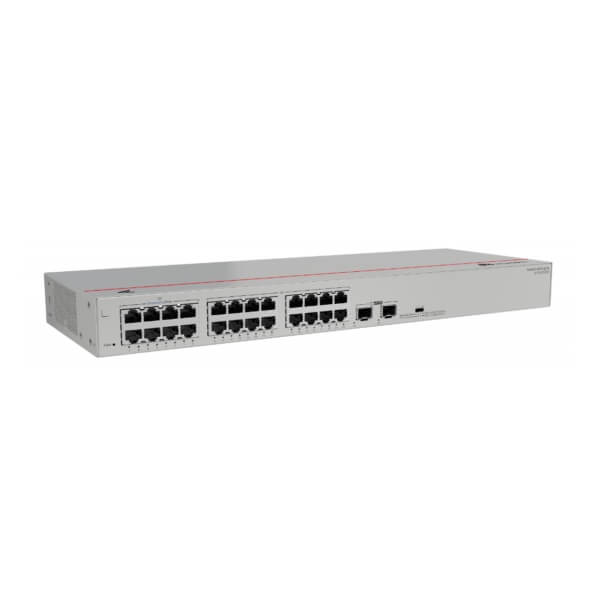

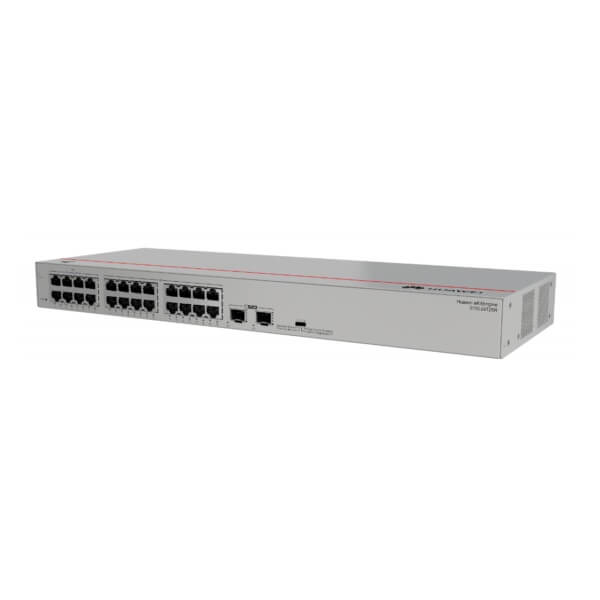

Huawei S110-24T2SR Network Switch Dubai
The Huawei S110-24T2SR Dubai fixed Ethernet switches are expertly designed to seamlessly integrate both access and transmission functionalities within enterprise networks. These switches are engineered to deliver not only reliable access but also exceptional transmission quality, making them an outstanding choice for businesses in search of efficient and dependable network solutions. Built upon a unified hardware platform, these switches include a comprehensive system composed of the chassis, power module, fan module, and Switch Control Unit (SCU), ensuring robust performance across various network environments.
As unmanaged switches, the Huawei S110-24T2SR Dubai models are purposefully designed to forgo web-based management interfaces or Simple Network Management Protocol (SNMP) for remote administration. This design choice places a strong emphasis on simplicity and ease of use, making these switches particularly well-suited for straightforward network setups where complex management features are unnecessary. By focusing on practicality and efficiency, these switches offer a dependable solution for enterprises that prioritize ease of installation and operation. They are perfect for users who require a hassle-free, reliable, and straightforward network experience without the need for advanced management capabilities, providing modern businesses with a network solution that is both effective and user-friendly.
Technical Specifications
| Description | S110-24T2SR (24*10/100/1000BASE-T ports, 2*GE SFP ports, AC power) |
| Part Number | 98012196 |
| Model | S110-24T2SR |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 160.0 mm (1.72 in. x 17.40 in. x 6.30 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 167.0 mm (1.72 in. x 17.40 in. x 6.57 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 1.8 kg (3.97 lb) |
| Weight with packaging [kg(lb)] | 2.3 kg (5.07 lb) |
| Typical power consumption [W] | 16 W |
| Typical heat dissipation [BTU/hour] | 54.6 BTU/hour |
| Maximum power consumption [W] | 17 W |
| Maximum heat dissipation [BTU/hour] | 58 BTU/hour |
| Static power consumption | 5 |
| MTBF [years] | 76.10 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Working mode |
|
| MAC address entry | 8K |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| Memory | – |
| Flash memory | – |
| Console port | Not supported |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±1 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Not supported |
| Certification |
|
