Description

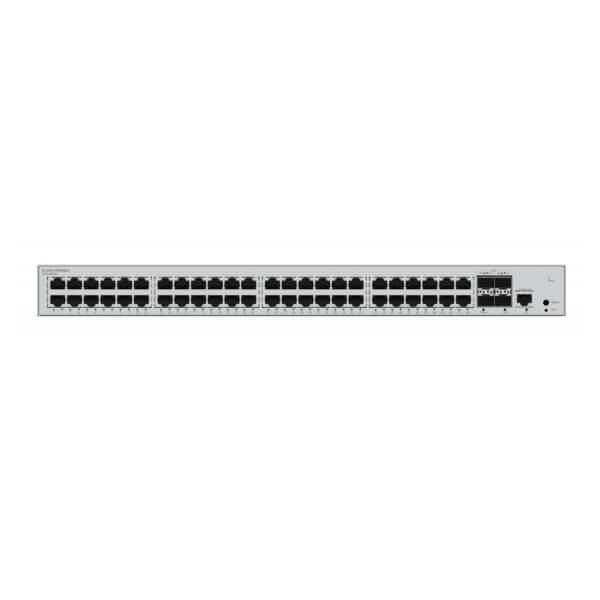

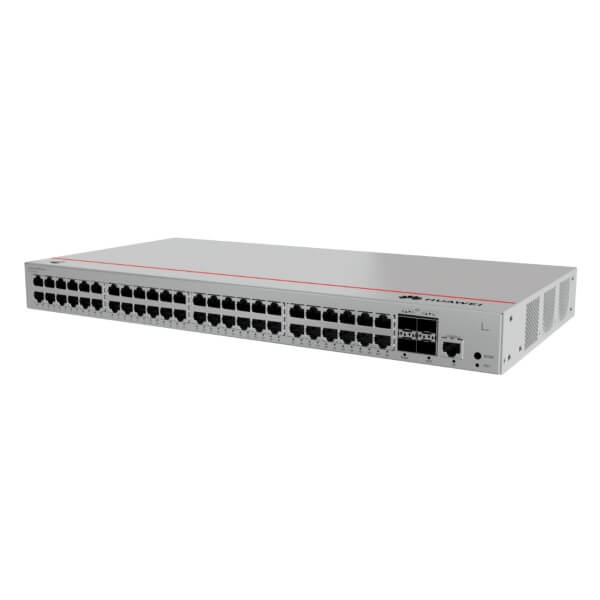

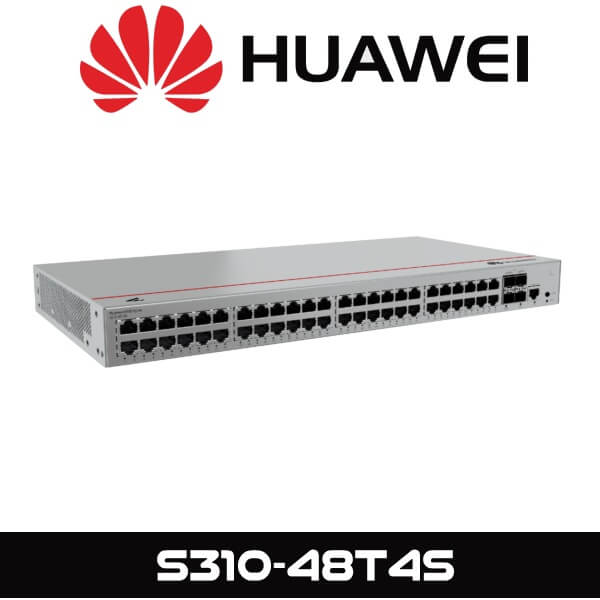

Huawei S310-48T4S Network Switch Dubai
The Huawei S310-48T4S Dubai fixed Ethernet switches are expertly engineered to seamlessly integrate both access and transmission functionalities, ensuring not only reliable access and aggregation but also superior service transmission across enterprise networks. These switches are constructed on a solid and unified hardware platform, comprising essential components such as the chassis, power module, fan module, and Switch Control Unit (SCU). Specifically designed as unmanaged switches, the Huawei S310-48T4S Dubai models focus on simplicity and user-friendliness by not supporting web-based management interfaces or SNMP-based management, which underscores their emphasis on ease of use, straightforward deployment, and minimal configuration and maintenance.
These switches offer a seamless and hassle-free experience for network administrators, making them an excellent choice for environments where reliability, ease of use, and efficient network operations are paramount. By enabling dependable service transmission, access, and aggregation, the Huawei S310-48T4S Dubai switches allow enterprises to maintain efficient and stable network operations without the need for complex management tools. This makes them particularly suitable for businesses that prioritize simplicity, reliability, and efficiency in their network infrastructure.
Moreover, the unified hardware platform, coupled with the use of high-quality components, ensures the durability and longevity of these switches, significantly reducing the frequency of replacements or upgrades. The straightforward deployment process, along with the minimal maintenance requirements, saves valuable time and resources for IT departments, enabling them to focus on other critical tasks. As a result, the Huawei S310-48T4S Dubai switches stand out as an ideal solution for businesses seeking a straightforward, reliable, and efficient network infrastructure that meets their operational needs with minimal hassle.
Technical Specifications
| Description | S310-48T4S (48*10/100/1000BASE-T ports, 4*GE SFP ports, AC power) |
| Part Number | 98012203 |
| Model | S310-48T4S |
| First supported version | V600R022C10 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 2.71 kg (5.97 lb) |
| Weight with packaging [kg(lb)] | 3.59 kg (7.91 lb) |
| Typical power consumption [W] | 44.9 W |
| Typical heat dissipation [BTU/hour] | 153.2 BTU/hour |
| Maximum power consumption [W] | 52.05 W |
| Maximum heat dissipation [BTU/hour] | 177.6 BTU/hour |
| Static power consumption [W] | 27.55 W |
| MTBF [years] | 40.61 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 46.6 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 34.6 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 4 x GE SFP ports |
| Downlink ports | 48 x 10/100/1000BASE-T ports |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Devices cannot start when the temperature is lower than 0°C (32°F). The operating temperature ranges from –5°C (23°F) to +45°C (113°F) when optical modules with transmission distances greater than or equal to 60 km are used. The device does not support dying gasp when the ambient temperature is higher than 40°C (104°F). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 1.6 A |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and air exhaust from right |
| PoE | Not supported |
| Certification |
|
