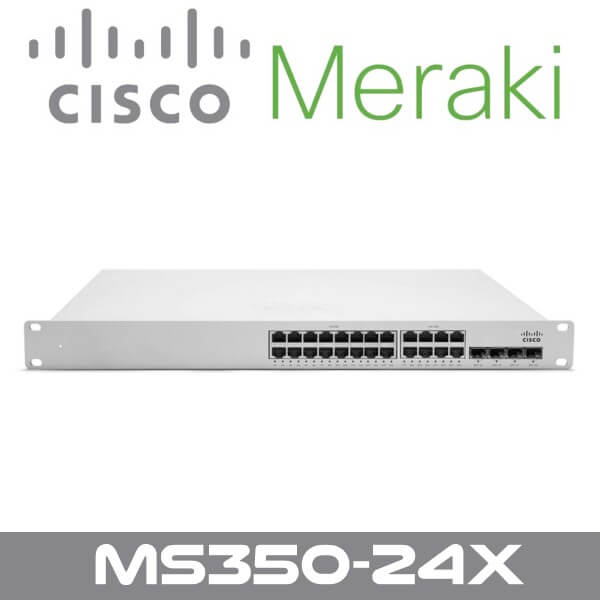

Meraki MS350-24X Network Switch Dubai
Meraki MS350-24X Dubai is the Meraki MS350-24 L3 Stacking Cloud-Managed 24x GigE mGig UPoE Switch. The Cisco Meraki MS350 series switches provide reliable and high bandwidth access switching ideal for deploying in campus networks. With high speed stacking capabilities and 10G SFP+ uplinks built in on every model, redundancy and performance are guaranteed. This family also supports options for multigigabit, UPoE, redundant, field-replaceable power supplies for mission critical networks.
Features:
Built-In Multi-Site Cloud Management
The Meraki MS350-24X Dubai is the industry’s first cloud managed switch, combining the benefits of cloud based centralized management with a powerful, reliable access platform. Cloud management has a number of benefits that make it easier to build networks large and small:
- Single pane of glass management of distributed switch deployments, wireless APs, and firewalls across multiple sites through the browser.
- Virtual stacking: manage up to tens of thousands of ports from a single pane of glass.
- Layer 7 OS, client, and hostname fingerprinting.
- Powerful Live Tools such as cable test to isolate physical layer issues.
- E-mail and SMS (text) alerts upon power loss, downtime, or configuration changes.
- Role-based administration and automatic, scheduled firmware upgrades over the web.
- Regular feature updates and enhancements delivered on demand from the Meraki cloud.
- No staging deployments
With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.
Converged Voice, Video and Data Environments
The Meraki MS350-24X Dubai is designed to unify data, voice, and video onto a single IP backbone. All Cisco Meraki switches support rich quality-of-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization.
Technical Specs
Miscellaneous
| Rack Mounting Kit | Included |
| MTBF | 321,515 hours |
| Compliant Standards | CSA, C-Tick, IC, RoHS |
Dimensions & Weight
| Width | 19.1 in |
| Depth | 20.3 in |
| Height | 1.7 in |
| Weight | 14.48 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty – replacement – lifetime – response time: next day |
| Service & Support Details | Limited warranty – replacement – lifetime – response time: next day |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 – 95% (non-condensing) |
General
| Device Type | Switch – 24 ports – L3 – managed – stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (UPOE) + 4 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | UPOE |
| PoE Budget | 740 W |
| Performance |
|
| Capacity |
|
| Jumbo Frame Support | 9600 bytes |
| Max Units In A Stack | 8 |
| Routing Protocol | OSPFv2, static IP routing |
| Remote Management Protocol | SNMP 2c |
| Authentication Method | RADIUS |
| Features |
|
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at |
Expansion / Connectivity
| Interfaces |
|
Power
| Power Device | Internal power supply – hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Power Provided | 1025 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power
Consumption Operational |
885 Watt |
