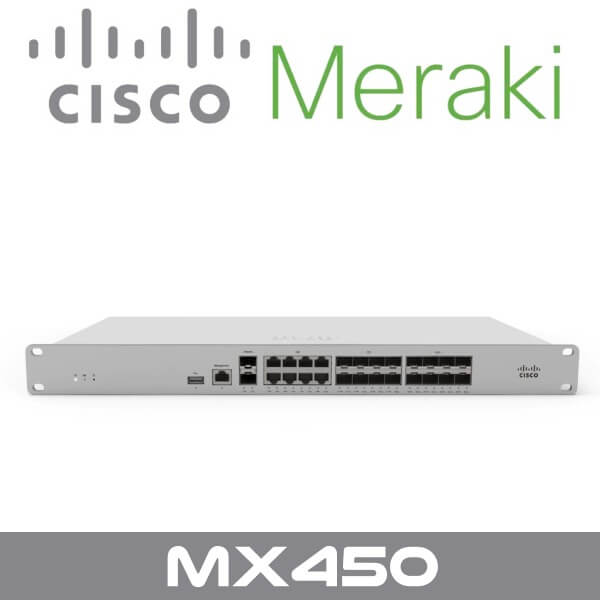

Meraki MX450 Next Generation Firewall Dubai
The Meraki MX450 Dubai is an integrated router, next-generation firewall, traffic shaper, and Internet gateway that is centrally managed over the web. The Meraki MX450 Dubai offers an extensive feature set, yet is incredibly easy to deploy and manage. Intuitive web-based administration eliminates specialized training and dedicated staff, and cloud-based centralized management provides seamless multi-site networks, automatic firmware upgrades, and much more.
Features:
The First Cloud Managed Networking and Security Platform
The Meraki MX450 Dubai is a complete networking and security solution, designed to make distributed networks fast, secure, and easy to manage. The MX is managed entirely through Cisco Meraki’s web based dashboard. Designed with intuitive controls for IT generalists, the MX requires no training or specialized staff. The MX will even self-provision, allowing for remote branch deployments without on site IT.
Powerful Hardware Platform
The Meraki MX450 Dubai hardware platform is purpose-built for cloud management, with CPU and memory resources designed to provide application and content-aware security at the edge. The MX’s robust platform enables advanced features like layer 7 application traffic shaping, content filtering, antivirus/anti-phishing, and site-to-site VPN, while providing the throughput and capacity for modern, high-density networks.
Easy to Manage Without Training or On-Site Networking Expertise
The Cisco Meraki MX450 Dubai was designed for ease of use, even in branches without on-site IT. An intuitive interface, contextual help, and real-time support from the cloud eliminate specialized training. To deploy the Meraki MX450 Dubai in remote locations, simply connect the MX to the Internet, and it will securely self-provision from the cloud. Firmware upgrades, security patches, and signature updates are all delivered seamlessly from the cloud, ensuring that the Meraki MX450 Dubai is always up to date. Integrating broad security and networking features into a single intuitive device drastically reduces complexity in the branch.
Connects and Secures Branches from the Cloud
Cisco Meraki’s cloud management platform makes it easy to deploy secure, interconnected, centrally managed multi-site networks. Add new sites in seconds with auto-configuring VPN. Centrally manage user, content and application-aware firewall policies across your entire network.
Meraki MX450 Technical Specifications
General
- Recommended Use Cases : Campus or VPN concentrator
- Recommended Clients : 10,000
- Stateful Firewall Throughput : 6 Gbps
- Advanced Security Throughput : 4 Gbps
- Maximum VPN Throughput : 2 Gbps
- Maximum Concurrent VPN Tunnels : 5,000
- WAN Interfaces ( Dedicated) : 2 x 10GbE SFP+ 1 x USB (cellular failover)
- LAN Interfaces : 8 x GbE (RJ45), 8 x GbE (SFP), 8 x 10GbE (SFP+)
- Web Caching : 128GB (SSD)
- Mounting : 1U rack
- Dimensions : 19” x 17.3 “ x 1.75” (483 mm x 440 mm x 44 mm)
- Weight : 16 lb (7.3kg)
- Power Supply : Modular 100-220V 50/60Hz AC 2 x 250WAC PSU
- Power Load : (idle/max)105W / 190W
- Operating Temperature : 32°F to 104°F (0°C to 40°C)
- Humidity : 5% to 95%
Management
- Managed via the web using the Cisco Meraki dashboard
- Single-pane-of-glass into managing wired and wireless networks
- Zero-touch remote deployment (no staging needed)
- Automatic firmware upgrades and security patches
- Templates based multi-network management
- Org-level two-factor authentication and single sign-on
- Role-based administration with change logging and alerts
Monitoring and Reporting
- Throughput, connectivity monitoring and email alerts
- Detailed historical per-port and per-client usage statistics
- Application usage statistics
- Org-level change logs for compliance and change management
- VPN tunnel and latency monitoring
- Network asset discovery and user identification
- Periodic emails with key utilisation metrics
- Device performance and utilisation reporting
- Netflow support
- Syslog integration
Remote Diagnostics
- Live remote packet capture
- Real-time diagnostic and troubleshooting tools
- Aggregated event logs with instant search
Network and Firewall Services
- Stateful firewall, 1:1 NAT, DMZ
- Identity-based policies
- Auto VPN: Automated site-to-site (IPsec) VPN, for hub-and-spoke or mesh topologies
- Client (IPsec L2TP) VPN
- Multiple WAN IP, PPPoE, NAT
- VLAN support and DHCP services
- Static routing
- User and device quarantine
WAN Performance Management
- Web caching (available on the MX84, MX100, MX250, MX450)
- WAN link aggregation
- Automatic Layer 3 failover (including VPN connections)
- 3G / 4G USB modem failover or single-uplink
- Application level (Layer 7) traffic analysis and shaping
- Ability to choose WAN uplink based on traffic type
- SD-WAN: Dual active VPN with policy-based routing and dynamic path selection
- CAT 6 LTE modem for failover or single-uplink1
Advanced Security Services
- Content filtering (Webroot BrightCloud CIPA compliant URL database)
- Web search filtering (including Google / Bing SafeSearch)
- YouTube for Schools
- Intrusion-prevention sensor (Cisco SNORT® based)
- Advanced Malware Protection (AMP)
- AMP Threat Grid
- Geography-based firewall rules (MaxMind Geo-IP database)
Integrated Cellular
- LTE bands : 2, 4, 5, 12, 13, 17, and 19 (North America). 1, 3, 5, 7, 8, 20, 26, 28A, 28B, 34, 38, 39, 40, and 41 (Worldwide)
- 300 Mbps CAT 6 LTE
- Additional regulatory information : PTCRB (US), RCM (ANZ, APAC), GCF (EU)
Regulatory
- FCC (US)
- CB (IEC)
- CISPR (Australia/New Zealand)
- PTCRB (US)
- RCM (Australia/New Zealand, Asia Pacific)
- GCF (EU)
Warranty
- Full lifetime hardware warranty with next-day advanced replacement included.
