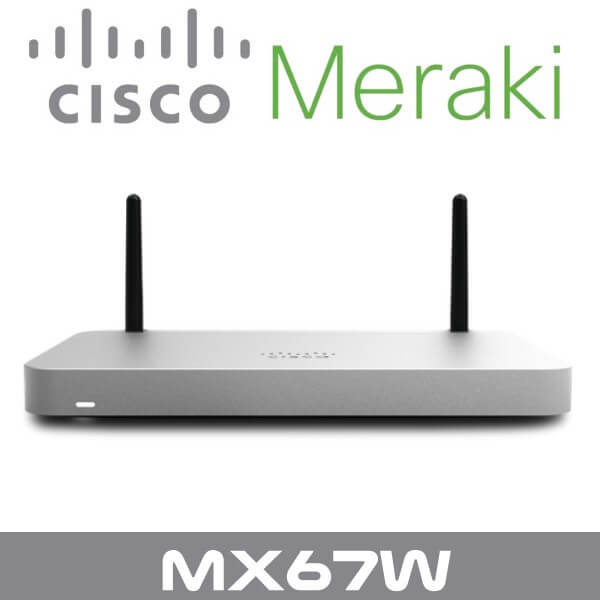

Meraki MX67W Security Appliance Dubai

Meraki MX67W Dubai

The Meraki MX67W Dubai has a comprehensive suite of network services, eliminating the need for multiple appliances. These services include SD-WAN capabilities, application-based firewalling, content filtering, web search filtering, etc.

Description

Meraki MX67W Security Appliance Dubai

The Meraki MX67W Dubai is ideal for organizations considering a Unified Threat Management (UTM) solution, for distributed sites, campuses or datacenter VPN concentration. Since the MX67W is 100% cloud managed, installation and remote management are simple. The Meraki MX67W Dubai has a comprehensive suite of network services, eliminating the need for multiple appliances. These services include SD-WAN capabilities, application-based firewalling, content filtering, web search filtering, SNORT based intrusion detection and prevention, Advanced Malware Protection (AMP), web caching, 4G cellular failover and more. Auto VPN and SD-WAN features are available on our hardware and virtual appliances, configurable in Amazon Web Services or Microsoft Azure.

Key Features

Application-aware traffic control : bandwidth policies for Layer 7 application types (e.g., block YouTube, prioritize Skype, throttle BitTorrent)
Content filtering : CIPA-compliant content filter, safe-search enforcement (Google/Bing), and YouTube for Schools
Intrusion prevention : PCI-compliant IPS sensor using industry-leading SNORT® signature database from
Advanced Malware Protection : file reputation-based protection engine powered by AMP
Identity-based security policies and application management

Technical Specifications

General

Recommended Use Cases : Small branch
Recommended Clients : 50
Stateful Firewall Throughput : 450 Mbps
Advanced Security Throughput : 300 Mbps
Maximum VPN Throughput : 200 Mbps
Maximum Concurrent VPN Tunnels : 50
WAN Interfaces ( Dedicated) : 1 x GbE RJ45 1 x USB (cellular failover1 )
Dual-purpose : 1 x GbE RJ45
LAN Interfaces : Fixed 4 x GbE RJ45
Mounting: Desktop or wall mount
Dimensions (w x d x h) : 9.4”x 5.1” x 1.1” (239mm x 130mm x 27mm)
Weight : 1.74 lb (0.7kg)
Power Supply : 30W DC
Operating Temperature : 32°F to 113°F (0°C to 45°C)
Humidity : 5% to 95%

Management

Managed via the web using the Cisco Meraki dashboard
Single-pane-of-glass into managing wired and wireless networks
Zero-touch remote deployment (no staging needed)
Automatic firmware upgrades and security patches
Templates based multi-network management
Org-level two-factor authentication and single sign-on
Role-based administration with change logging and alerts

Monitoring and Reporting

Throughput, connectivity monitoring and email alerts
Detailed historical per-port and per-client usage statistics
Application usage statistics
Org-level change logs for compliance and change management
VPN tunnel and latency monitoring
Network asset discovery and user identification
Periodic emails with key utilisation metrics
Device performance and utilisation reporting
Netflow support
Syslog integration

Remote Diagnostics

Live remote packet capture
Real-time diagnostic and troubleshooting tools
Aggregated event logs with instant search

Network and Firewall Services

Stateful firewall, 1:1 NAT, DMZ
Identity-based policies
Auto VPN : Automated site-to-site (IPsec) VPN, for hub-and-spoke or mesh topologies
Client (IPsec L2TP) VPN
Multiple WAN IP, PPPoE, NAT
VLAN support and DHCP services
Static routing
User and device quarantine

WAN Performance Management

Web caching (available on the MX84, MX100, MX250, MX450)
WAN link aggregation
Automatic Layer 3 failover (including VPN connections)
3G / 4G USB modem failover or single-uplink
Application level (Layer 7) traffic analysis and shaping
Ability to choose WAN uplink based on traffic type
SD-WAN: Dual active VPN with policy-based routing and dynamic path selection
CAT 6 LTE modem for failover or single-uplink1

Advanced Security Services

Content filtering (Webroot BrightCloud CIPA compliant URL database)
Web search filtering (including Google / Bing SafeSearch)
YouTube for Schools
Intrusion-prevention sensor (Cisco SNORT® based)
Advanced Malware Protection (AMP)
AMP Threat Grid
Geography-based firewall rules (MaxMind Geo-IP database)

Integrated Wireless

1 x 802.11a/n/ac (5 GHz) radio
1 x 802.11b/g/n (2.4 GHz) radio
Max data rate 1.2 Gbps aggregate (MX64W, MX65W), 1.3Gbps aggregate (MX67W, MX68W, MX68CW)
2 x 2 MU-MIMO with two spatial streams (MX67W, MX68W, MX68CW)
2 external dual-band dipole antennas (connector type: RP-SMA)
Antenna gain : 3.0 dBi @ 2.4 GHz, 3.5 dBi @ 5 GHz
WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X authentication
FCC (US) : 2.412-2.462 GHz, 5.150-5.250 GHz (UNII-1), 5.250-5.350 GHZ (UNII-2), 5.470- 5.725 GHz (UNII-2e), 5.725 -5.825 GHz (UNII-3)
CE (Europe): 2.412-2.484 GHz, 5.150-5.250 GHz (UNII-1), 5.250-5.350 GHZ (UNII-2) 5.470-5.600 GHz, 5.660-5.725 GHz (UNII-2e)
Additional regulatory information : IC (Canada), C-Tick (Australia/New Zealand), RoHS
