Qnap TS1679U-RP Dubai : Nas storage

Description

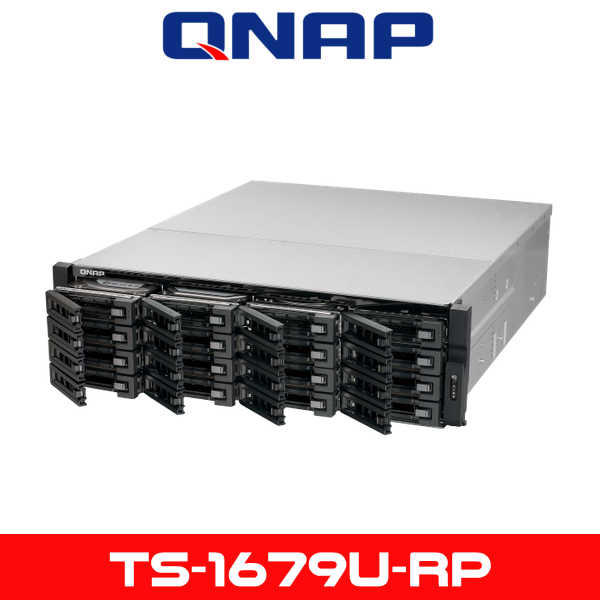

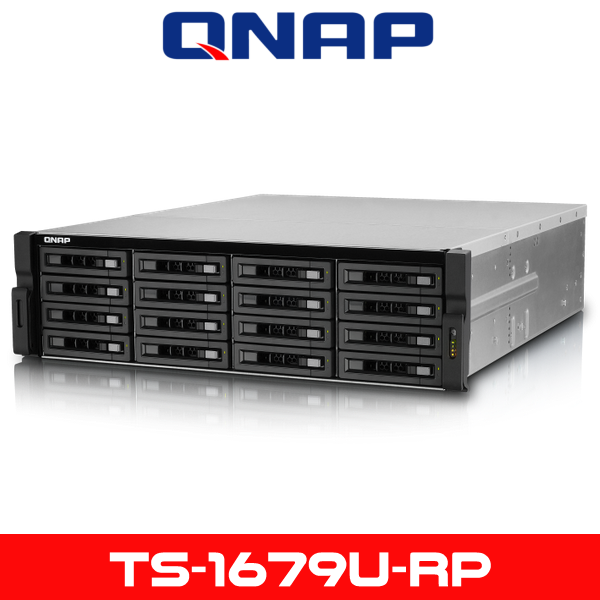

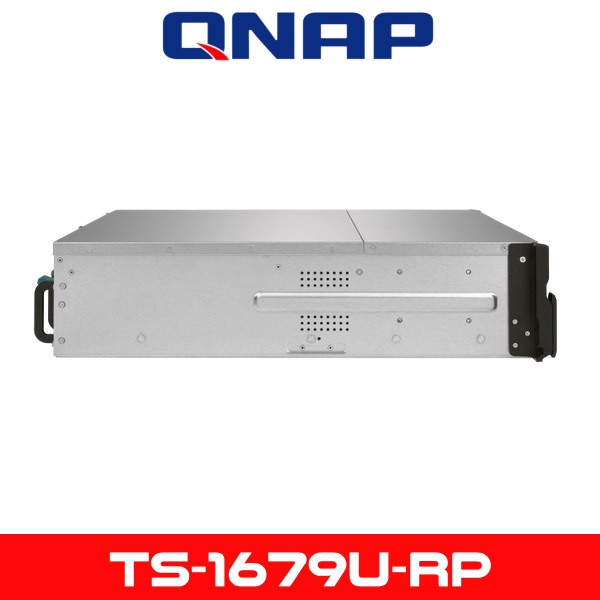

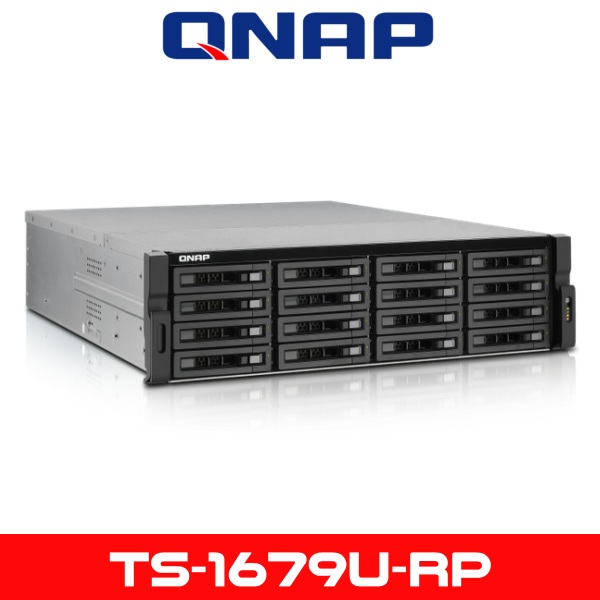

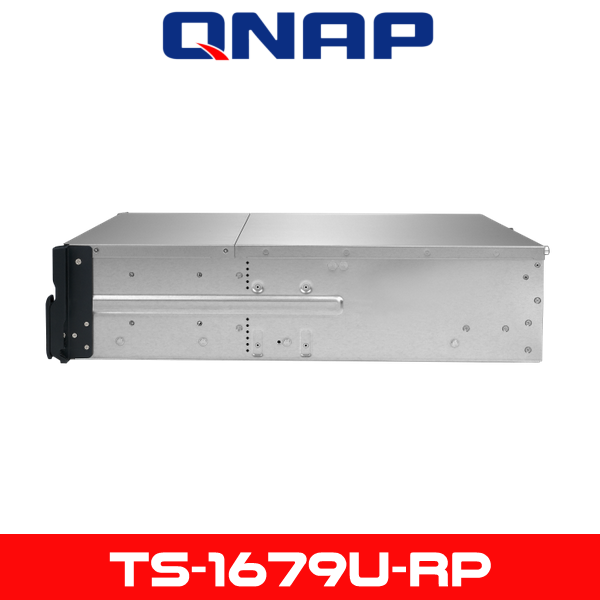

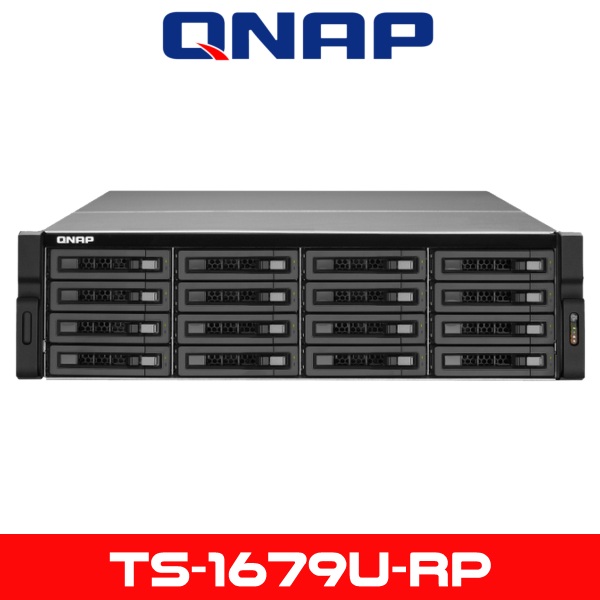

Qnap TS-1679U-RP Dubai

The Qnap TS1679U-RP Dubai 16-Bay NAS Server for SMBs is an ultra-high performance 16-bay NAS server for high-end small to medium businesses. The TS-1679U-RP Server serves as both IP-SAN (iSCSI) and NAS that can be easily utilized in different business and enterprise applications such as backup center, disaster recovery, file sharing, virtualization and video editing storage. The server is VMware, Citrix and Hyper-V ready compliant.

Features

Secure

The Qnap TS-1679U-RP Dubai offers a variety of security options such as encrypted access, IP filtering, policy-based automatic IP blocking and more. In addition, full control of the NAS is offered down to you and folder access rights to determine who can access the NAS and what can or cannot be accessed. The TS-1679U-RP is packed with security features to stop all unauthorized data access such as AES-256 volume-based encryption. The AES-256 volume-based encryption prevents sensitive data from unauthorized access and data-breach even if the hard drives or the device is stolen

Reliable

The Qnap TS-1679U-RP Dubai is reliable with built-in safety precautions to safeguard all data from any unforeseen problems. With multiple built-in features to guarantee no interruptions to the work flow of a business, the TS-1679U-RP is an efficient asset. The advanced RAID configurations and hot-swap capabilities are included to give RAID performance, protection and reduced rebuilding time. Moreover, the dual OS embedded on the DOM architecture ensures the system will boot up. If one of the two operating systems fails, the healthy operating system will boot up and operate normally while repairing the failed operating system. The dual Gigabit LAN ports can also be configured for failover which allows the NAS server to sustain the failure of one network port and still provide continuous services

Simple

Setting up local or remote access with the Qnap TS-1679U-RP Dubai is easy and does not require any IT skills. All setup processes have been simplified so that most of the process is either automatic or can be completed by an installation wizard. The user-friendly web GUI allows administrators to easily manage the NAS so there is no need for an extensive knowledge of complex commands. Simple management tools such as instant SMS/E-mail alert, the hard drive S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) feature and system resource monitor are provided to keep administrators up-to-date on their NAS at all times

High Performance

The Qnap TS-1679U-RP Dubai features Intel Core Xeon i3-2120 processor, 4GB DDR3 memory, 10 Gigabit network capability and 6 Gb/s SATA. Even the most demanding requirements in data center or corporate networks can be satisfied by the TS-1679U-RP. With outstanding data transfer rate of over 1,000 MB/s data throughput and 100,000 IOPS 1, intensive business applications and concurrent tasks can be easily fulfilled

NAS + iSCSI/IP-SAN Solution for Server Virtualization

With increasing virtualization of IT resources, the need for high performance storage is more essential than ever. The Qnap TS-1679U-RP Dubai offers class-leading system architecture matched with 10 GbE networking performance designed to meet the needs of demanding server virtualization, such as VMware, Citrix and Windows Hyper-V. The 10 GbE network speeds greatly increase the agility of data transmission in a virtualized environment intensifying NFS and iSCSI connection performance

High Network Bandwidth

The Qnap TS-1679U-RP Dubai offers network expansion options which include dual-port 1 GbE and dual-port 10 GbE network expansion cards, to aggregate and boost network performance. The TS-1679U-RP includes four Gigabit (GbE) LAN ports which can be expanded up to eight GbE LAN ports or four 10 GbE LAN ports plus six GbE ports

Blazing Fast Data Backup via USB 3.0

The Qnap TS-1679U-RP Dubai features USB 3.0 ports for high speed backup to external hard drives. EXT3, EXT4, NTFS and HFS+ file systems are supported to ensure compatibility with Windows, Mac OS X, and Linux operating systems

Cross-Platform Sharing with Antivirus

The Qnap TS-1679U-RP Dubai supports SMB/CIFS, NFS and AFP protocols for file sharing across Windows, Mac, and Linux/UNIX networks. User accounts and shared folders can be created via the user-friendly web-based interface without IT expertise. The integrated antivirus solution for the Turbo NAS ensures business continuity by offering protection against the latest viruses, malware, worms and Trojan horses

Windows Active Directory (AD) and LDAP Directory Service

The Windows AD and LDAP (Lightweight Directory Access Protocol) directory service features enable the system administrator to retrieve user accounts from Windows AD or LDAP-based directory server to the TS-1679U-R, reducing time and effort in account setup. You can use the same login name and password to access the TS-1679U-RP

Shared Folder Aggregation

You can access the shared folders of other servers on Microsoft networking through the “portal folder” on the TS-1679U-RP. This saves the time and effort in logging in multiple servers one by one

ISO File Archiving and Sharing

The Qnap TS-1679U-RP Dubai supports mounting ISO images of CD and DVD discs as network shares for data archiving, storage and sharing. This feature saves the space for storing physical discs, reduces the risk of data loss caused by disc wearing and tearing as well as enhances the efficiency of data sharing on business network

Centralized Log Monitoring

A central repository of log data from various network devices allows efficient management and security auditing in businesses. QNAP Syslog server allows the IT administrator to effectively collect and store logs of other network devices in the Qnap TS-1679U-RP Dubai.

TS-1679U-RP Dubai 16-Bay NAS Server For SMBs Specs

Hardware

CPU	Dual Core Intel Core i3-2120 processor, 3.3 GHz
DRAM	4 GB DDR3 RAM
Flash Memory	512 MB DOM
Hard Drive	16 x 3.5″ or 2.5″ SATA 6 Gb/s, SATA 3 Gb/s hard drive or SSD
Hard Disk Tray	16 x hot-swappable and lockable trays
LAN Ports	4 x Gigabit RJ-45 Ethernet ports (expandable up to 8 x 1 Gb LAN or 4 x 10 Gb + 4 x 1 Gb LAN by installing optional dual-port 10 Gb and 1 Gb network card)
LED Indicators	Status, 10 GbE, LAN, eSATA, hard drives
USB	2 x USB 3.0 ports (rear) 4 x USB 2.0 ports (rear) Supports USB printer, disk, pen drive, USB hub, USB UPS and more
eSATA	2 x ports (rear)
Buttons	System: Power button and reset button
Alarm Buzzer	System warning
Form Factor	3U, rack mount
Sound Level	Standby: 54.73 dB In Operation: 55.13 dB (with 16 x 1 TB HDD installed)
Expansion Slots	2 (for network and storage expansion)
VGA	Reserved for maintenance
HDMI	Reserved for maintenance
Fan	3 x 2.4″ (6 cm) smart cooling fans

Software

Operating System	Embedded Linux
Supported Operating Systems	Windows XP, Vista, Windows 7 (32/64-bit), Windows 8 (32/64-bit), Windows Server 2003/2008 R2 Apple Mac OS X Linux and UNIX
Supported Web Browsers	Microsoft Internet Explorer 8, 9 Mozilla Firefox 8, 9, 10 Apple Safari 4, 5 Google Chrome
Multilingual Support	Chinese (Traditional and Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
File System	Internal Hard Drive: EXT3, EXT4 External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+
Networking	TCP/IP (IPv4 and IPv6: dual stack) Multiple Gigabit NICs with Jumbo Frame: -Failover -Multi-IP settings -Port trunking/NIC teaming (Modes: Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb) Service binding based on network interfaces Virtual LAN (VLAN) DHCP client, DHCP server Protocols: CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP and SMSC UPnP and Bonjour Discovery USB Wi-Fi adapter support
Backup Solution	Real-Time Remote Replication (RTRR): -Works as both RTRR server and client with bandwidth control -Real-time and scheduled backup -Encryption, compression, file filter and transfer rate limitation Block-Level Remote Replication: -Works as both Rsync Server and client with bandwidth control -Encrypted replication between QNAP NAS servers USB one touch backup (import/export) Desktop backup by QNAP NetBak Replicator for Windows Apple Time Machine support with backup management Data backup to multiple external storage devices Data backup to Cloud storage (Amazon S3, ElephantDrive and Symform)
Security	IP filter and policy-based automatic IP blocking Network Access Protection with Auto-Blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP Encrypted Access: HTTPS, FTP with SSL/TLS (explicit), SSH/SFTP (admin only), encrypted remote replication between QNAP NAS servers (Rsync over SSH) CIFS host access control for shared folders Antivirus protection FIPS 140-2 validated AES 256-bit volume-based data encryption AES 256-bit External Drive Encryption Importable SSL certificate Instant alert via E-mail, SMS, instant messaging (Windows Live Messenger) and buzzer
Disk Management	Single disk, JBOD, RAID 0, 1, 5, 5+Hot Spare, 6, 6+Hot Spare, 10, 10+HotSpare Online RAID capacity expansion and online RAID level migration Bad block scan and hard drive S.M.A.R.T. Global hot spare drive RAID recovery Bitmap support
iSCSI (IP SAN)	iSCSI Target: – Multiple LUNs per target -Up to 256 targets/LUNs combined Supports LUN mapping and masking -Online LUN capacity expansion -Supports SPC-3 persistent reservation -Supports MPIO and MC/S iSCSI LUN backup, one-time snapshot and restore iSCSI connection and management by QNAP Finder (Windows) Virtual Disk Drives (via iSCSI Initiator): -Stack chaining master -Maximum No. of Virtual Disk Drives: 8
Server Virtualization and Clustering	Supports VMware vSphere Supports Citrix XenServer Supports Windows Server 2008 R2 Hyper-V and failover clustering
Power Management	Wake on LAN Internal hard drive standby mode Scheduled power on/off (max 15 settings) Automatic power on after power recovery USB and network UPS support with SNMP management
Access Rights Management	Maximum No. of Users: 4096 Maximum No. of User Groups: 512 Maximum No. of Network Shares: 512 Batch users creation Import/export users User quota management Subfolder permissions support for CIFS/SMB, AFP, FTP and Web File Manager
Domain Authentication Integration	Microsoft Active Directory (AD) LDAP server LDAP client Domain users login via CIFS/SMB, AFP, FTP and Web File Manager
MyCloudNAS Service	Private cloud storage and sharing Free host name registration (DDNS) Auto router configuration (via UPnP) MyCloud NAS Connect for easy connection (Windows utility)
Storage Plug and Play	Windows Software: QNAP Finder Create and map shared folders Create and connect to iSCSI Target/LUN
Web Administration	AJAX-based user interface Smart fan control Dynamic DNS (DDNS) SNMP (v2 and v3) Resource monitor Network Recycle Bin for file deletion via CIFS/SMB and AFP Comprehensive logs (events and connection) Syslog client Firmware live update System settings backup and restore Restore to factory default

Powerful All-in-one server

File Server	File sharing across Windows, Mac and Linux/UNIX Shared folder aggregation (CIFS/SMB) Web File Manager: -Supports ISO mounting -Direct file viewing via Google Doc -Create and send download links for public file sharing with expiration time and password protection
FTP Server	FTP over SSL/TLS (explicit) Max No. of Concurrent Connections: 256 FXP supported Passive FTP port range control FTP bandwidth and connection control Unicode support
Backup Server	Remote replication server (over Rsync) Real-time remote replication to another QNAP NAS or FTP server Apple Time Machine support Windows Client Backup Application: QNAP NetBak Replicator Third Party Backup Software Support: Acronis True Image, CA BrightStor, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper and more
Web Server	HTTP/HTTPS connections Supports WebDAV connection Support virtual host (Max: 32) Importable SSL certificate
Database Server	Built-in MySQL server (v5.1.3.6) Web-based management via phpMyAdmin (QPKG)
Print Server	Max No. of Printers: 3 Supports Internet Printing Protocol: -Print job display and management -IP- and domain name-based privilege control Supports Apple Bonjour printing
Syslog Server	Centralized log monitoring and archiving Immediate E-mail alerts Supports log filtering
RADIUS Server	Centralized account management and authentication for network access Supports 802.1x security authentication
TFTP Server with PXE Booting VPN Server	Secure Remote Access: PPTP and OpenVPN VPN services Remote access to other resources on local network Max No. of Clients: 30
iTunes Server	Audio and video sharing ((AIF, M4A, M4B, M4V, MOV, MP1, MP2, MP3, MP4, MPEG, MPG, WAV) Smart playlist for iTunes client (Windows and Mac OS)
UPnP Media Server	Built-in TwonkyMedia server Real-time and background photo transcoding Supports UPnP media player such as PlayStation 3 and Xbox 360 Supported Format: -Audio: MP3, MP4, M4A, M4A (ALAC), M4B, 3GP, APL, AC3, M1V, M4V, MOV, AAC, AMR, AWB, WAV, PCM, LPCM, MP1, MP2, AIF, AIFF, AIFC, SND, WMA, OGG, FLAC -Photo: JPG, JPE, JPEG, TIFF, TIF, GIF, PNG, BMP -Video: WMV, ASF, VDR, AVI, XVID, DIVX, FLV, MPG, MPE, MTS, M2TS, M2T, MPEG, SPTS, M2P, M2V, MP2T, MP2P, MPG2, DVR-MS, VOB -Playlist: M3U, M3U8, WPL, PLS
Multimedia Station	Supports photo, audio and video Image slideshow and rotation Automatic and scheduled thumbnail generation for easy browsing Display Photo Details from EXIF: Date, exposure time, aperture and more Display Audio Details from ID3 Tag: Album cover, title, artist, album and more Access authority management Multimedia (video and audio) streaming Supports Cooliris Supports web publishing (Facebook, MySpace, MSN Live, Twitter, Plurk, Blogger) Share photos by E-mail Supported Formats: -Photo: JPG/JPEG, GIF, PNG -Audio: MP3 -Video: Playback: FLV, MPEG-4 Video (H.264 + AAC) Transcode: AVI, M4V, MPG/MPEG, RM/RMVB, WMV QNAP exclusive iPhone and Android App: QMobile
Photo Station	Supported File Formats: -Photo: JPG/JPEG, GIF, PNG, BMP, RAW (.arw, .srf, .sr2, .dcr, .kdc, .cr2, .crw, .nef, mrw, .pef, .paf, .3fr, .erf, .mef, .mos, .orf, .rw2, .dng, .x3f, .tif, .nrw, .raf) -Video: FLV, MPEG-4 video (H.264 + AAC) Image slideshow with background music, thumbnails and different playback modes Online photo editing by Pixlr editor Geotagging photos with Google Maps Slideshow sharing (from private albums) with password protection Photo publishing to social websites (Facebook, MySpace, Twitter, Plurk and Blogger) Photo sharing by E-mail
Music Station	Supported Audio Formats: MP3, MP4, OGG, WAV, AIFF, AU, FLAC, M4A, APE, AAC Local playback with USB speaker/sound card Browse other UPnP media servers on local network Internet radio (MP3) Music alarm (up to 8 alarms) Playback Control by QNAP Mobile App: QMobile Music Remote
Download Station	PC-less BT, FTP, HTTP download (up to 500 tasks) BT Download: -Supports TCP/UDP tracker protocol -Scheduled download -Configurable port range -Bandwidth control -UPnP NAT port forwarding -RSS subscription and download (broadcatching) -Selectable download files HTTP/FTP Download: -Configurable saving directory -Bulk download with wildcard settings -RapidShare download support QNAP Download Management Software: QGet -For both Windows and Mac OS -Manage the download tasks of multiple QNAP NAS remotely over LAN or WAN
Surveillance Station	Supports four IP Cameras for network Surveillance Supports one Webcam via QPKG Add-on: QUSBCam
Antivirus	Protection against the latest known viruses, Trojans and other threats Free virus databases update on manual or scheduled basis Multiple scan tasks (max: 64, concurrent: 5) with custom folder selection and scheduled Scanning E-mail notification upon task completion or virus detection Quarantines or deletes infected files
QPKG Center	Expands application services by easy online installation A wide variety of official and community QPKG Add-ons Business: -eyeOS -GLPI -Squid Proxy Server -Vtiger CRM CMS: -Gallery -Joomla -WordPress -Xoops Communications: -Asterisk -XMail -Xeams Download: -MLDonkey -NZBGet -pyLoad -SABnzbdplus -Transmission Entertainment: -IceStation -Plex Media Server -PS3 Media Server -Squeezebox Server Utilities: -iStat -Optware IPKG -phpMyAdmin -Piwik Miscellaneous: -Java Runtime Environment -Mono -Python -QUSBCam -Tomcat

Power

Power Supply	Input: 100 – 240 VAC, 50 – 60 Hz Output: 600 W
Power Consumption	Sleep Mode: 89.1 W In Operation: 229 W (with 16 x 1 TB hard drive installed)

Environmental
