Qnap TS870U-RP Dubai



Qnap TS-870U-RP Dubai

The Qnap TS-870U-RP Dubai is VMware® Ready™, Citrix® Ready™, compatible with Microsoft® Hyper-V™ certification and Windows Server 2012, and supports advanced functions including SPC-3, MPIO and MC/S.

Description

Qnap TS870U-RP Dubai

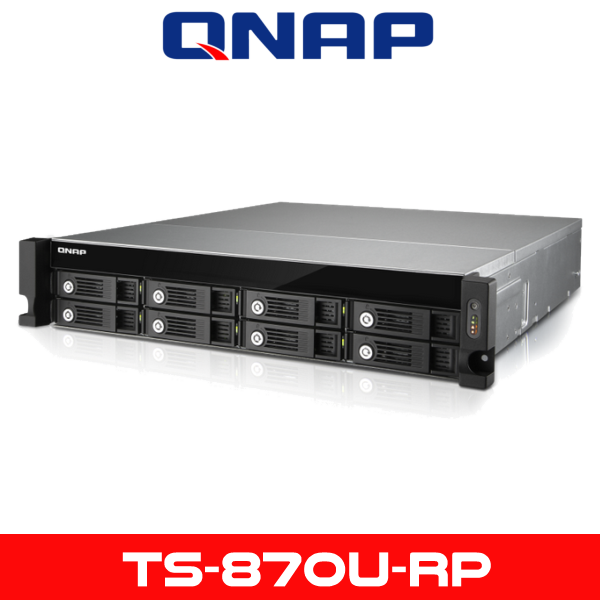

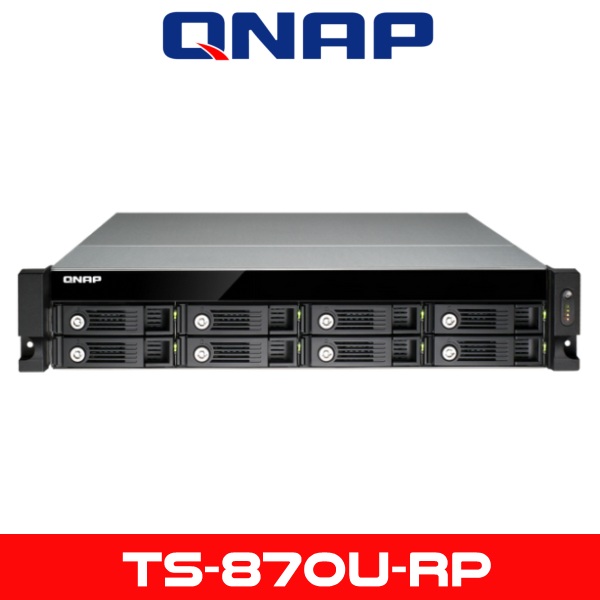

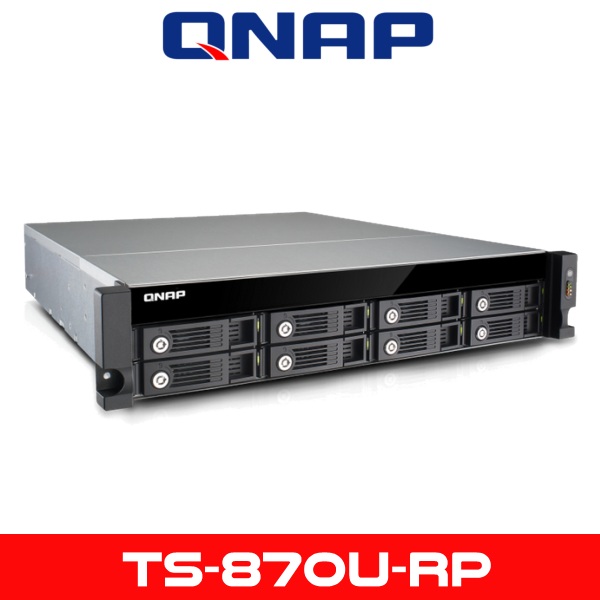

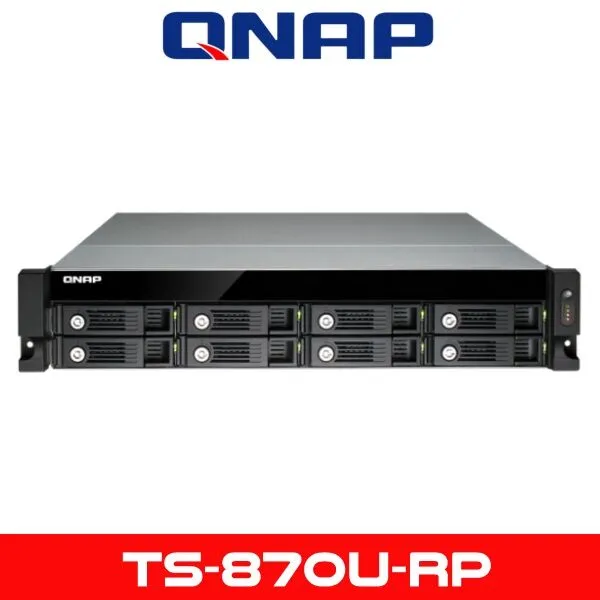

The Qnap TS870U-RP Dubai is designed to provide IP SAN/NAS unified storage for large-scale business organizations that demand uncompromising high performance. Featuring a powerful Dual-core Intel® 2.4 GHz Processor, 4GB DDR3 RAM (expandable to 32GB), and the capacity to hold up to 8 hard drives, the TS-870U-RP greatly enhances efficiency of CPU-consuming tasks, powering large amount of concurrent tasks, and meeting the stringent requirements of data-hungry applications.

Features

Flexible 10GbE network expansion

The 10GbE-ready Qnap TS-870U-RP Dubai includes 2 in-built Gigabit Ethernet ports, which can be expanded with additional 4 Gigabit Ethernet ports, or 4 10Gigabit Ethernet ports and delivers excellence performance with 1,000 MB/s throughput and 100,000 IOPS, improving the efficiency of virtualization applications via both NFS and iSCSI protocols. Coupled with the support for large storage capacity, the TS-870U-RP is a perfect choice for applications demanding high storage space and transmission speed such as data centers storing big data and for studios editing 4K/HD videos on-the-fly without transferring the videos between the TS-870U-RP and desktop computers

Comprehensive virtualization support

The Qnap TS870U-RP Dubai is VMware® Ready™, Citrix® Ready™, compatible with Microsoft® Hyper-V™ certification and Windows Server 2012, and supports advanced functions including SPC-3, MPIO and MC/S, enabling flexible deployment and management for virtualization needs. The TS-870U-RP supports VMware VAAI and Microsoft ODX to increase performance by offloading ESXi server loading, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider to provide enhanced operational efficiency in managing virtualization applications.

High Efficiency with Multiple LAN support

The Qnap TS-870U-RP Dubai supports multiple port-trunking modes, enabling IT administrators to set up link aggregation to increase total data transmission capability. Failover is also supported to ensure continuous system operations. The supported port-trunking modes include: Balance-rr (Round-Robin), Active Backup, Balance XOR, Broadcast, IEEE 802.3ad, Balance-tlb (Adaptive Transmit Load Balancing) and Balance-alb (Adaptive Load Balancing).

Qnap TS-870U-RP – Hardware Specifications

CPU Dual-core Intel® 2.4 GHz Processor
DRAM 4 GB DDR3 RAM
NOTE:
1.The system memory can be increased to 16GB by installing three additional 4GB Long-DIMM RAM modules.
2.For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide
Flash Memory 512MB DOM
Hard Drive 8 x 3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s hard drive or SSD
NOTE:
1. The standard system is shipped without hard drives.
2. For the hard drive compatibility list, please visit http://www.qnap.com/en/index.php?lang=en&sn=3877.

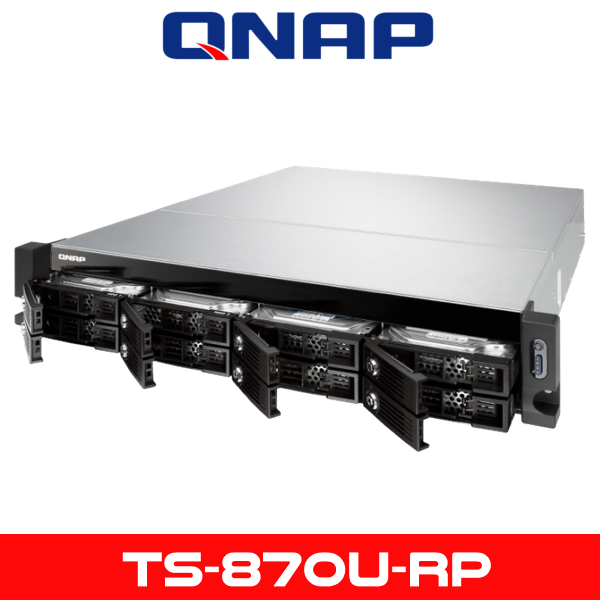

Hard Drive Tray 8 x hot-swappable and lockable tray
LAN Port 2 x Gigabit RJ-45 Ethernet port
(Expandable up to 6 x 1 Gb LAN or 4 x 10 Gb + 2 x 1 Gb LAN by installing optional dual-port 10 Gb and 1 Gb network card)
Note:
1. For the optional network card compatibility list, please visit http://www.qnap.com/en/index.php?lang=en&sn=4061
2. For the information of network card installation, please refer to chapter 6 in the Turbo NAS Hardware Manual.
LED Indicators Status, 10 GbE, LAN, eSATA, hard drives
USB 2x USB 3.0 port (rear)
4x USB 2.0 port (rear)
Support USB printer, pen drive, USB hub, and USB UPS etc.
eSATA 2 (rear)
Buttons System: Power button and reset button
Alarm Buzzer System warning

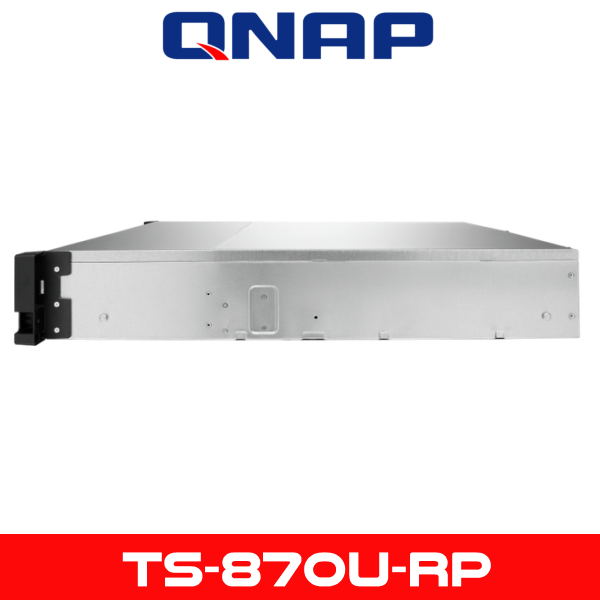

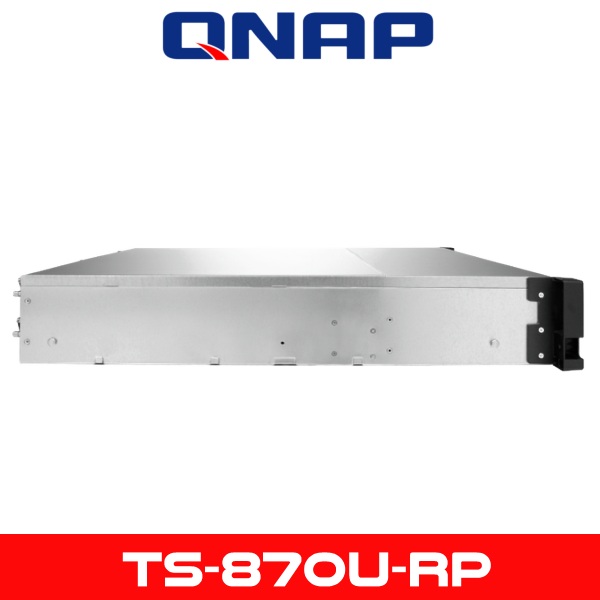

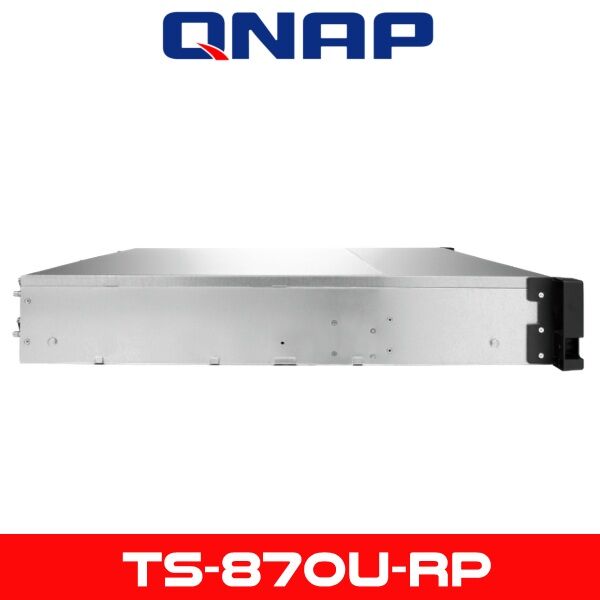

Form Factor 2U, Rackmount
Dimensions 89 (H) x 482 (W) x 534 (D) mm
3.50 (H) x 18.98 (W) x 21.02 (D) inch
Weight 9.9 kg/21.83 lb (Net)
12.74 kg/ 28.09 lb (Gross)
Sound Level (dB) Standby: 45.8 dB
In operation: 47.5 dB
(with 8 x Hitachi HUA723020ALA640 MK7O installed)
Power Consumption (W) Sleep mode: 74.7 W
In Operation: 155.2 W
(with 8 x Hitachi HUA723020ALA640 hard drive installed)
Temperature 0-40˚C
Relative Humidity 0~90%
Power Supply Input: 100-240V AC, 47-63Hz
Output: 300W
Expansion Slot 2 (for network and storage expansion)
Fan 2 x quiet cooling fan (7 cm, 12V DC)

Box Contents

TS-870U-RP
CD-ROM
Ethernet Cable x 2
Power Cord x 2
Hard Disk Lock
Flat Head Screw x 32 (for 3.5″ HDD)
Flat Head Screw x 24 (for 2.5″ HDD)
Quick Installation Guide
