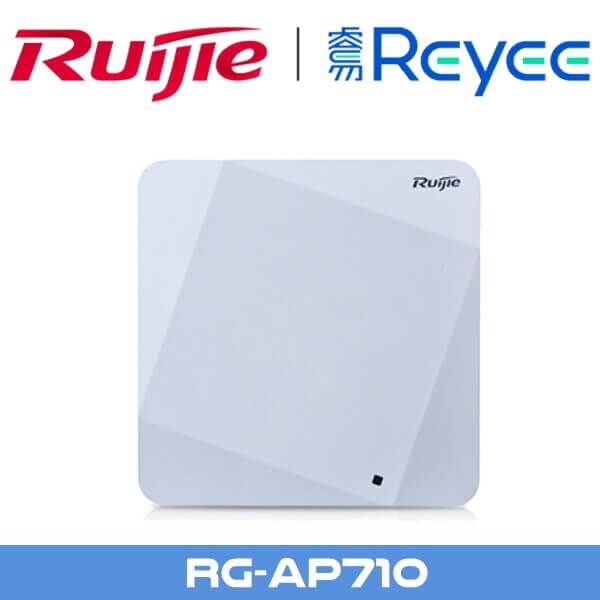

Ruijie RG-AP710 Accesspoint Dubai



Ruijie RG-AP710 Accesspoint Dubai

The Ruijie RG-AP710 Dubai is a cost effective 802.11ac access point with 2×2 MIMO and concurrent Dual-band design, data rate of up to 1.167Gbps. Taking advantage of Ruijie hybrid management flexibility, users can choose the Lifetime FREE Ruijie Cloud Management and Hardware Controller.

Description

Ruijie RG-AP710 Access Point Dubai

The Ruijie RG-AP710 Accesspoint Dubai is a cost effective 802.11ac access point with 2×2 MIMO and concurrent Dual-band design, data rate of up to 1.167Gbps. Taking advantage of Ruijie hybrid management flexibility, users can choose the Lifetime FREE Ruijie Cloud Management and Hardware Controller for varies fast-changing business needs. With 802.11ac Concurrent Dual-Band design, the RG-AP710 data rate is up to 1.167Gbps, sufficient for majority small office and retail store environment. Featuring 100% Cloud Management, the RG-AP710 provides the perfect balanced of price performance for small-medium business users. No matter cloud or hardware-based controller, all integrated with advanced radio optimization, wireless roaming as well as secure authentication out-of-box.

ruijie rg ap710 accesspoint dubai

ruijie rg ap710 accesspoint dubai

Features

Flexible Hybrid Management

Ruijie RG-AP710 Accesspoint Dubai features Ruijie SME AP offering the flexibility for SME to choose the mode of management. There are 3 different management modes for selection. For the Ruijie Cloud option, no extra cost or firmware upgrade is required, which saves company expenses and time.

Selection between Ruijie Cloud and Hardware Controller

In some cases, a local on-premise wireless controller is required due to some business requirement. Ruijie RG-AP710 Accesspoint Dubai allows the flexibility according to customer preference, the AP can be either managed by Ruijie Cloud or on-premise wireless controller

Performance Guarantee (Tolly© Certified)

Tolly Group is one of the reputable 3rd party independent performance testing organization. Over 65% of Fortune 100 Companies turn to Tolly Reports to assist in strategic technology decisions. The Ruijie RG-AP710 Accesspoint Dubai Wireless Access Point performance is further validated in Tolly certified report. We have outperformed other major vendor flagship wireless access point in the real-world performance rating.

Stylish Design

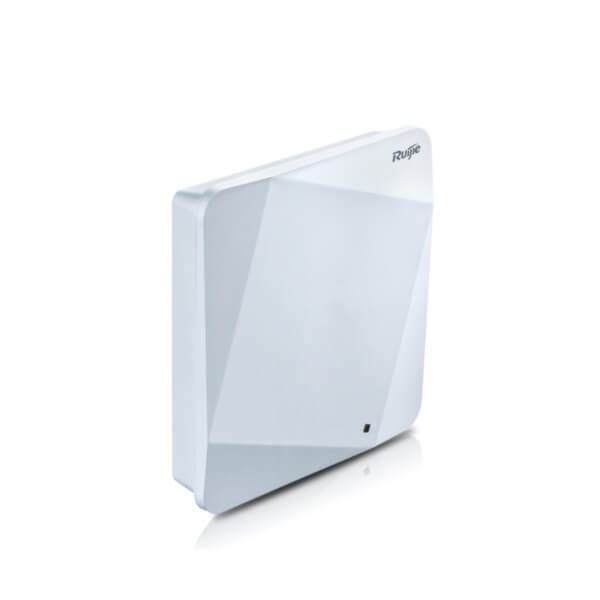

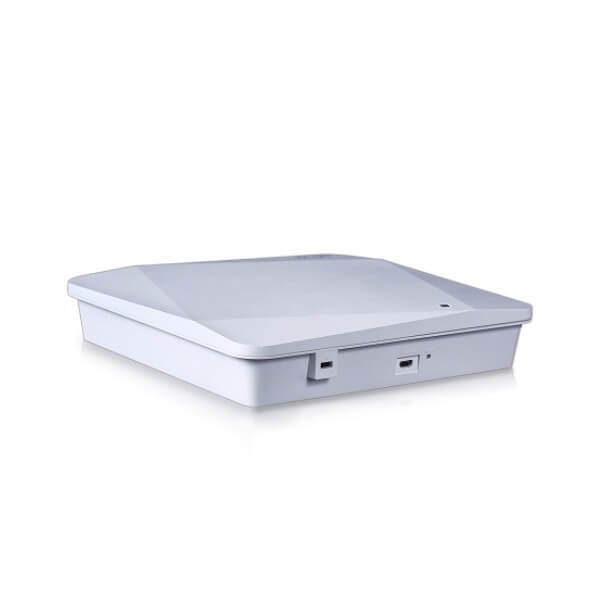

Ruijie RG-AP710 Accesspoint Dubai employ a simplistic and stylish design to fit different scenarios. The APs feature an integrated antenna design and hidden LAN port along with hidden cabling to hide the messy wires, which gives a professional and simplistic deployment style that is less noticeable.

Mobile Operation

On-The-Go4 Ruijie Cloud offers an innovative breakthrough which allows device operation and management from your smartphones at your fingertips. Now you can monitor your Wi-Fi user experience, traffic and client analysis anytime and anywhere. An alarm notification will be pushed to your smartphone if there’s device issue found in your network. It helps SME business to know and understand the real time situation of Wi-Fi network. 2Ruijie Cloud required 3Ruijie Cloud required 4Ruijie Cloud required

ruijie rg ap710 accesspoint uae

ruijie rg ap710 accesspoint uae

Fast Provisioning

Ruijie Cloud provides a mobile APP which allows devices onboarding and provisioning completed by just 4 simple steps. Typically, it takes less than 5 minutes from unboxing Ruijie wireless access point to Wi-Fi up and running, which significantly simplifies Wi-Fi deployment.

Social Media Login

Social media is huge part of our lives, it is easier to and more convenient to let your guest login to your Wi-Fi by using their social media credential. Ruijie Cloud provides an ease of use integrated Facebook for guest Wi-Fi login. A simple captive portal with Facebook login button can be built easily by using step by step wizard. No web programming skill is required.

ruijie rg ap710 accesspoint sharjah

ruijie rg ap710 accesspoint sharjah

Technical Specifications

Model Ruijie RG-AP710
Target Deployment Retail Chain Store, Small & Medium-sized Business Office, Boutique Hotel
Type Indoor Ceiling/Wall-mounting
Basic Specifications Radio Concurrent Dual-band
Protocol 802.11a/b/g/n/ac
Operating Bands
  • 802.11b/g/n : 2.4GHz to 2.483GHz
  • 802.11a/n/ac : 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries)
Antenna Built-in Omni-directional Antenna
Antenna Gain
  • 2.4G : 3dBi
  • 5G : 3dBi
Max Throughput
  • Maximum throughput of 2.4G : 300Mbps
  • Maximum throughput of 5G : 867Mbps
  • Maximum throughput per AP : 1167Mbps
Modulation
  • OFDM :BPSK@6/9Mbps,QPSK@12/18Mbps,16-QAM@24Mbps,64-QAM@48/54Mbps
  • DSSS :DBPSK@1Mbps,DQPSK@2Mbps,and CCK@5.5/11Mbps
  • MIMO-OFDM :BPSK, QPSK, 16QAM, 64QAM, 256QAM
Receiver Sensitivity
  • 11b :-96dBm(1Mbps),-93dBm(5Mbps),-89dBm(11Mbps)
  • 11a/g :-91dBm(6Mbps),-85dBm(24Mbps),-80dBm(36Mbps),-74dBm(54Mbps)
  • 11n :-90dBm(MCS0),-70dBm(MCS7),-89dBm(MCS8),-68dBm(MCS15)
  • 11ac HT20 :-88dBm(MCS0), -63dBm(MCS9)
  • 11ac HT40 :-85dBm(MCS0), -60dBm(MCS9)
  • 11ac HT80 :-82dBm(MCS0), -57dBm(MCS9)
Spatial Streams 2×2
Maximum Transmit Power 100mW
IP Rating IP41
Ports
  • 1 10/100/1000BASE-T Ethernet uplink
  • Port LAN1 supports PoE
  • 1 Console Port
Power Power Supply
  • Local power supply (DC 5V/3A)
  • PoE (802.3af)
Power Consumption <12.95W
WLAN Maximum clients per AP 256
BSSID capacity 32
Remote Intelligent Perception Technology (RIPT) Support
Intelligent load balancing based on the number of users or traffic Support
STA control Support
Bandwidth control Support
Preference for 5GHz (band select) Support
Band Steering (5G Priority) Support
Security PSK, Web, 802.1x authentication Support
PPSK authentication Support
Data encryption WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)
PEAP authentication Support
User isolation Support
Rogue AP detection and countermeasure Support
RADIUS Support
Wireless Intrusion Detection System(WIDS) Support
Wireless Intrusion Prevention System (WIPS) Support
Routing IPv4 address Static IP address or DHCP reservation
IPv6 address Manual or automatic configuration
Multicast Multicast to unicast conversion
Management and Maintenance Network management SNMP v1/v2C/v3, Telnet, TFTP, Web management
Cloud AC management Support
FAT/FIT switching Support
External Characteristics Lock Support
LED Indicators 1 LED indicator (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to enable silence mode)
Relevant Standard Wi-Fi Alliance Certification Support
Radio Standard
  • EN300 328
  • EN301 893
EMC Standard
  • GB9254
  • EN301 489-1
  • EN301 489-17
  • EN 55032
  • EN 61000
  • EN 55035
Safety Standard GB4943

EN/IEC 60950-1

Specifications Dimensions (W x D x H) (mm) 194 × 194 × 37
Weight 0.42kg
Work Environment Temperature
  • Operating Temperature : -10°C to 50°C
  • Storage Temperature : -40°C to 70°C
Humidity
  • Operating Humidity : 5% to 95% (non-condensing)
  • Storage Temperature : 5% to 95% (non-condensing)
