Ruijie RG-EG105GW Router Dubai

Description

Ruijie RG-EG105GW Router Dubai

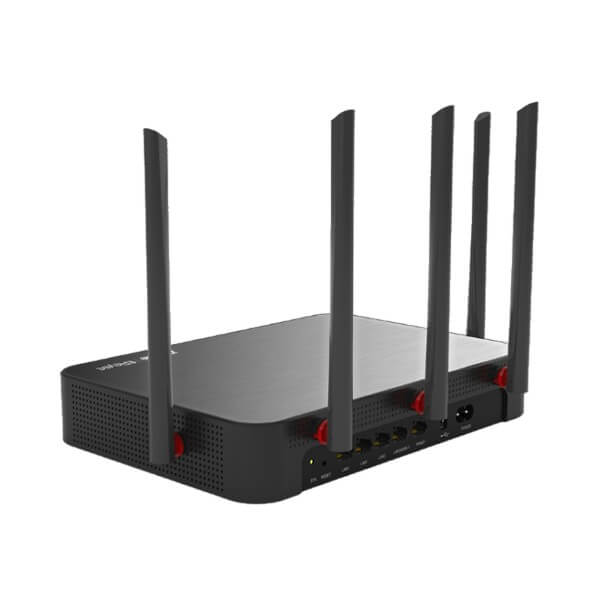

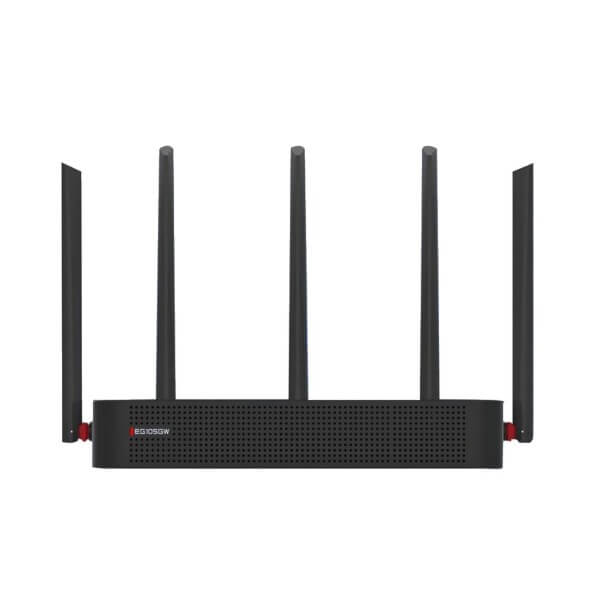

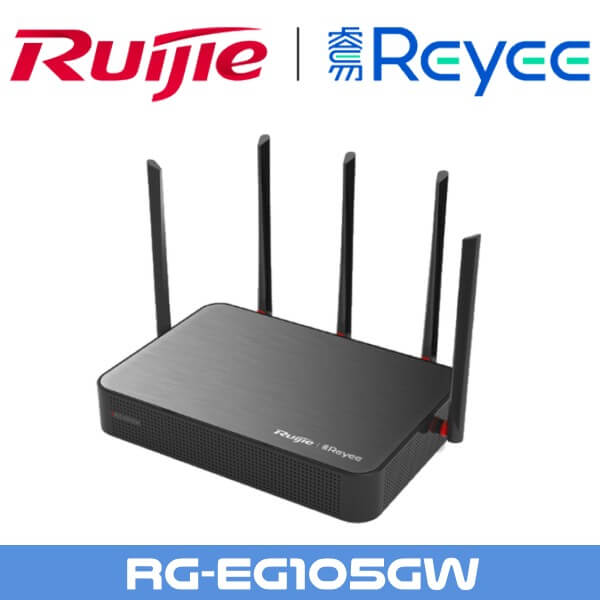

The Ruijie RG-EG105GW Router Dubai is applicable in many different scenarios including small and medium-sized stores, small enterprise offices, and food and beverage industry. It is a high-performance business-class wireless router that features a strong aluminum metal casing that offers maximum protection from external damages and improves the quality of signal transmission and the stability of the device.

RG-EG105GW provides 4 10/100/1000M LAN ports (including 1 LAN/WAN port) and 1 fixed WAN port, which supports up to 2 concurrent broadband access with SOOMbps recommended bandwidth. The maximum clients supported per router is 100 and the recommended number of wireless terminals is 60. With concurrent 2.4G and SG, RG-EG105GW supports up to 450Mbps at 2.4G and up to 867Mbps at SG. Equipped with 802.11ac Wave2 RF chip, RG-EG105GW supports MU-MIMO. For multi-user access, the wireless speed is more stable, which further improves the users’ Internet experience.

RG-EG 1 OSGW supports policy-based routing of multiple WAN ports, and offers various on line authentication methods including WeChat authentication, SMS authentication, and one-click authentication by integrating with the MACC cloud platform. RG-EG 105GW can perform per-port VLAN configuration to achieve port isolation and integrate with smart flow control to achieve comprehensive network planning. RG-EG 1 OSGW supports rich scenario-based application configurations, and guarantees the priority for the network experience of the employees’ office, cashier system and ordering system of the restaurants, so as to meet the application needs of small enterprises, small and medium sized shops, restaurants, etc.

The built-in network controller of Ruijie RG-EG105GW Router Dubai can centrally manage up to 32 Ruijie Real-easy Series EAPs and RAPs which support smart networking feature and up to 128 Ruijie Real-easy Series ES2xx smart switches, realizing the industry-leading auto-discovery and auto-networking features for gateways, switches and wireless. The device also supports AP mode. In both routing mode and AP mode, it can achieve seamless roaming with other AP wireless signals in the same layer 2 networking environment. With the unified management of RG-EG105GW, the entire network can be centrally configured through the mobile app and MACC cloud platform for remote management and fault diagnosis. It also supports daily configuration tasks via WeChat to truly achieve multi-end management on the mobile terminal and PC anytime, anywhere.

Key Features

Multiple WAN Ports
Large Bandwidth
High Concurrency
Strong Signal
System Hang Prevention
Fast Roaming
Port Isolation
Service Assurance
Multiple WAN Policies
Authentication Policies
Single-cable IPTV
Copying the Dial-up Password
Device Status Monitoring
VPN

Technical Specs

Brand	Ruijie
Model	RG-EG105GW
Fixed ports	5 10/100/1000M Base-T ports, supporting up to 2 WAN ports (Default : 1 WAN port,4 LAN ports LAN3 can be switched to WAN1 port) 1 USB2.0 port
RAM	128MB
Flash	16MB
Antenna	3 2.4G blade antennas (maximum gain 5dBi) 2 5.8G blade antennas (maximum gain 5dBi)
Protocol	Concurrent 802.11a/n/ac/ac Wave2 and 802.11b/g/n
Operating bands	2.4G : 2.4G ~ 2.483GHz 5G : 5.150-5.350GHz,5.725-5.850 GHz
Spatial streams	5 spatial streams per router 3 spatial streams at 2.4GHz 2 spatial streams at 5GHz
Maximum clients	Supports up to 100 concurrent clients Recommended number of wireless terminals : 60
Recommended bandwidth	500M asymmetric bandwidth (flow control disabled) 300M asymmetric bandwidth (flow control enabled)
Local power supply	Support 220V AC local power supply
Power consumption	<20W
Basic network features
Network access	PPPoE dial-up DHCP client Static IP Automatic identification of access methods Automatic avoidance of WAN port address conflicts MAC cloning Obtaining account passwords from existing routers
Routing	Static routing Policy-based routing Carrier address routing Active/standby mode Load balancing based on source address Flow-based load balancing Port-based weighted load balancing of data streams
Security	ACL IP-MAC binding MAC address filtering Dynamic ARP Static ARP binding NAT NAPT Port mapping
Other protocols	DHCP Server DHCP Client DHCP Option43 / 138 DNS Client DNS Server DNS Proxy TFTP NTP DDNS
Gateway
Flow control	Support custom flow control policies IP-based automatic bandwidth assignment
Traffic audit	Real-time traffic audit IP traffic visualization
VPN	IPsec VPN (8 tunnels) server and client
Wireless management
Management capacity	In gateway mode, the maximum management capacity is 32
AP management	Support multi-SSID configuration SSID hiding Channel setting Power setting AP wired port setting AP online upgrade STA quantity setting STA blacklist and whitelist
Roaming	Support local forwarding roaming Layer 2 roaming Layer 3 roaming between APs Viewing of STA roaming track
Switch management
Management capacity	Maximum manageable cloud managed switches : 128
Port management	Loop protection Port mirroring Port isolation Port configuration PoE configuration Port limit Storm control Static MAC MAC search
Status display	Port statistics monitoring information Cable detection VLAN configuration MAC list
Device management	Per-device upgrade Batch upgrade
Special features
Featured solutions	Single-cable IPTV solution Port service VLAN and network segment isolation solution Smart fault diagnosis solution Intranet penetration solution Auto-networking solution Wired relay solution (AP mode)
Flexible management	Eweb and Ruijie Cloud
Physical specifications
Dimensions	250×170×42 (mm)
Weight	1.2kg
Temperature	Operating temperature : -10°C~40°C Storage temperature : -40°C~70°C
Humidity	Operating humidity : 5%~95%(non-condensing) Storage humidity : 5%~95%(non-condensing)
