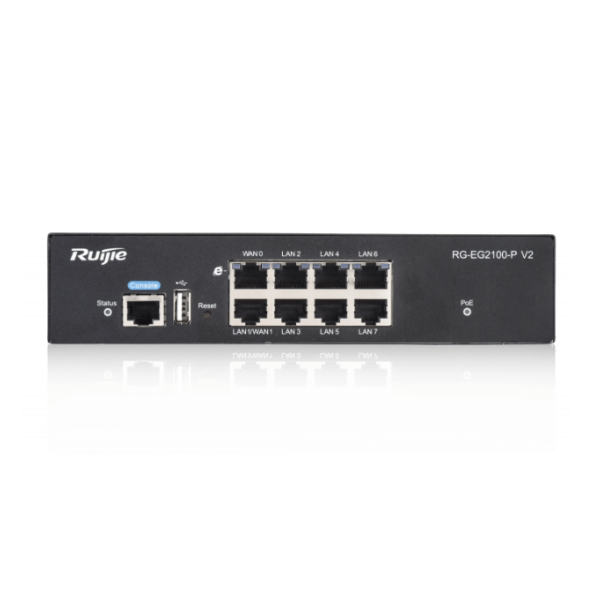

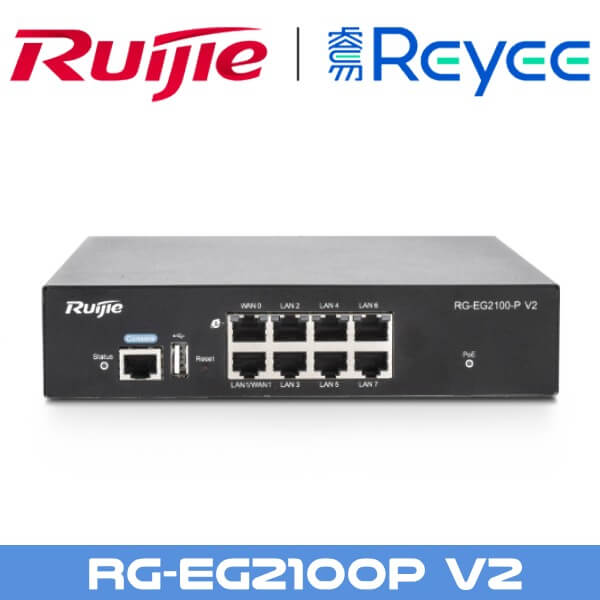

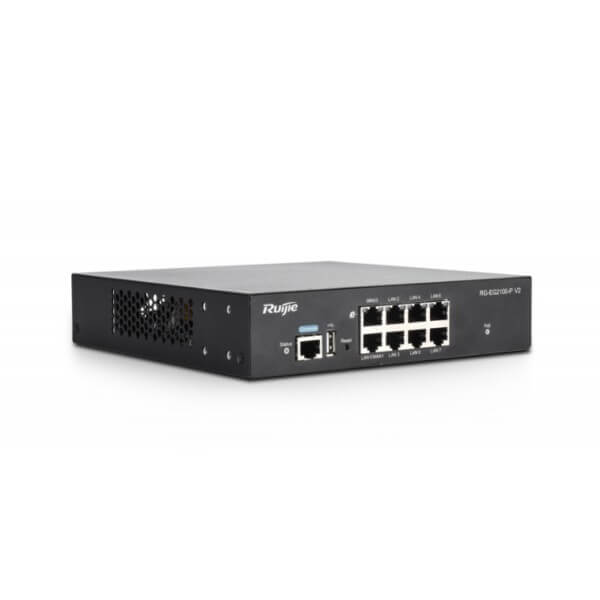

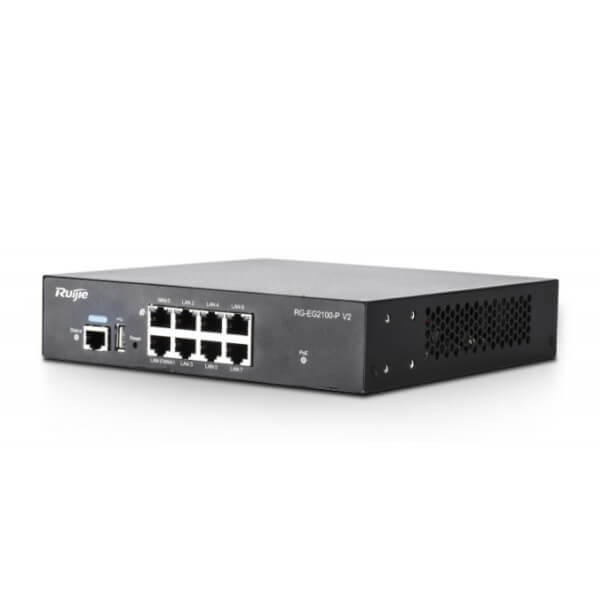

Ruijie RG-EG2100Pv2 Router Dubai

Equipped with high-performance multi-core MIPS hardware architecture, the EG Gateway supports a wide range of features such as high-performance NAT, WAN load balancing, smart flow control, online behavior management, visualized IPsec VPN, web authentication, etc.

Description

Ruijie RG-EG2100Pv2 Router Dubai

Ruijie RG-EG2100Pv2 Router Dubai is a multi-functional Cloud Managed Security Gateway product for various industries. Equipped with high-performance multi-core MIPS hardware architecture, the EG Gateway supports a wide range of features such as high-performance NAT, WAN load balancing, smart flow control, online behavior management, visualized IPsec VPN, web authentication, etc.

Taking advantage of integrated Hard Disk Drive (HDD), the EG Security Gateway can provide local storage for Internet activities logging, which is essential for National Internet Security Compliance in many countries.

Key Features:

Smart Flow Control & AAA Integration

Ruijie RG-EG2100Pv2 Router Dubai is equipped with a smart P2P speed limit, accurate identification of P2P software, and automatic transmission of uplink source quench message to control the downlink traffic and prevent downlink bandwidth exhaustion

It supports over 120 popular application in DPI engine and enjoys FREE for life signature update. Role-based flow control based on usernames and user groups to facilitate the allocation of bandwidths according to different departments. It supports AAA (Authentication, Authorization and Accounting) with web authentication, integration with AAA Software and simple traffic accounting feature

Online Behavior Management

Ruijie RG-EG2100Pv2 Router Dubai provides detailed online behavior management of the intranet users, blocking a variety of non-work-related websites to create a good working atmosphere and improve work efficiency.

VPN Visualization

Ruijie SME Security Gateway has significantly simplified the VPN configuration, which could be completed just by a few clicks, eliminating the need for professional maintenance. The Ruijie RG-EG2100Pv2 Router Dubai enables users to view and control the traffic in the VPN tunnel, establishing a visualized VPN to guarantee the security of key services using VPN.

Traffic Analysis

Equipped with powerful DPI technology, the Ruijie SME Security Gateway collects traffic usage statistics based on users, applications and links for report generation, providing reliable historical data for bandwidth expansion as well as user and application-based bandwidth control policies.

Centralized Cloud Management

Couple with Ruijie Cloud services, the Ruijie RG-EG2100Pv2 Router Dubai is now able to be monitored & managed from the centralized cloud services. Ruijie Cloud is the free cloud-based management platform for all the Security Gateway series. No hardware or servers required to be installed on customer premise. Device monitoring, configuration changes & firmware management can be performed easily in anytime, anywhere & anyway.

Technical Specs

Model	RG-EG2100-P v2
Hardware Specification
CPU	Multi-core MIPS
Fixed Ports	8 1000BASE-T ports (7x POE/POE+)
WAN Ports	Upto 2
Flash	4GB EMMC
Hard Disk	N/A
Memory	512M
Performance & Feature
Performance	1000Mbps (1518 bytes)
	450Mbps (512bytes)
	70Mbps (64 bytes)
Concurrent Session	100,000
Recommended Concurrent User	300
Portal Authentication Capacity	100 (Max Concurrent Users)
Portal Authentication Type	Username/Password Auth (Local, Windows-based AD/LDAP Integration) One-click Authentication; Guest Voucher (Ruijie Cloud required);
Seamless Authentication (Portal)	Support
App Caching	Support
Cache Capacity	750MB
Cache Resources	Android APK files (non-https server required)
Network Protocol	Support TCP/IP protocols, including IP, ICMP, TCP, UDP, etc. Support multiple routing protocols, including static routing, RIP (V1 / V2) and OSPF Support DHCP Relay and DHCP Server Support PPPoE Client Support NAT and multiple NAT ALG including FTP, H.323, DNS, etc. Support ARP, trusted ARP, proxy ARP, etc. Support Ping and Traceroute fault detection
Application Visibility	Support self-developed 43 types of applications / more than 120 application features, customizable protocol identification: P2P : BitTorrent, eMule, Thunder, EDONKEY, FlashGet & etc. Multimedia : YouTube, Facebook Video, WebEx Conference & etc. Social Media : Facebook, Twitter, LinkedIn, Pinterest & etc. VOIP/Chat : Skype, Viber, Google Hangout, Jabber, Facebook Messenger & etc. Instant Messaging/Email : Gmail, MSN, QQ, YAHOO & etc. Software Update : Window, McAfee, Kaspersky, ESET & etc. Cloud-based File Collaboration : GoogleDrive, Dropbox, OneDrive, iCloud & etc. Enterprise Application ：HTTP, FTP, SMTP, POP3, IMAP, Telnet, LOTUS-NOTES, SQL Server, Oracle, Mysql, HTTPS & etc.
URL Filtering	Support custom URLs Support remote HTTP automatic URL library upgrade Local log storage (NAT log, traffic log, URL log, etc.) Support storage on external log server
WAN Load Balancing	Support (upto 2 WAN Port)
IPsec VPN Tunnel	16
Network Security	Anti-ARP Spoofing Defense against malicious attacks from internal and external networks Support secure address binding Block WAN Ping Prevent Port Scan Attack Prevent Fragmentation Attack Prevent ICMP Flood Attack Prevent Teardrop Attack Prevent Ping of Death Attack Prevent Land Attack Prevent Smurf / Fraggle attack Prevent SYN Flood Attack
Ruijie Cloud Integration Feature	Support device health monitoring status Support centralized configuration change management & backup Support Top 10 Application/User traffic visualization Support device firmware management Support event-based alarm notification
