Achieve seamless whole-home coverage with a mesh Wi-Fi system and eliminate weak signal areas once and for all using the new Tplink Deco-M9Plus Dubai .

Description

Tplink Deco-M9Plus Home Wi-Fi Dubai

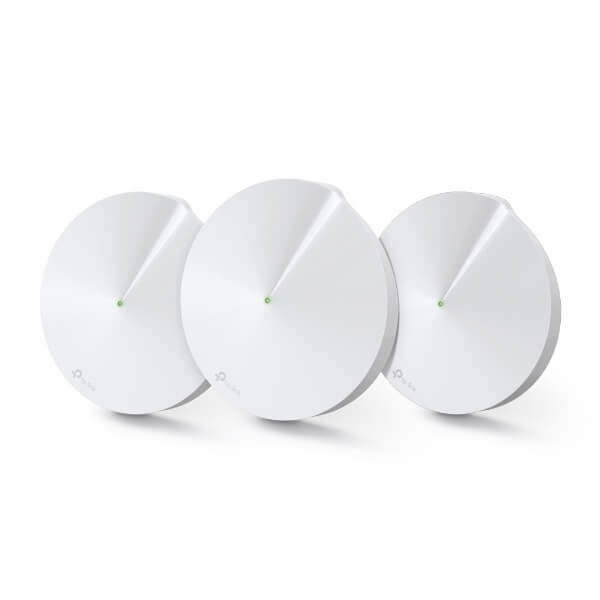

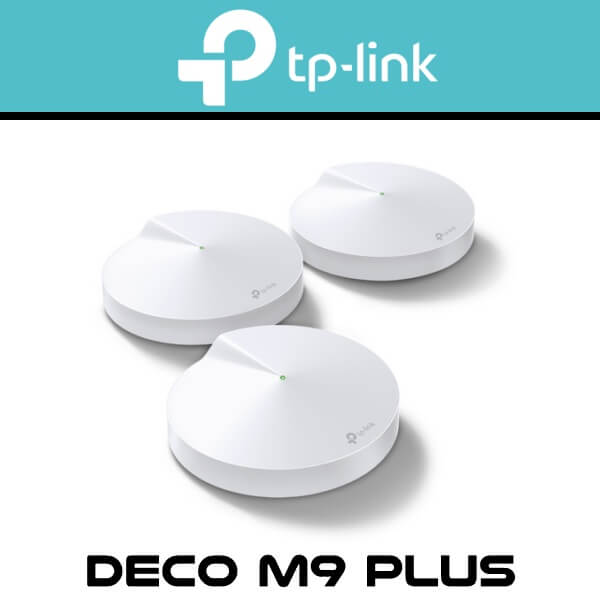

The Tplink Deco-M9Plus Dubai is a high-speed tri-band mesh WiFi system and smart hub in one. Two units cover up to 4,500 sq. ft. and 3-5 bedrooms with seamless WiFi no matter the shape of your home. It can replace ZigBee and Bluetooth smart hubs, connect smart devices and control them all through one app.

Features

  • Seamless Coverage : Achieve seamless whole-home coverage with a mesh Wi-Fi system and eliminate weak signal areas once and for all using the new Tplink Deco-M9Plus Dubai.
  • One Unified Network : Multiple units form a whole-home network that auto-selects the best connection as you move around your home.
  • Broad Coverage : Enjoy Wi-Fi coverage up to 6,500 square feet with just 3 Tplink Deco-M9Plus Dubai units and expand it by just adding more Decos.
  • Fast Connections : Three separate wireless bands up to 2134 Mbps with a dynamic backhaul up to 1.5 Gbps ensure stable, high-speed connections wherever you are in your home.
  • Seamless Management : Tplink Deco-M9Plus Dubai acts as a hub for your wireless and smart home devices.
  • Connect Multiple Devices : Deco handles traffic from even the busiest networks, providing lag-free connection for over 100 devices.
  • Total Security : HomeCareTM provides personalized features, including Parental Controls, Antivirus, and Quality of Service (QoS)* to ensure a safer online experience.
  • Setup Made Easier Than Ever : The Deco app walks you through setup—step by step.

Technical Specs

POWER
AC adapter input 100-240V ~ 50/60Hz 0.8A
AC adapter output 12V ⎓ 2A
HARDWARE FEATURES

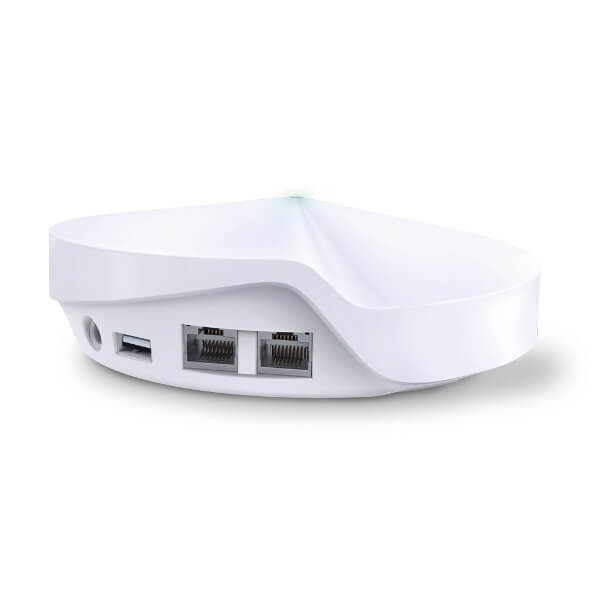

Ports
  • 2 * LAN/WAN Gigabit Ethernet Ports
  • 1 * USB 2.0 Port (reserved)
  • 1 * Power Port
Button 1 Reset button on the underside
External Power Supply 12 V/2 A
Dimensions Φ5.7 in. x 1.8 in. (Φ144 mm × 46 mm)
Antenna Type 8 internal antennas per Deco unit
WIRELESS FEATURES
Wireless Standards
  • IEEE 802.11 ac/n/a 5 GHz
  • IEEE 802.11 b/g/n 2.4 GHz
  • Bluetooth 4.2
  • ZigBee HA1.2
Frequency 2.4 GHz and 5 GHz
Signal Rate
  • 867 Mbps at 5 GHz (1)
  • 867 Mbps at 5 GHz (2)
  • 400 Mbps at 2.4 GHz
Transmit Power
  • FCC : <30 dBm
  • CE : <20 dBm (2.4 GHz)
  • <23 dBm (5 GHz)
Wireless Security WPA-PSK/WPA2-PSK
Advanced Functions
  • Router/ Access Point Mode
  • Optional Ethernet Backhaul
  • TP-Link Mesh Technology :
  • MU-MIMO
  • Auto Path Selection
  • Self-Healing
  • AP Steering
  • Band Steering
  • Beamforming
SOFTWARE FEATURES
Quality of Service WMM
WAN Type Dynamic IP/Static IP/PPPoE
Management Local Management, Remote Management
DHCP Server, Client
Firewall Security SPI Firewall
Protocols Supports IPv4 and IPv6
Advanced Features
  • Parental Controls
  • 3-Year Free Built-In Antivirus
  • QoS (Quality of Service)
  • Reporting
  • Assisted Setup
  • Works with Alexa
  • Automation (for smart home devices)
Guest Network
  • 2.4 GHz guest network * 1
  • 5 GHz guest network * 1
OTHERS
Package Contents Deco M9 Plus (3-pack) :

  • 3 Deco units
  • 1 RJ45 Ethernet Cable
  • 3 Power AdaptersDeco M9 Plus (2-pack) :
  • 2 Deco units
  • 1 RJ45 Ethernet Cable
  • 2 Power Adapters

Deco M9 Plus (1-pack) :

  • 1 Deco unit
  • 1 RJ45 Ethernet Cable
  • 1 Power Adapter
Smartphone/Tablet Requirements
  • iOS 9.0 or later
  • Android 4.4 or later
  • Bluetooth 4.0 or later
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
