Description
Tplink TL-FC311B2 Gigabit Media Converter Dubai
The Tplink TL-FC311B2 Dubai is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
Tplink TL-FC311B2 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311B-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the Tplink TL-FC311B2 Dubai should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC311A-20 is one of the products that can cooperate with TL-FC311B-20.
Features
- 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20 km
Technical Specs
| HARDWARE FEATURES | |
|---|---|
| Interface |
|
| Network Media |
|

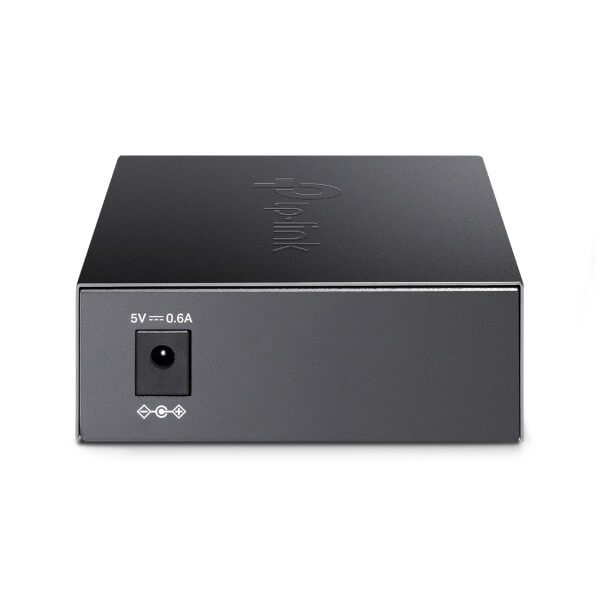

| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Dimensions ( W x D x H ) | 3.7 × 2.9 × 1.1 in (95 × 73 × 27 mm) |
| Wave Length |
|
| NETWORK | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| MEDIA CONVERTER & MODULE | |
| Fiber Type | 9/125 μm single-mode fiber |
| ENVIRONMENT | |
| Operating Temperature | 0˚C to 50˚C (32˚F to 122˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| OTHERS | |
| Package Contents |
|
