Description

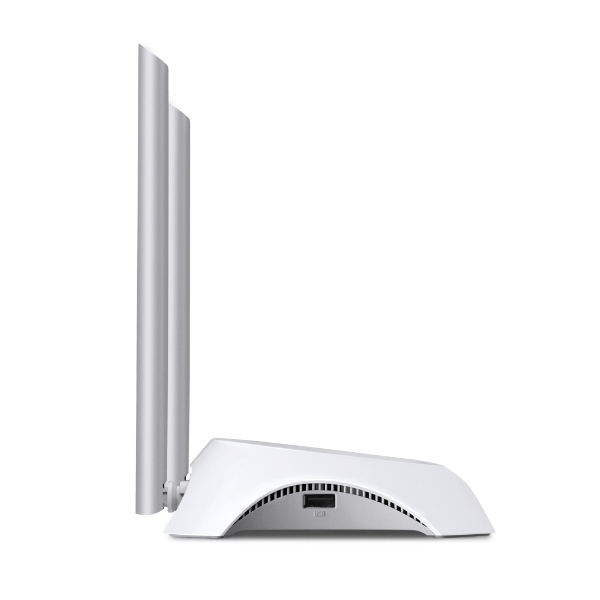

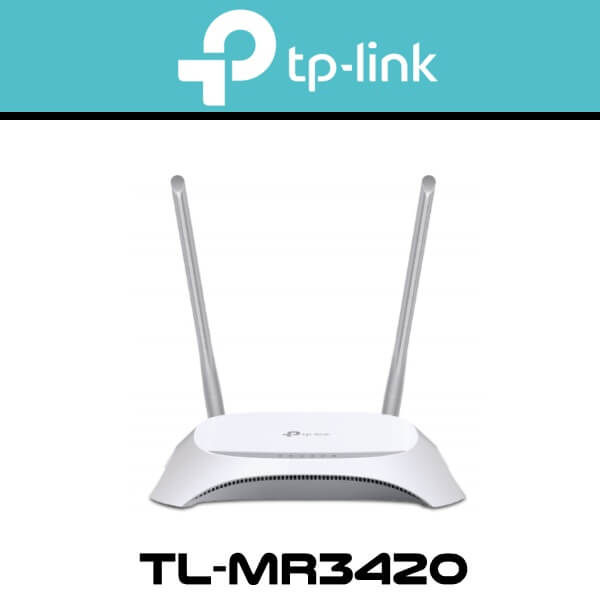

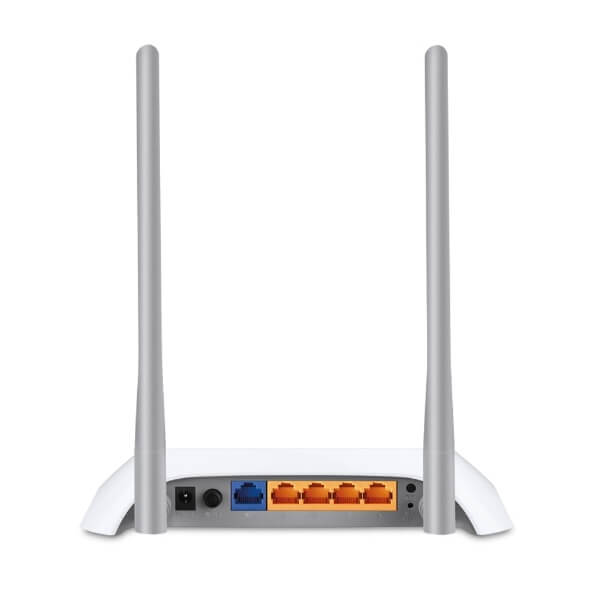

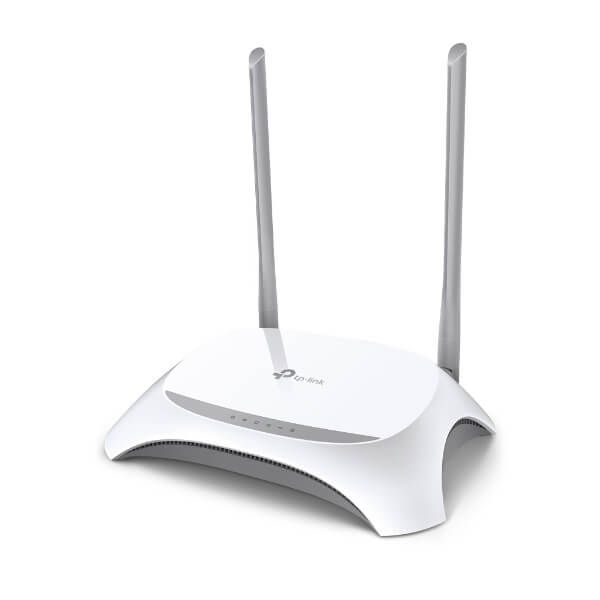

Tplink TL-MR3420 Wi-Fi Router Dubai
TP-LINK’s Tplink TL-MR3420 Dubai 3G/3.75G Wireless N Router allows you to quickly set up a 300Mbps wireless network on-the go and share a 3G/3.75G mobile connection. By connecting a UMTS/HSPA/EVDO USB card to the router, a Wi-Fi hotspot is instantly established allowing users to share an Internet connection anywhere 3G/3.75G coverage is available. So whether you’re on the train, camping, or at a construction site, you’ll have a reliable wireless connection to accommodate your networking needs.
Nothing is more frustrating than losing your Internet connection in the middle of your work. To avoid such interruptions and provide our customers with an always-online connection, TP-LINK is introducing the Tplink TL-MR3420 Dubai, a robust 3G/3.75G wireless N router with true 3G/WAN failover capability.
You can set a primary link, 3G/3.75G or WAN (xDSL/Cable). Tplink TL-MR3420 Dubai switches to the secondary link when your primary service is interrupted. Once the service is restored, the router will automatically failback to the primary link–keeping your business online with the minimal interruption to users.
Quick Features
- Compatible with UMTS/HSPA/EVDO USB modems, tested in the field 3G/WAN failover guarantees an ‘always-online’ Internet connection
- Wireless N speed up to 300Mbps
- Supports PPPoE, Dynamic IP, Static IP, PPTP, L2TP Cable Internet access
- SST technology dramatically increases link robustness and stability
- CCA technology enhances your signal stability by automatically avoiding channel conflicts
- Wireless security encryption easily at the push of the QSS button
- WDS wireless bridge provides seamless bridging to expand your wireless network
- IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
Technical Specs
| General | |
| Type | 3G Routers |
| Installation Features | Resource CD |
| Model | 3G/4outer |
| Part Number | TL-MR3420 |
| Controls | WPS/Reset Button, Wireless On/Off Switch, Power On/Off Button |
| In The Box | TL-MR3420 3G/4G Wireless N Router, 2 Antennas, Power Supply Unit, Ethernet Cable, Resource CD, Quick Installation Guide |
| Brand | TP-Link |
| Compatible ISP | Hathway,ACT,Sify,Airtel ,You,Spectranet |
| Operating Conditions | |
| Operating Humidity | Operating: 10 % – 90 % Non-condensing, Storage: 5 % – 90 % Non-condensing |
| Temperature | Operating: 0DegC – 40DegC degree C |
| Power | |
| Power Supply | 9 V DC, 0.85 A |
| System Requirements | |
| Supported Protocols
Operating System |
NT, UNIX, XP, NetWare, Windows: 98SE, Linux, 2000, Vista, 7, MAC OS |
| Supported Protocols | |
| Standard IEEE | IEEE 802.11b/g/n |
| Network Features | |
| Frequency | 2.4 GHz |
| Frequency Band | Single Band |
| Speed | |
| Wireless Speed | 300 Mbps |
| LAN/WAN | 10/100 |
| Connectivity | |
| USB | USB 2.0 |
| Antennae | External |
| Number of LAN ports | 4 |
| Number of WAN ports | 1 |
| Number of USB Ports | 1 |
| WAN | RJ-45 |
| LAN | RJ-45 |
| Number of Antennae | 2 |
| Antennae Capacity | 5 dBi Omni Directional, Detachable, Reverse SMA |
| Security | |
| Encryption | WPA-PSK/WPA2-PSK, Support 64/128 bit WEP |
| Firewall | NAT Firewall, SPI Firewall, Wireless MAC Filtering, IP Filtering, Packet Filtering, Application Filtering, URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death |
| Additional Features | |
| Other Features | Compatible with LTE / HSUPA / HSDPA / UMTS / EVDO USB Modems, Parental Control, 5 dBi Antenna Gain, EIRP: 20 dBm, Web Based Configuration(HTTP), Web Based Firmware Upgrade |
| SSID Support | Yes |
| Certification | CE Certification, FCC Certification, RoHS Certification |
| VPN | PPPoE, Dynamic IP, Static IP, PPTP, L2TP |
| Dimensions | |
| Height | 44 mm |
| Width | 138 mm |
| Depth | 204 mm |
