Featured with 8 10/100/1000Mbps ports, Tplink TL-SG1008D Dubai greatly expands your network capacity, enabling instant large files transferring.

Description

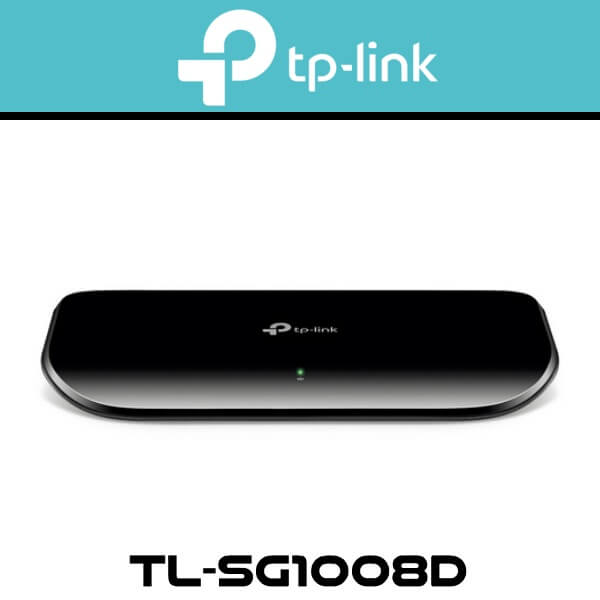

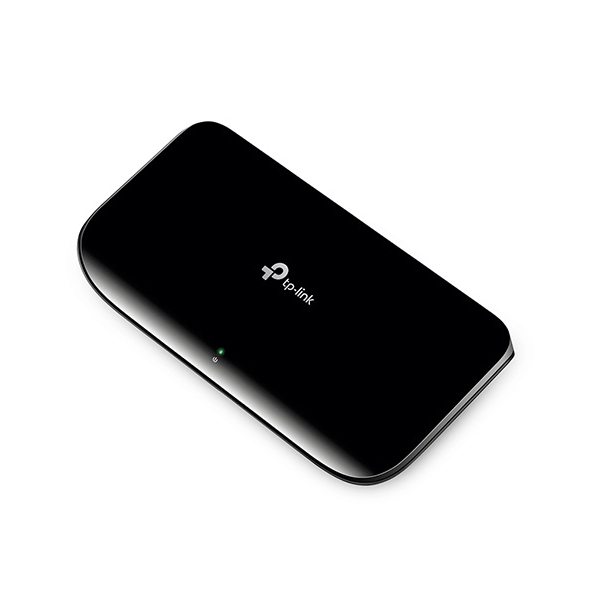

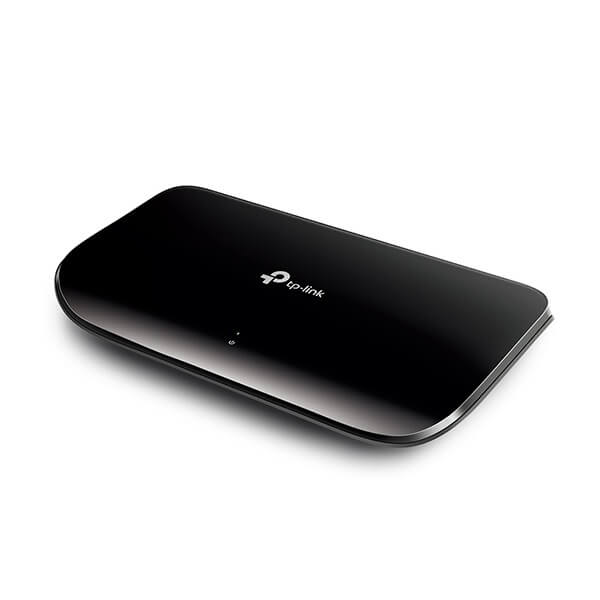

Tplink TL-SG1008D Network Switch Dubai

The new Tplink TL-SG1008D Dubai is an 8-port Gigabit desktop switch which has been designed t offer its users an east way to make the transition to Gigabit Ethernet. It enables you to increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Tplink TL-SG1008D Dubai boasts of innovative energy-efficient technology which allows for lowering of power consumption, thus proving to be an eco-friendly solution for your home or office network.

Features

Gigabit Switch

Featured with 8 10/100/1000Mbps ports, Tplink TL-SG1008D Dubai greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation Tplink TL-SG1008D Dubai 8-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

  • Power down Idle Ports
    • When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The Tplink TL-SG1008D Dubai can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
  • Power Budget According to Cable Length
    • Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Technical Specs

HARDWARE FEATURES
Standards and Protocols
  • IEEE 802.3i
  • 802.3u
  • 802.3ab
  • 802.3x
Interface

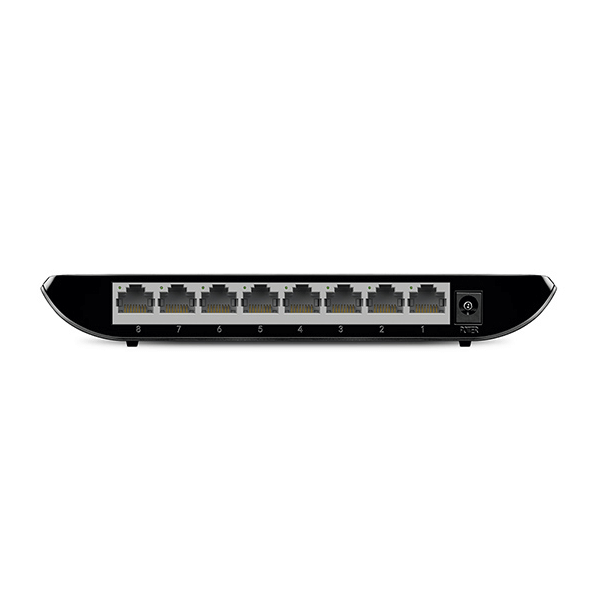

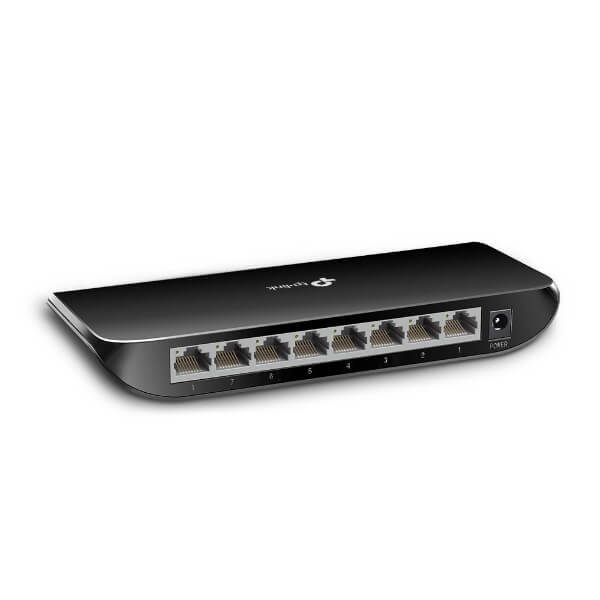

  • 8 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity Fanless
Physical Security Lock No
External Power Supply External Power Adapter
(Output : 9VDC / 0.6A)
Jumbo Frame 15 KB
Switching Capacity 16 Gbps
Dimensions ( W x D x H ) 7.1 × 3.5 × 1.0 in.
(180 × 90 × 26 mm)
Max Power Consumption 4.6W
Max Heat Dissipation 15.8 BTU/h
SOFTWARE FEATURES
Transfer Method Store and Forward
MAC Address Table 4K
Advanced Functions
  • Green Technology, saving power up to 80%
  • 802.3x Flow Control, Back Pressure
OTHERS
Certification FCC, RoHs
Package Contents
  • 8-Port Gigabit Desktop Switch TL-SG1008D
  • Power Adapter
  • Installation Guide
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~60℃ (-40℉~140℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
