Tplink TL-WA901N Dubai



Tplink TL-WA901N Dubai

Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, Tplink TL-WA901N Dubai simultaneously works through three antennas with smart antenna technology to Tx and Rx to overcome the interference and signal degradation when traveling long distances.

Description

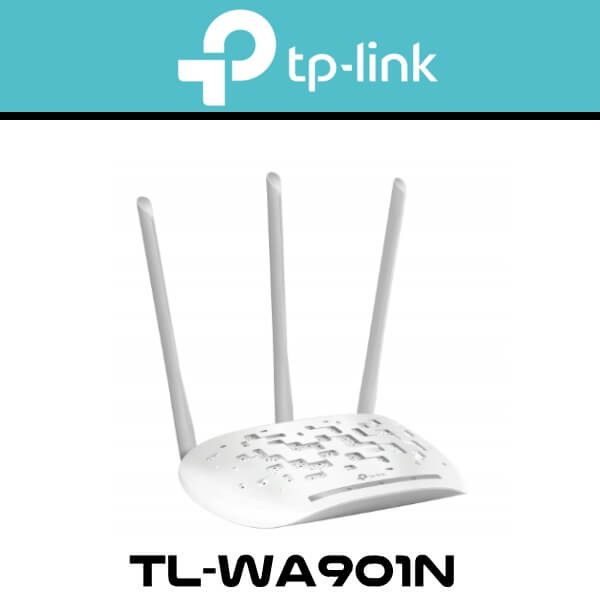

Tplink TL-WA901N Access Point Dubai

The TP-LINK Wireless N Access Point Tplink TL-WA901N Dubai is designed to establish or expand a scalable high-speed wireless N network or to connect an Ethernet-enabled device such as a game console, digital media adapter, printer, or network-attached storage device to a wireless network. The AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or any other application that you may wish to use.

Features

Wireless N Speed & Range

Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, Tplink TL-WA901N Dubai simultaneously works through three antennas with smart antenna technology to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

Multiple Operating Modes
Easy to Build WLAN

Supports Client, Multi-SSID, Range Extender, and AP operation modes to enable various wireless applications to give users a more dynamic and comprehensive experience when using your AP. Multiple operating mode also helps you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone.

Passive PoE Supported
More Flexible Deployment

The Tplink TL-WA901N Dubai is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.

Technical Specs

HARDWARE FEATURES

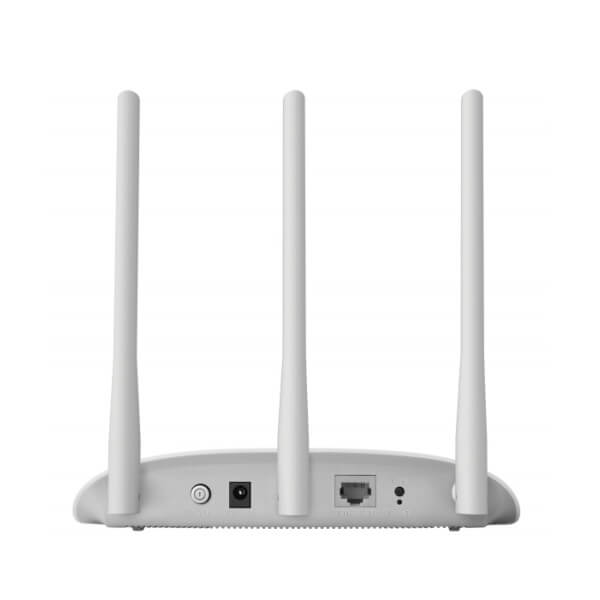

Interface
  • 1× 10/100M Ethernet Port(RJ45)
  • Support Passive PoE
Button Power On/Off Button, Reset Button, WPS Button
External Power Supply 9VDC / 0.85A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.7 × 5.3 × 1.4 in (195 × 134 × 36 mm )
Antenna Type 3 Fixed Omni-Directional Antennas
WIRELESS FEATURES
Frequency 2.4 GHz
Signal Rate 450 Mbps at 2.4 GHz
Reception Sensitivity
  • 11g 54M : -76dBm
  • 11n 20Mbps : -73dBm
  • 11n 40Mbps : -70dBm
Transmit Power CE : <20dBm; FCC : <30dBm
Wireless Modes Access Point, Range Extender, Client, Multi-SSID
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM,
Wireless Statistics
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions
DHCP Server, DHCP Client List
Quality of Service WMM
Management SNMP
Advanced Functions Up to 30 meters PoE is supported
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • Wireless N Access Point TL-WA901N
  • Power Adapter
  • Passive PoE Power Injector
  • RJ45 Ethernet Cable
  • Quick Installation Guide
System Requirements
  • Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
  • NetWare, UNIX or Linux
  • Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
  • Java-enabled browser
  • Cable or DSL Modem
  • Subscription with an Internet Service Provider (for Internet access)
Environment
  • Operating Temperature : 0°C~40°C (32°F~104°F)
  • Storage Temperature : -40°C~70°C (-40°F~158°F)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
Protocol Support IPv4, IPv6
