Description

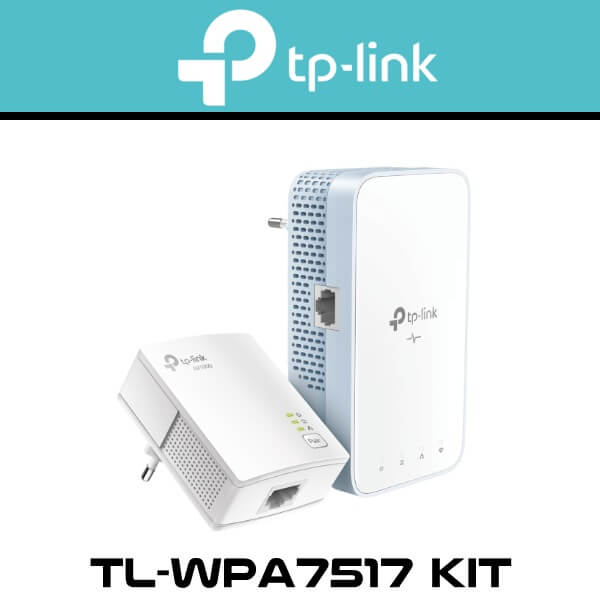

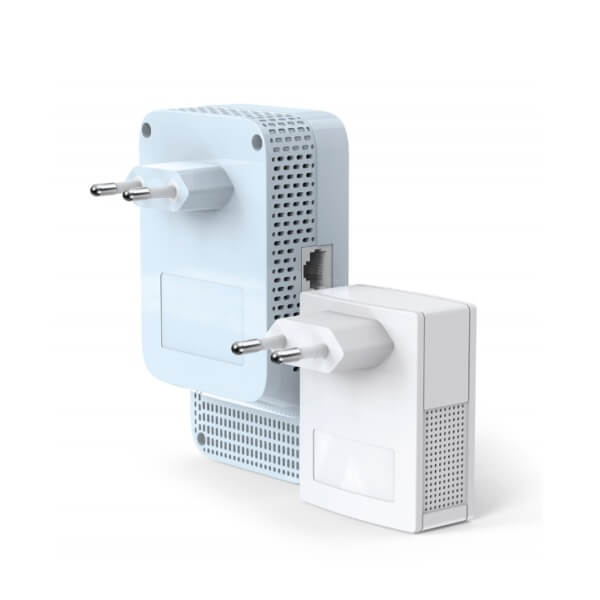

Tplink TL-WPA7517 KIT Powerline Adapter Dubai
Tplink TL-WPA7517 KIT Dubai transforms your home’s existing electrical circuit into a Gigabit network, and brings wired and wireless network to anywhere there is a power outlet. Using advanced HomePlug AV2 technology, TL-WPA7517 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.
Features
- Homeplug AV2 Standard Compliant Powerline Adapter – Tplink TL-WPA7517 KIT Dubai provides up to 1000Mbps Ethernet over power and up to dual band Wi-Fi. Ideal to be an Ethernet extender which can easily go over walls
- One-Touch Wi-Fi Configuration – One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire powerline network
- Gigabit Ethernet Port – Provide secure wired network to desktop, smart TVs, or game consoles
- Plug, Pair and Play – Quickly set up a secured powerline network with no configuration required to enjoy fast, seamless wired/ wireless connection in minutes
- OneMesh Compatible – Tplink TL-WPA7517 KIT Dubai works with TP-Link OneMesh router to form a unified mesh network for seamless streaming while moving around your home
- Please note that powerline adapters must be deployed in sets of two or more
- Kindly Reminder : Powerline Adapters must be on the same electrical circuit for connectivity. Requires direct outlet plug in. Does not work with surge protectors. Appliances and devices running on the same circuit may affect powerline performance.
- Tplink TL-WPA7517 KIT Dubai is compatible with all TP-Link AV2000, AV1300, AV1200, Av1000, AV600, AV500, AV200 Powerline adapter
Technical Specs
Hardware Features
- Plug Type : EU
- Standards and Protocols : HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)
- Interface :
- TL-WPA7517 : 1 Ethernet Port
- TL-PA7017 : 1 Ethernet Port
- Button : Pair, Reset, Wi-Fi Clone, LED On/Off
- Power Consumption :
- TL-WPA7517 : Maximum : 11W, Typical : 6.5W
- TL-PA7017 : Maximum : 2.9W, Typical : 2.6W
- LED Indicator : Power, Powerline, Ethernet, Wi-Fi (2.4GHz), Wi-Fi (5GHz)
- Dimensions ( W x D x H ) :
- TL-WPA7517 : 2.7 × 1.4 × 4.9 in. (69.5 × 35 × 124.1 mm)
- TL-PA7017 : 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)
- Range : Up to 300 meters/1000 feet over existing electrical wiring
- Compatibility : Compatible with all HomePlug AV & AV2 standard powerline adapters
- Transmission Speeds : Powerline : Up to 1000 Mbps
- Ethernet : 10/100/1000 Mbps
Wireless Features :
Wireless Security : WPA-PSK / WPA2-PSK, WEP Encrptions
Software Features
- Management : tpPLC : Scan the QR code to download TP-Link tpPLC App. Or download new tpPLC Utility on PCs : www.tp-link.com.
- Modulation Technology : OFDM (PLC)
- Encryption : Powerline : 128-bit AES Encryption
- Wireless : WPA-PSK / WPA2-PSK, WEP Encryptions
Others
- Certification : CE, RoHS
- System Requirements : Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
- Environment : Operating Temperature : 0°C~40°C (32°F~104°F)
- Operating Humidity : 10%~90% non-condensing
What’s in the box
- 1 x V1000 Powerline Wi-Fi Kit : TL-WPA7517 & TL-PA7017
- 2 x Ethernet Cable
- 1 x Quick Installation Guide
