The Ubiquiti ACB-AC Dubai can be powered by and provide power to an airMAX CPE using 24V PoE.

Description

Ubiquiti ACB-AC Wi-Fi Access Point Dubai

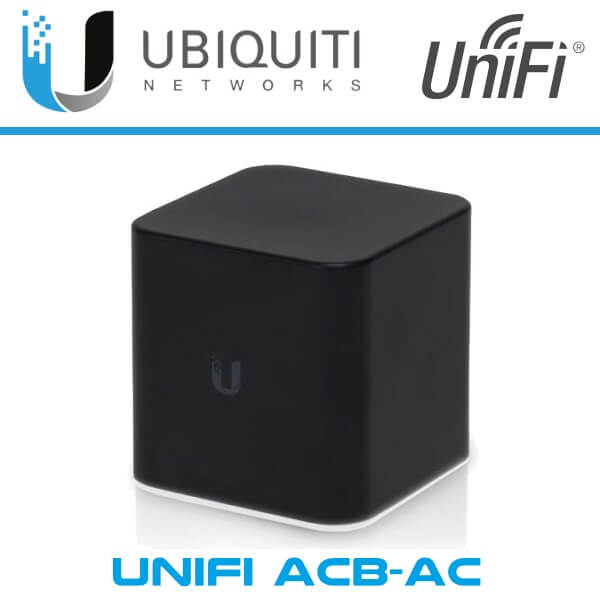

The Ubiquiti ACB-AC Dubai is a Wi-Fi access point for use in your residential customer deployments. The Ubiquiti airCube AC features 4 x Gigabit Ethernet Ports, 24V PoE Passthrough for airMAX CPE and Dual-Band, 802.11ac, 2×2 MIMO Technology.

With a compact design and integrated 24V PoE passthrough, the airCube Home Wi-Fi Access Point Dubai is a home Wi-Fi access point designed to interoperate with airMAX CPEs

Features:

  • Super Antenna
    • Innovative Super Antenna provides wide-area coverage beyond regular Wi-Fi access points.
  • 24V PoE Passthrough
    • The airCube Home Wi-Fi Access Point Dubai can be powered by and provide power to an airMAX CPE using 24V PoE.
  • UNMS Mobile Support
    • Use the intuitive UNMS Mobile app for iOS and Android to install and configure Ubiquiti ACB-AC Dubai.
  • Sleek Design

    • The Ubiquiti ACB-AC Dubai’s attractive design means it can be positioned anywhere in the room, improving Wi-Fi performance.

Technical Details

Dimensions 87.80 x 89.50 x 89.25mm (3.46 x 3.52 x 3.51″)
Weight 280 g (9.88 oz)
Management Interface Wi-Fi / Ethernet

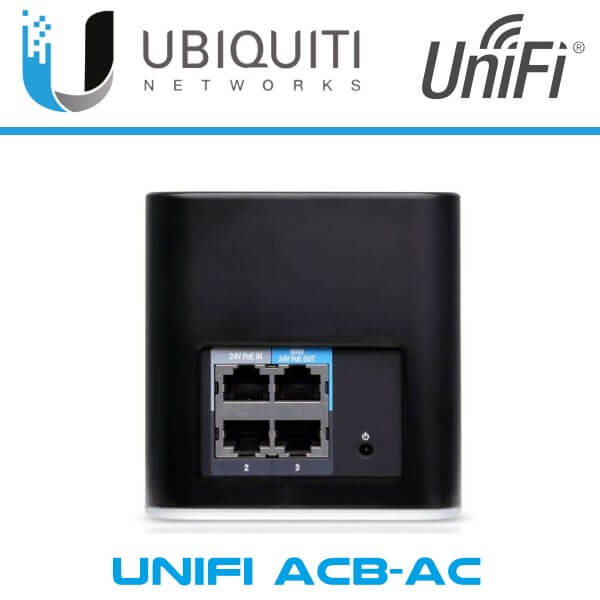

Networking Interface (4) Gigabit Ethernet Ports
LED Status
Operating Frequency 2.4 GHz
5 GHz
Antenna Gain
  • 2.4 GHz : 4 dBi
  • 5 GHz : 5 dBi
Max. Speeds
  • 2.4 GHz : 300 Mbps
  • 5 GHz : 866.7 Mbps
Max. Power Consumption 8.5W
Max. TX Power 22 dBm
Power Supply 24VDC
Power Method 24VDC, 0.83A PoE 24V In on Ethernet Port 1
PoE Out Controllable 24V PoE Out (4, 5+, 7, 8 ) on WAN Port
Supported Voltage Range 22-26V
Operating Temperature -10 to 50° C (14 to 122° F)
Operating Humidity 5 to 95% Noncondensing
ESD/EMP Protection ± 24 kV Contact / Air
Certifications CE, FCC, IC
