Ubiquiti AF60US Dubai



Ubiquiti AF60US Dubai

Made from aluminum and UV-stabilized plastic, the Ubiquiti AF60US Dubai can operate between -40 and 140°F, has a wind survivability of 125 mph, and has ESD/EMP protection of about 24kV.

Description

Ubiquiti AF60US Wi-Fi Bridge Dubai

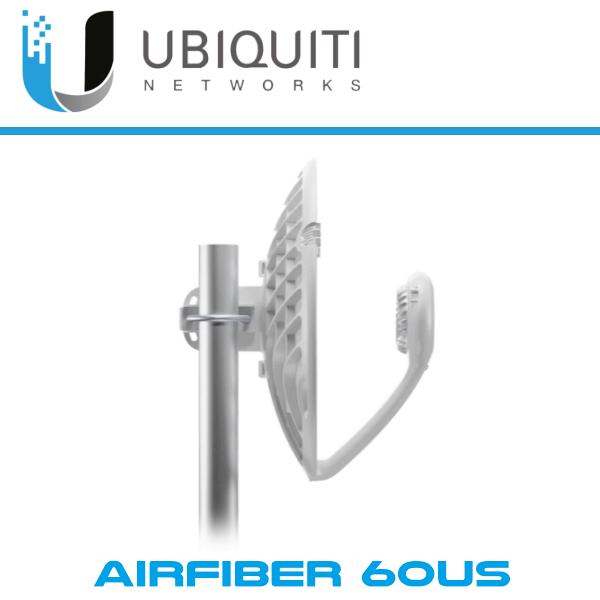

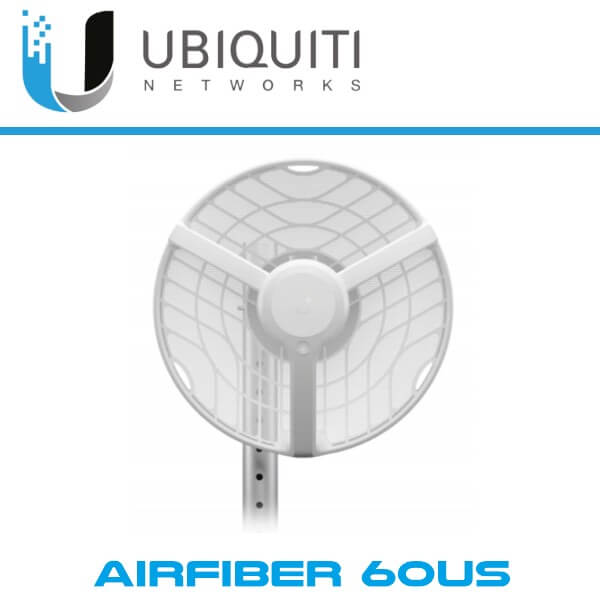

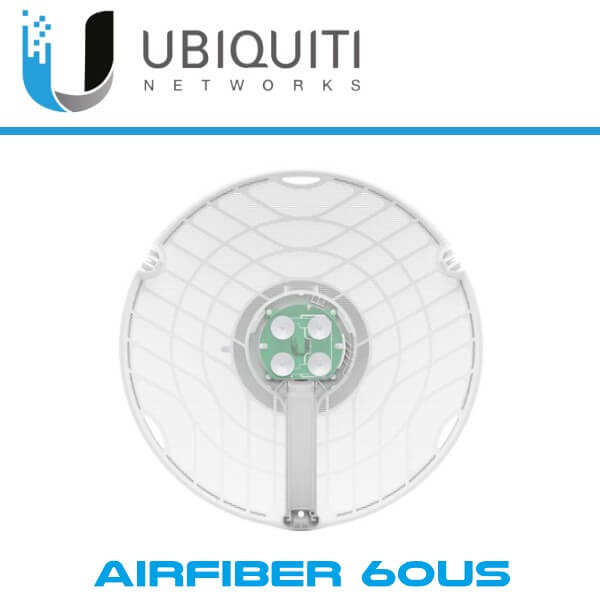

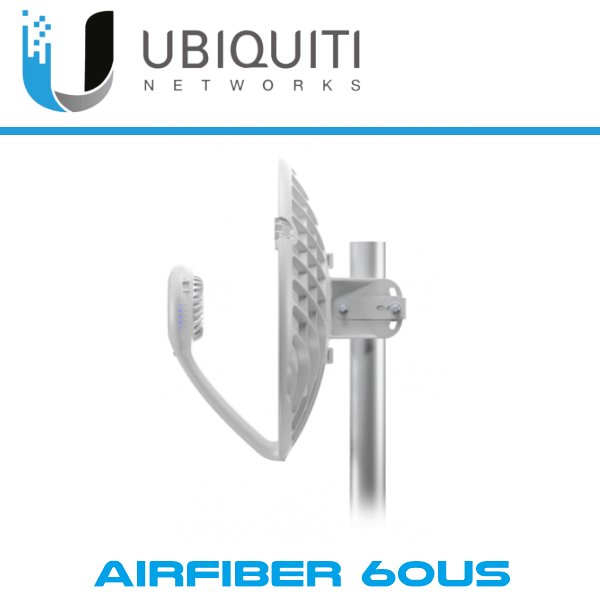

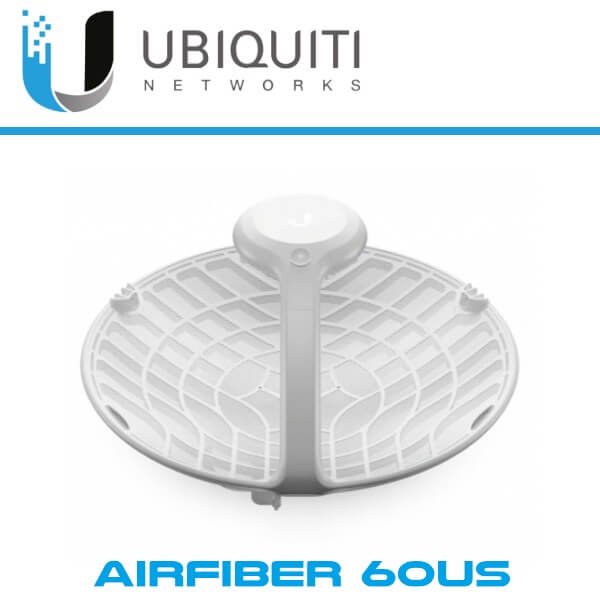

Create a reliable long-distance, point-to-point connection between networks with the Ubiquiti AF60US Dubai Wireless Bridge from Ubiquiti Networks. This 60 GHz outdoor dish antenna is designed to provide low-interference and high-throughput connectivity with a range of up to 1.24 miles and a maximum data throughput of 1.8 Gb/s. Ubiquiti AF60US Dubai features 38 dBi gain at 60 GHz and 11 dBi on the 5 GHz radio backup, with a combined transmission power of 25 dBm. Made from aluminum and UV-stabilized plastic, the Ubiquiti AF60US Dubai can operate between -40 and 140°F, has a wind survivability of 125 mph, and has ESD/EMP protection of about 24kV. A pole mounting kit is included alongside a 24V Gigabit PoE adapter, which connects to the dish’s Gigabit Ethernet port to provide power and data passthrough. Other features include WPA2-PSK and WPA2 Enterprise signal encryption, an integrated GPS, and automatic switching between the 2 GHz and 1 GHz width channels for optimal link performance.

Features:

  • Long Distance Connection
    • The Ubiquiti AF60US Dubai wireless bridge has a range of up to 1.24 miles.
  • Fast Data Throughput
    • The dish has a maximum throughput of 1.8 Gb/s at the 60 GHz radio band with a 5 GHz backup radio. It connects to your network via the built-in Gigabit Ethernet port and includes a 24V PoE adapter for power.
  • High-Powered Dish
    • The Ubiquiti AF60US Dubai and integrated antenna have a 38 dBi signal gain at 60 GHz and 11 dBi at 5 GHz, with a combined transmit power of 25 dBm. It automatically switches between the 1 GHz and 2 GHz channel widths on the 60 GHz link to optimize performance.
  • Made for the Outdoors
    • Made from aluminum and UV-stabilized plastic, the Ubiquiti AF60US Dubai can operate between -40 to 140°F, has a wind survivability of 125 mph, and has ESD/EMP protection of about 24kV. A pole mounting kit is included.
  • Checking Status
    • Easy-to-read LEDs indicate the dish’s power, Ethernet, signal, and GPS status.

Specifications

Wireless
Wireless Frequency Bands 5 GHz, 60 GHz
MU-MIMO Support Yes
Antenna Gain 11 to 38 dBi
Transmit Power 25 dBm
Bluetooth None
Throughput 1800 Mb/s
Interface
Ports 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
Security
Wireless Security WPA2, WPA2-PSK
Hardware
Storage Capacity None
Electrical
DC Input Power 22 to 26 VDC at 0.5 A
Power Consumption 11 W
Environmental
Operating Temperature -40°F to 140°F / -40°C to 60°C
Operating Humidity 5% to 95%
General
Mount Options Pole
Range 1.24 Miles / 2 km
Dimensions 16.26 x 16.26 x 12.6″ / 413 x 413 x 320 mm
Weight 3.97 lb / 1.8 kg
Packaging Info
Package Weight 7.615 lb
Box Dimensions (LxWxH) 22.9 x 19.1 x 6.8″
