Ubiquiti airFiber AF-11-DUP Dubai



Ubiquiti airFiber AF-11-DUP Dubai

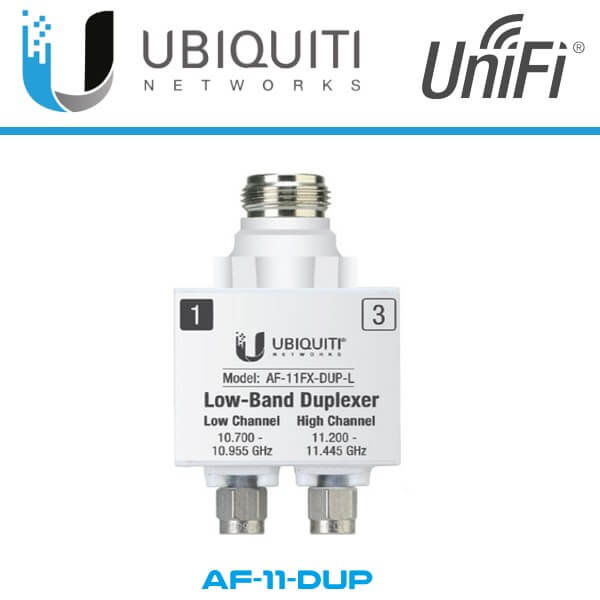

The AF-11-DUP Dubai features a unique modular duplexer design to suit multiple frequency configurations. Each AF-11-DUP Dubai radio can be configured to support any allowable frequency by simply changing the duplexers (sold separately) for high‑band or low‑band use in the 10.7 – 11.7 GHz allocation. Each duplexer has a low channel and a high channel that can be configured by simply reversing the position of the duplexer.

Description

Ubiquiti airFiber AF-11-DUP Dubai

The Ubiquiti airFiber AF-11-DUP features a unique modular design to suit multiple frequency configurations. Each AF-11-DUP Dubai radio can be configured to support any allowable frequency by simply changing the duplexers for high-band or low-band use in the 10.7 to 11.7 GHz allocation.

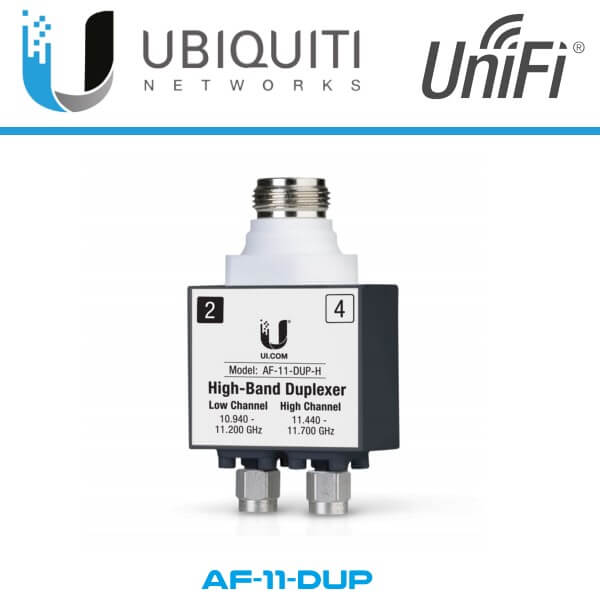

Designed for use with the airFiber Backhaul Radio, the AF-11FX-DUP-H airFiberX 11GHz High-Band Duplexer Dubai from Ubiquiti Networks supports a portion of the 10.7 to 11.7 GHz frequency for enhanced wireless connectivity.

Ubiquiti airFiber AF-11-DUP Dubai  Features:

  • Optimized Channels
    • The airFiber AF‑11FX can use single (SISO) or bonded (MIMO)* channels, depending on your specific licensing requirements. The AF‑11FX also features different channel width sizes to suit your deployment needs, and you can independently configure TX and RX channel frequencies.
  • Reconfigurable Duplexers
    • The AF-11-DUP Dubai features a unique modular duplexer design to suit multiple frequency configurations. Each AF-11-DUP Dubai radio can be configured to support any allowable frequency by simply changing the duplexers (sold separately) for high‑band or low‑band use in the 10.7 – 11.7 GHz allocation. Each duplexer has a low channel and a high channel that can be configured by simply reversing the position of the duplexer.
  • Highest Performance Value
    • The compact AF-11-DUP Dubai supports high-order constellations – up to 1024QAM – allowing it to deliver the greatest spectral efficiency in its class.
      * SISO mode configuration requires either one low‑band duplexer or one high‑band duplexer.
      MIMO mode configuration requires a second low-band or high-band duplexer. Duplexers
      are sold separately.
  • Advanced Engineering
    • Ubiquiti’s INVICTUS™ 2 custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications, providing superior performance, long-range capability, and higher delivered throughput.
  • Deployment Flexibility
    • The airFiber AF-11-DUP Dubai provides a number of deployment options including:
      Power Source Options
      Support for PoE or DC power gives you the flexibility to power the AF-11-DUP Dubai separately from Ethernet traffic.
      • PoE power can be supplied on the DATA port, using the provided PoE adapter.
      • DC power can be supplied using the terminal block.
  • Versatile, Ruggedized N-Type Connectors
    • N-connectors allow the AF‑11FX to be used with either the Ubiquiti AF‑11G35 antenna or a variety of
      commonly available.

Ubiquiti Networks AF-11FX-DUP-H Specs

Frequency 10.940 to 11.200 GHz / 11.440 to 11.700 GHz
Dimensions Not specified by manufacturer
Weight Not specified by manufacturer
Packaging Info
Package Weight 0.295 lb
Box Dimensions (LxWxH) 2.8 x 1.65 x 0.85″
