Ubiquiti airMAX AM-M-VG5-TI Dubai



Ubiquiti airMAX AM-M-VG5-TI Dubai

The Ubiquiti airMAX Titanium Sector AM-V5G-TI Dubai is a 5GHz Variable Beam Sector, 60-120 degree antenna. With carrier-class 2×2 MIMO technology, this PtMP BaseStation is specifically engineered for optimal performance when paired with a RocketM Titanium.

Description

Ubiquiti airMAX AM-M-VG5-TI Dubai

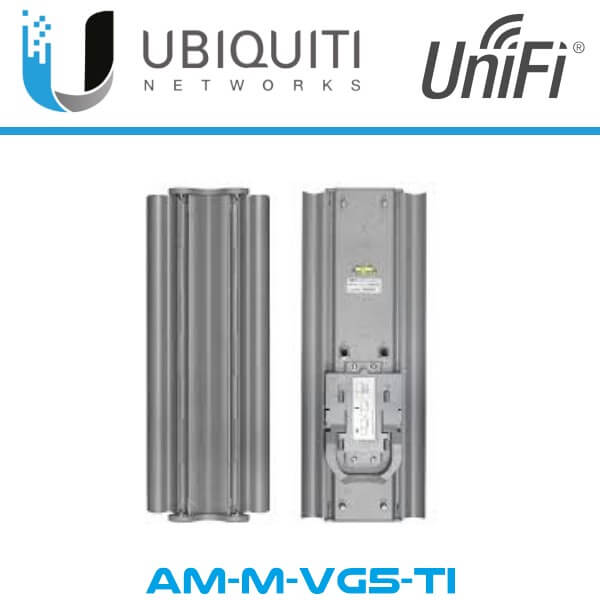

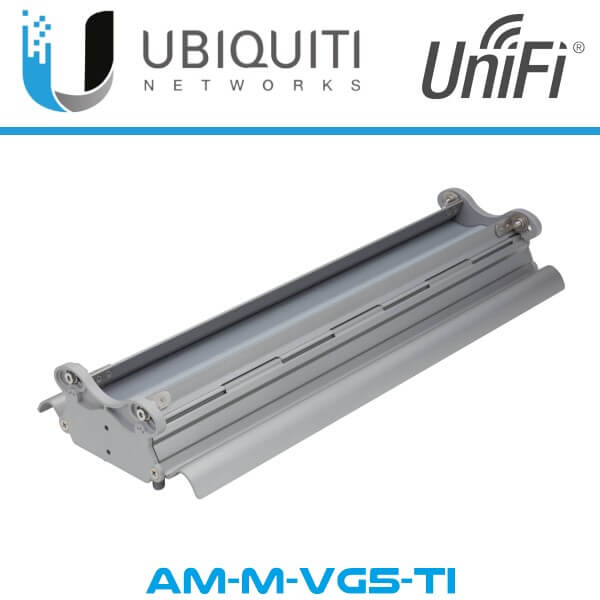

The Ubiquiti airMAX AM-M-V5G-Ti Dubai is a sector antenna which contains advanced RF isolation and variable beamwidth configuration. This high class 2×2 MIMO antenna offers the best performance, especially in co-location deployments, and uses both vertical and horizontal polarisations.

The Ubiquiti airMAX Titanium Sector AM-V5G-TI Dubai is a 5GHz Variable Beam Sector, 60-120 degree antenna. With carrier-class 2×2 MIMO technology, this PtMP BaseStation is specifically engineered for optimal performance when paired with a RocketM Titanium.

Ubiquiti AM-M-V5G-Ti Key Features

  • Carrier-Class 2×2 MIMO PtMP Base Station
  • Adjustable Beamwidth Configuration
  • Reduced Co-Location Interference
  • Breakthrough Design and Performance
    • The innovative airMAX® Sector Antennas feature carrier-class construction and 2×2, dual-polarity performance.
  • Reduced Interference, Higher Gain
    • Highly resistant to noise interference, the airMAX® Sector Antennas provide superior gain and beam performance for high-capacity, multipoint networks.
  • RF Isolation and Beamwidth Options
    • The versatile airMAX® Titanium Sector models feature advanced RF isolation and adjustable beamwidth options: 60°, 90° or 120°.
  • Industrial-Strength Construction
    • airMAX® Antennas are designed with robust mechanical design for outdoor application use.
  • Plug and Play Integration
    • Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.
  • Compatibility
    • The Ubiquiti airMAX AM-M-V5G-Ti is compatible with the Rocket M5.

Ubiquiti AM-M-V5G-Ti – Technical Specifications

General

  • Dimensions 385 x 149 x 76 mm
  • Weight 3.25 kg (with Brackets)
  • Frequency Range 5.45 – 5.85 GHz
  • Beamwidth Angles 60°/ 90°/ 120°
  • Gain (Beamwidth Dependent)
    17 dBi @ 60°
    16 dBi @ 90°
    15 dBi @ 120°
  • Elevation Beamwidth 8°
  • Electrical Downtilt 3°
  • Wind Survivability 125 mph
  • Wind Loading 15 lbf @ 100 mph
  • Polarisation Dual Linear
  • Cross-Pol Isolation 25 dB Typical
  • F/B Ratio 35 dB Typical
  • Max. VSWR 1.7:1
    RF Connectors 2 RP-SMA Connectors (Weatherproof)
  • Compatible Radios RocketM5 Titanium
  • RocketM5
  • RocketM5 GPS
  • Mounting Pole Mount (Kit Included)
  • ETSI Specification EN 302 326 DN2
  • Certifications CE, FCC, IC
