Ubiquiti AM-5AC22-45 Dubai



Ubiquiti airMAX AM-5AC22-45 Dubai

The Ubiquiti airMAX Sector ac 22 dBi 45 Degrees (AM-5AC22-45) Dubai antenna feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket 5ac radios. They are also compatible with RocketM5 models, however, optimal performance requires the Rocket5ac.

Description

Ubiquiti airMAX AM-5AC22-45 Dubai

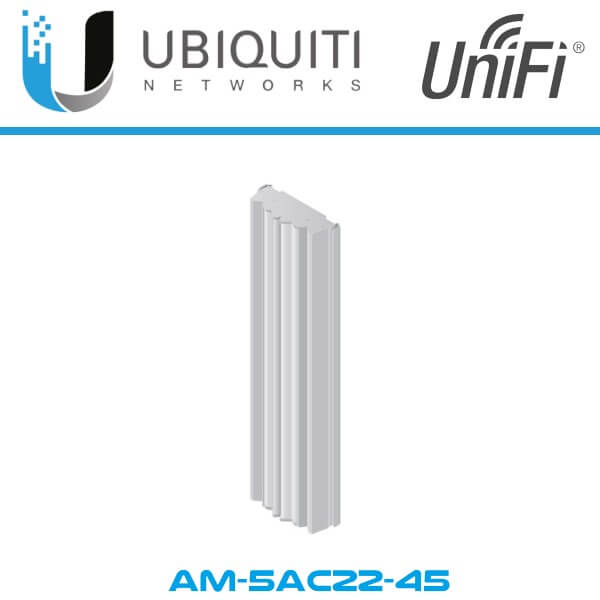

AM-5AC22-45 is a Ubiquiti Networks airMAX sector antenna designed to be used with Rocket 5AC radios. It operates on 5GHz frequency with 22dBi and 45deg; beamwidth.

The airMAX 802.11ac Sector Antenna Dubai is highly resistant to noise interference in co-location deployments and feature an innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.

With improved Signal-to-Noise Ratio (S/N or SNR), the airMAX 802.11ac Sector Antenna Dubai allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate).

Ubiquiti airMAX (AM-5AC22-45) Dubai Features

  • Breakthrough Design and Performance
    The airMAX® ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2×2, dual-polarity performance for airMAX networks.
  • Superior Noise Immunity
    Featuring reduced sidelobes and backlobes, the airMAX® ac Sector Antennas are engineered to reject noise interference in co‑location deployments.
  • Market-Leading Beam Performance
    Compare the diagram of the airMAX® ac Sector Antenna, model AM-5AC22-45, to the diagram of a standard sector antenna, and note the superior noise immunity and beam performance of the AM-5AC22-45.
  • Industrial-Strength Construction
    airMAX® ac Antennas are designed with robust mechanical design for outdoor application use.
  • Plug and Play Integration

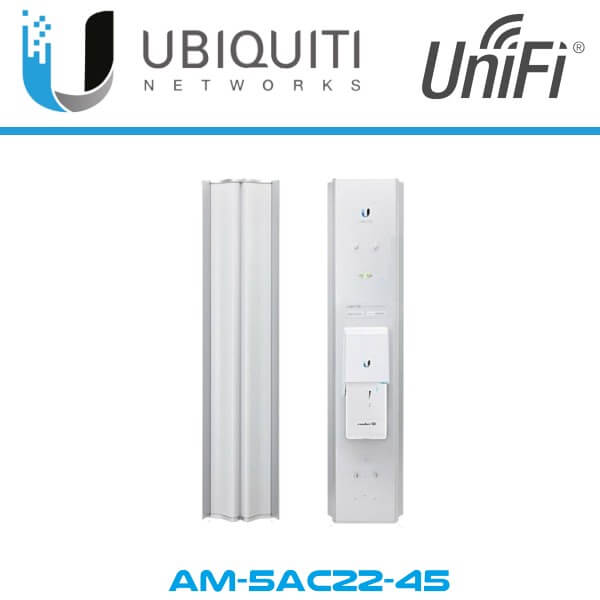

    Every airMAX® ac Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.

Ubiquiti airMAX Sector ac 22 dBi 45 Degrees (AM-5AC22-45) – Technical Specifications

Dimensions

  • 750 x 215 x 94 mm
    (29.53 x 8.47x 3.70″)

Weight

  • 6 kg
    (13.23 lbs)

Frequency Range

  • 5.10 – 5.85 GHz

Gain

  • Gain 22 dBi

HPOL Beamwidth

  • 45° (6 dBi)

VPOL Beamwidth

  • 45° (6 dBi)

Electrical Beamwidth

Electrical Downtilt

Max. VSWR

  • 1.5:1

Wind Survivability

  • 200 km/h (125 mph)

Wind Loading

  • 347 N @ 200 km/h
    (78 lbf @ 125 mph)

Polarisation

  • Dual-Linear

Cross-Polarisation Isolation

  • 30 dB Min.

ETSI Specification

  • EN 302 326 DN2

Mounting

  • Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included
