Ubiquiti AM-5G20-90 Dubai



Ubiquiti Networks AM-5G20-90 Dubai

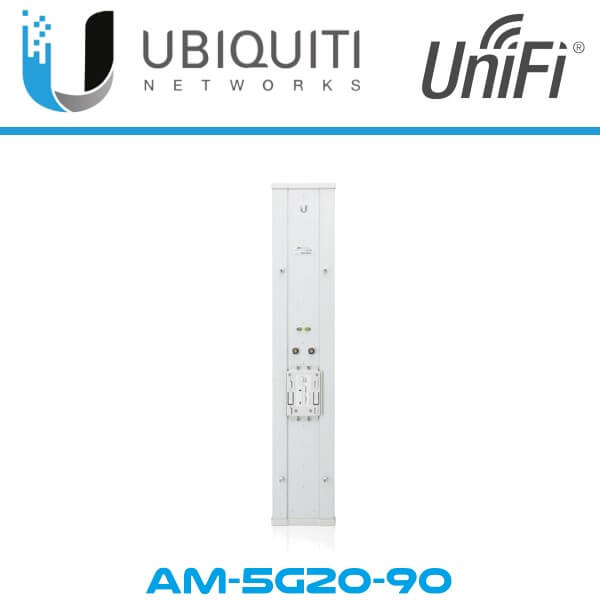

The Ubiquiti 5GHz base station airMAX AM-5G20, is a great antenna to pair with the Rocket M5. It has a 90° total beam-width and 20dBi gain. Rocket M5 and AirMax Base Station/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M5 on AirMax Base Station Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Description

Ubiquiti Networks AM-5G20-90 Dubai

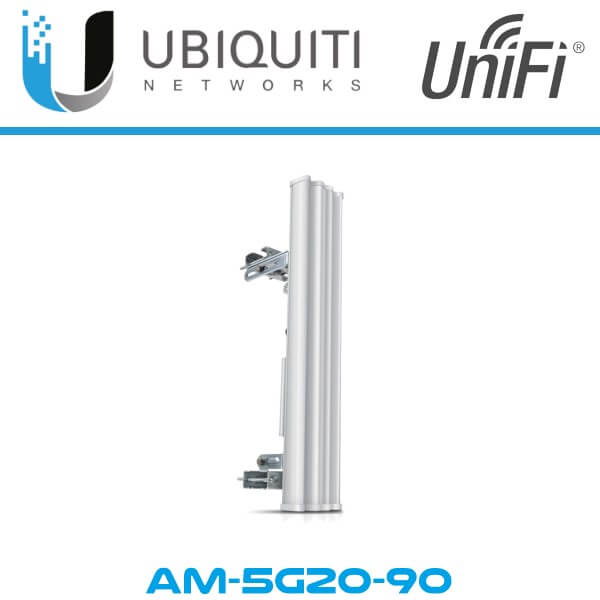

The AM-5G20-90 AirMAX 5 GHz 2×2 MIMO Sector Antenna from Ubiquiti Networks provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 5 GHz frequency and offers a gain of 20 dBi. It delivers 2×2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots. Included along with the antenna are a pole mount, RocketM bracket, and weatherproof RF jumpers to make your base station building experience easier.

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beam-shaping characteristics rivalling the highest quality cellular carrier base station antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2×2 MIMO PtMP Base Station. Rocket mount and weatherproof RF jumpers included.

Ubiquiti Networks AM-5G20-90 Dubai Features:

  • Seamlessly integrates with RocketM radios
  • Remarkable cross-polarization isolation
  • Intelligent QoS: Priority is given to voice/video for seamless streaming
  • Scalability: High capacity and scalability
  • Long Distance: Capable of high-speed, carrier-class links
  • Up to 100 airMAX clients can be connected to an airMAX sector antenna

Ubiquiti Networks AM-5G20-90 Specs

Frequency Range 5.15 to 5.85 GHz
Gain 19.4 to 20.3 dBi
Hpol Beamwidth 91° (6 dB)
Vpol Beamwidth 85° (6 dB)
Beamwidth Electrical: 4°
Electrical Downtilt
VSWR (Voltage Standing Wave Ratio) 1.5:1
Wind Survivability 125 mph
Wind Loading 26 lbf @ 100 mph
Polarization Dual-Linear
Cross-pol Isolation 28 dB Min
ETSI Specification EN 302 326 DN2
Dimensions 27.55 x 5.31 x 2.75″ (700 x 135 x 70 mm)
Weight 13 lb (5.9 kg)
Packaging Info
Package Weight 9.9 lb
Box Dimensions (LxWxH) 35.3 x 8 x 6.5″
