Description

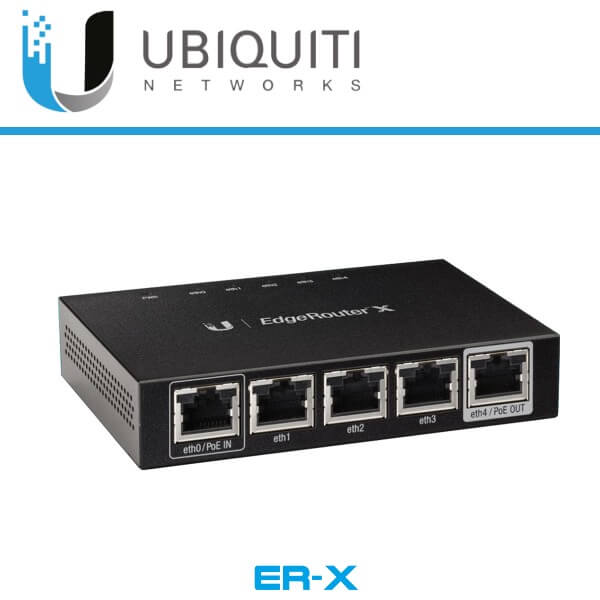

Ubiquiti EdgeRouter X Dubai
Ubiquiti introduces the EdgeRouter™ X, part of the EdgeMAX® platform. The Ubiquiti ER-X Dubai combines carrier‑class reliability with excellent price‑to‑performance value in an ultra‑compact form factor. The ER-X, can be powered by an external power adapter or 24V passive PoE input. A passive PoE passthrough option* is available to support a single airMAX® device.
Ubiquiti EdgeRouter X Features:
- Sophisticated Routing Features
- Advanced Security, Monitoring, and Management
- High-Performance Gigabit Ports
*Requires 24V passive PoE or a 12W minimum power adapter (not included).
| EdgeRouter X- Technical Specifications | |
|---|---|
| Dimensions | 110 x 75 x 22 mm (4.33 x 2.95 x 0.87″) |
| Weight | 175 g (6.17 oz) |
| Max. Power Consumption | 5W |
| Power Input | 12VDC, 0.5A Power Adapter (Included) or 24V Passive PoE |
| Power Supply | External AC/DC Adapter |
| Supported Voltage Range | 9 to 26VDC |
| Buttons | Reset |
| LEDs | Power, Ethernet 0-4 |
| Processor | Dual-Core 880 MHz, MIPS1004Kc |
| Memory | 256 MB DDR3 RAM |
| Code Storage | 256 MB NAND |
| Certifications | CE, FCC, IC |
| Wall Mount | Yes |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Networking Interfaces | |
| Data/PoE Input Port | (1) 10/100/1000 RJ45 Port |
| Data Port | (3) 10/100/1000 RJ45 Ports |
| Data/PoE Passthrough Port | (1) 10/100/1000 RJ45 Port |
