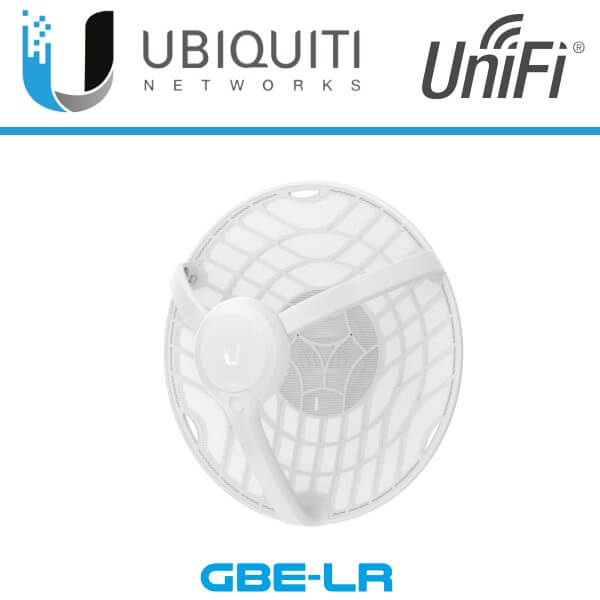

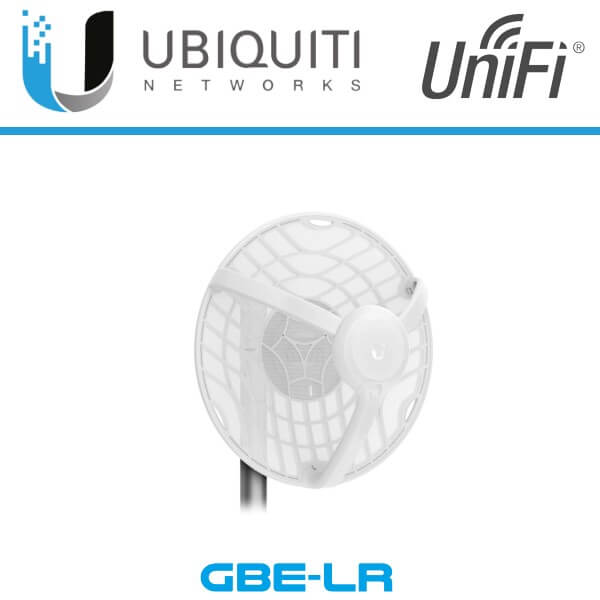

Ubiquiti GBE-LR airMAX Dubai
Featuring a high-gain dish antenna, the GigaBeam LR is an airMAX 60 GHz radio designed for low-interference and high-throughput connectivity of up to 1+ Gbps in long-range deployments of up to 2 km. The GigaBeam LR includes a 5 GHz radio for 60GHz link failover. Easy setup can be done via UISP app. For the 60 GHz link, the GigaBeam LR supports full bandwidth use of 2.16 GHz. The dedicated management radio allows easy setup via Wi-Fi.
The 60 GHz radio of the GigaBeam LR Dubai supports the full bandwidth use of 2.16 GHz. An integrated dedicated management radio allows easy setup with mobile devices via Wi-Fi using the UNMS software.
Ubiquiti GBE-LR airMAX Features:
• 60 GHz radio with 5 GHz radio backup
• Low-interference 60 GHz spectrum
• Up to 1+ Gbps with low latency
• 2.4 GHz management radio
• Full bandwidth support: 2.16 GHz
• Enclosure: Aluminium, UV-Resistant Polycarbonate
• Networking Interface: 10/100/1000 Ethernet Port, Wi-Fi for Management
• Mounting:
• Pole-Mount Kit (Kit Included)
• Wall-Mount (Not Included)
Product Specifications
• Antenna Gain
• 5 GHz: 11 dBi
• 60 GHz: 38 dBi
• Networking Interface: (1) 10/100/1000 Mbps Ethernet Port
• Max. Power Consumption: 11W
• Power Method: Passive PoE (Pairs 4, 5+; 7, 😎
• Power Supply: 24VDC, 0.5A Gigabit PoE (Included)
• Voltage Range: +22 to +26VDC
• LEDs: Power/ Ethernet/ 5G/ 60G
• Wind Loading: 56 N @ 200 Km/H (12.6 lbf @ 125 MPH)
• Wind Survivability: 200 Km/H (125 MPH)
• Mounting: Pole-Mount (Included)
• ESD/ EMP Protection: ± 24kV Contact/ Air
• Operating Temperature: -40 to 60°C (-40 to 140°F)
• Operating Humidity: 5 to 95% Non-condensing
• Certifications: CE, FCC, IC
Radio
• Max. Conducted TX Power:
• 5/ 60 GHz Combined: 25 dBm
• Channel Bandwidth:
• 60 GHz: 2160 MHz
• 5 GHz: 20/ 40/ 80 MHz
• Management Radio (MHz):
• US/CA: 2412-2462
Product Includes
(1) Dish
(1) Main Arm
(2) Support Arms
(1) Mounting Bracket
(1) Screw
(1) U-Clamp
(2) Flat Washers
(2) Lock Washers
(2) Flange Nuts
(1) Gigabit PoE (24V, 0.5A) with Mounting Bracket
(1) Power Cord
