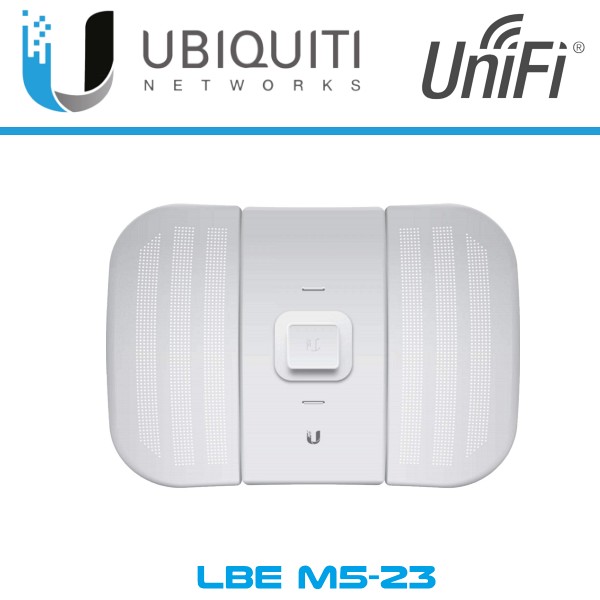

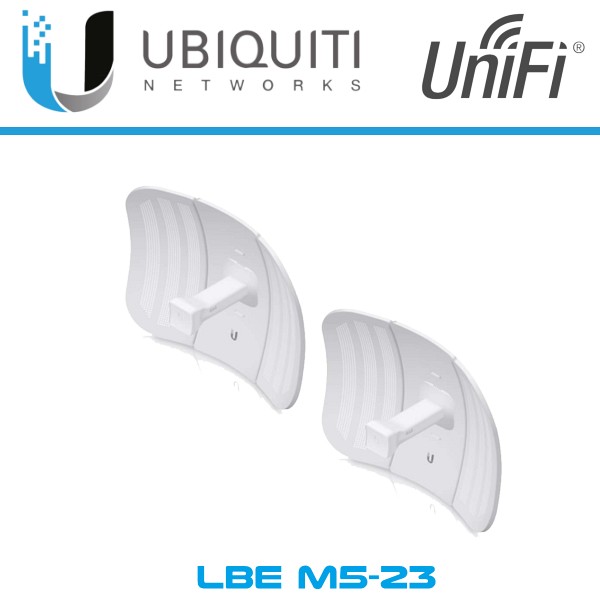

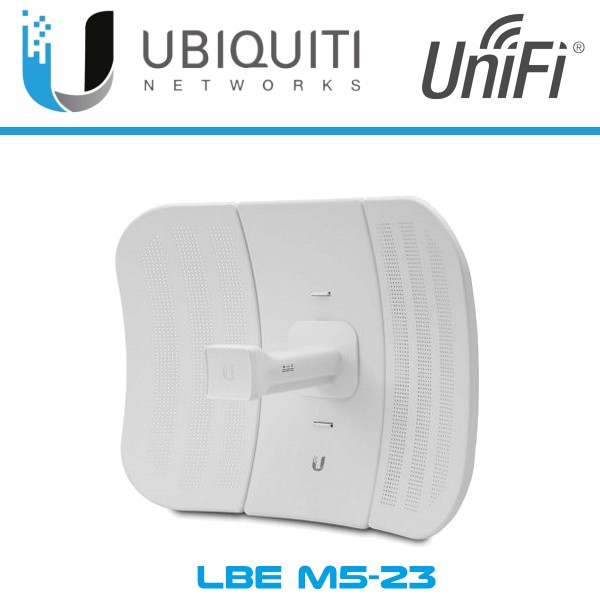

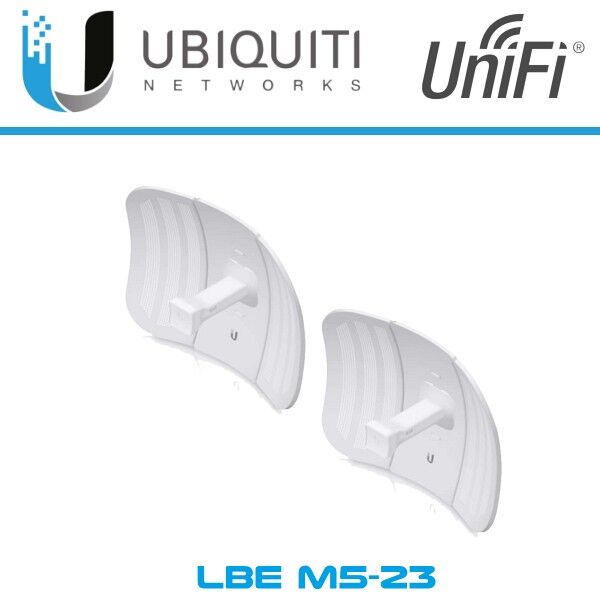

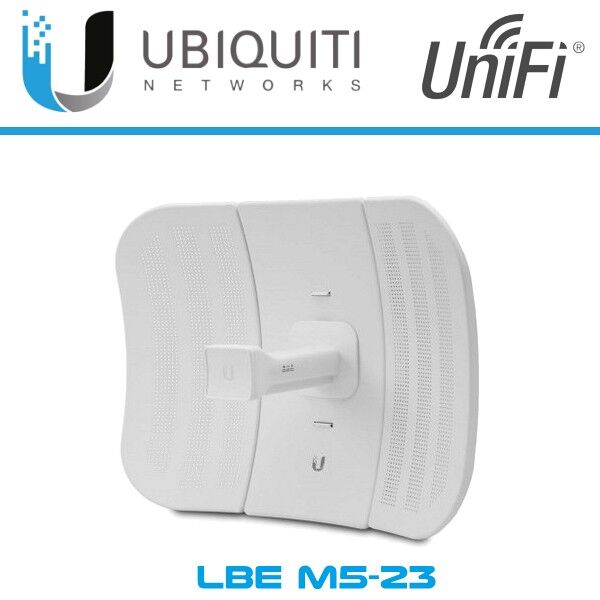

Ubiquiti LBE M5 -23 Dubai



Ubiquiti LBE M5 -23 Dubai

Combining its hardware and software technologies, the Ubiquiti LBE M5-23 Wireless Broadband CPE Dubai delivers fast throughput and long range cost-effectively. Its InnerFeed technology integrates the entire radio system into the feedhorn of the antenna, and our revolutionary airMAX TDMA protocol enhances network performance and scalability.

Description

Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE Dubai

Ubiquiti Networks has released the most advanced outdoor wireless broadband CPE (Customer Premises Equipment) which comes in a lightweight and compact design. LBE-M5-23 is a cost-effective solution that delivers excellent performance for long-distance, wireless broadband bridging. The wireless broadband works anywhere in the world and is equipped with a license-free 5 GHz frequency range. It boasts of an excellent performance of up to 100+ Mbps in real outdoor throughput and an incredible range of up to 30+ km.

Combining its hardware and software technologies, the Ubiquiti LBE M5-23 Wireless Broadband CPE Dubai delivers fast throughput and long-range cost-effectively. Its InnerFeed technology integrates the entire radio system into the feedhorn of the antenna, and our revolutionary airMAX TDMA protocol enhances network performance and scalability.

Ubiquiti LBE M5-23 Features:

  • Full Adjustment Flexibility
    • The LBE M5-23 Dubai features a unique ball joint mount that provides adjustment flexibility along three axes for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment.
  • Quick, Snap-and-Lock Assembly
    • The all-new mechanical design makes assembling the LBE-M5-23 and LBE-5AC-23 – literally – a snap. No tools are required. Simply snap the feed, antenna panels, rear housing, and ball joint mount together for a secure, solid assembly.
  • InnerFeed Technology
    • Ubiquiti’s revolutionary InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable*. This improves performance because it eliminates cable losses. Providing high performance and robust all-in-one mechanical design at a low cost, the NanoBridge is extremely versatile and cost-effective to deploy.
  • Integrated airMAX Technology
    • Unlike standard Wi-Fi protocol, the exclusive Ubiquiti Networks airMAX Time Division Multiple Access (TDMA) protocol allows each client to send and receive data using pre-designated time slots managed by an intelligent AP controller. This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. Compared to other systems in its class, the LBE-M5-23 Dubai delivers superior performance in reduced latency, throughput, and scalability.
      • Intelligent QoS – Priority is given to voice/video seamless streaming.
      • Scalability – High capacity and scalability.
      • Long Distance – Capable of high-speed, 30+ km links.
  • Powerful airOS Features
    • Ubiquiti’s versatile airOS firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.
  • Compact in Size, Light in Weight
    • A lightweight form factor contained within ultra-compact packaging, the LiteBeamM is ideal for shipping and logistics.
  • The Most Cost-Effective airMAX CPE Yet
    • The LiteBeamM delivers incredible value as an airMAX CPE solution.
  • Breakthrough Industrial Design
    • Featuring the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
  • High-Gain, Directional Antenna

    • The LiteBeamM provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

LiteBeam M5 Specifications
System Information
Processor Specs MIPS 74K
Memory Information 64 MB
Networking Interface (1) 10/100 Ethernet Port
Physical / Electrical / Environmental
Dimensions 362 x 267 x 184 mm (14.25 x 10.51 x 7.24″)
Weight 750 g (24.11 oz)
Wind Survivability 200 km/h (125 mph)
Wind Loading 176.86 N @ 200 km/h (39.76 lbf @ 125 mph)
Enclosure Characteristics Outdoor UV Stabilized Plastic
Mounting Kit Pole Mounting Kit (Included)
Max Power Consumption 4 Watts
Power Supply 24V, 0.2A PoE Adapter (Included)
Power Method Passive Power over Ethernet (Pairs 4, 5+; 7, 8 Return)
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4
ETSI Specification EN 302 326 DN2
ESD/EMP Protection ± 24 KV Contact / Air
Regulatory / Compliance Information
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
