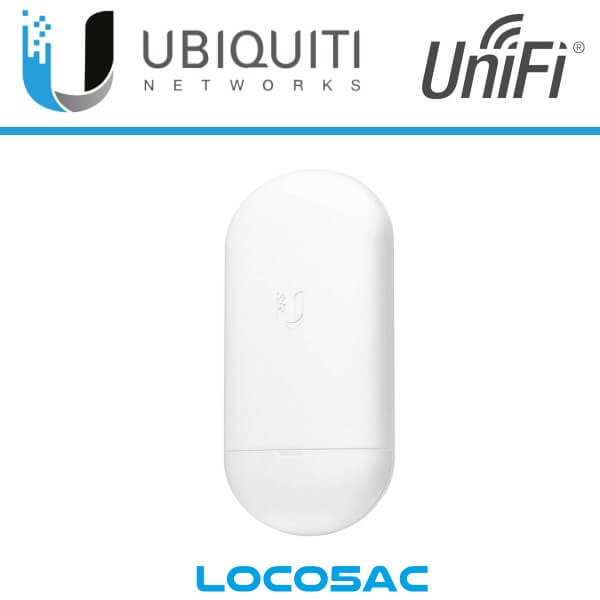

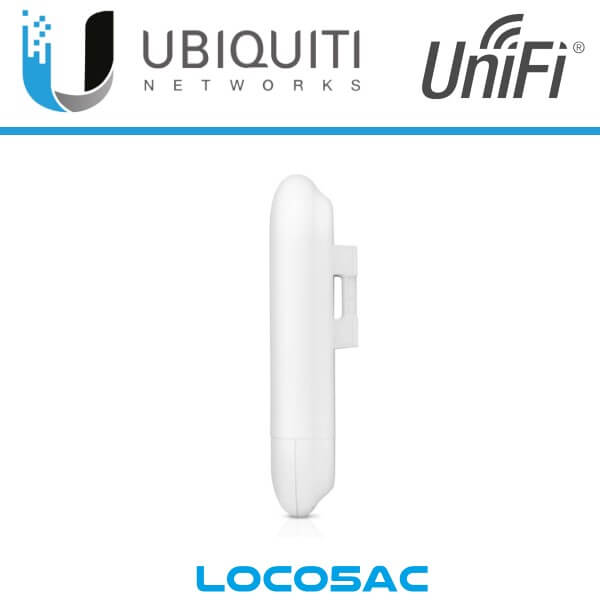

Ubiquiti LOCO5AC airMAX NanoStation Dubai



Ubiquiti LOCO5AC airMAX NanoStation Dubai

The Ubiquiti LOCO5AC airMAX NanoStation Dubai gets maximum gain out of the smallest footprint. The low cost, high-performance, and small form factor make this CPE extremely versatile and economical to deploy.

Description

Ubiquiti LOCO5AC airMAX NanoStation Dubai

The Ubiquiti LOCO5AC airMAX NanoStation Dubai is an indoor/outdoor, compact, high-performance CPE, featuring airMAX AC technology and a dedicated Wi-Fi radio for management.

Ubiquiti networks set the bar for the world’s first low-cost and efficient broadband customer premises equipment (CPE) with the nanostation M. The nanostation AC and nanostation AC loco take the same concept to the future with sleek form factors, along with integrated air Max (MIMO TDMA protocol) technology and dedicated Wi-Fi management. The radio and antenna are combined to create a more efficient and compact CPE. The nanostation AC and nanostation AC loco get maximum gain out of the smallest footprint. The low cost, high Performance, and small form factor of the nanostation AC and nanostation AC loco make them extremely versatile and economical to deploy.

Ubiquiti NanoStation AC Loco (LOCO5AC) Key Features

  • Frequency 5GHz
  • Throughput 450+ Mbps
  • Range 10+ km
  • Management Radio
  • UNMS App Compatible
  • Sleek Industrial Design
    • The NanoStation LOCO5AC Dubai represents the next evolution of the iconic CPE design that revolutionised the Wireless ISP industry.
  • Improved Surge Protection
    • This device features enhanced protection against ESD events.
  • Management Wi-Fi Radio
    • Each CPE integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Ubiquiti NanoStation AC Loco (LOCO5AC) – Technical Specifications

General

  • Dimensions: 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33″)
  • Weight: 180 g (6.35 oz)
  • Power Supply: 24V, 0.5A Gigabit PoE Supply*
  • Max. Power Consumption: 8.5W
  • Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
  • Gain: 13 dBi
  • Networking Interface: 10/100/1000 Mbps Ethernet Port
  • Channel Bandwidths: 10/20/30/40/50/60/80 MHz
  • Processor Specs: Atheros MIPS 74Kc, 560 MHz
  • Memory: 64 MB DDR2
  • Cross-pol Isolation:
    • 20 dB Minimum
    • Max. VSWR 1.8:1
  • Beamwidth: 45 degrees (H-pol) / 45 degrees (V-pol) / 45 degrees (Elevation)
  • Polarisation: Dual Linear
  • Enclosure: Outdoor UV Stabilised Plastic
  • LEDs: (1) Power
  • Mounting: Pole-Mount (Kit Included)
  • Operating Temperature: -40 to 70 C (-40 to 158 F)
  • Operating Humidity: 5 to 95% Noncondensing
  • RoHS Compliance: Yes
  • ESD/EMP Protection: ±24kV Contact/Air
  • Shock & Vibration: ETSI300-019-1.4
  • Certifications: CE, FCC, IC
  • Operating Frequency (MHz): 5150 – 5875
  • Management Radio (MHz): 2412 – 2472
