Ubiquiti LTU Pro Dubai



Ubiquiti LTU – PRO Dubai

The LTU Pro Dubai is designed for quick yet reliable mounting on a pole. It features a built-in mechanical tilt; the mounting bracket allows convenient adjustments to the elevation with a range of ± 15°.

Description

Ubiquiti LTU Pro (LTU-Pro) Client Dubai

Ubiquiti LTU Pro (LTU-Pro) 5GHz PtMP LTU Client, functions in a PtMP environment with the LTU-Rocket as the BaseStation.

Incorporating innovative industrial design with advanced technology, the LTU Pro is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti’s proprietary LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. It features an integrated high-gain dish for long range and high performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.

Featuring an integrated 24 dBi dish antenna, the LTU Pro is a 5 GHz subscriber station that functions as a CPE (Customer Premises Equipment) in a Point‑to‑MultiPoint (PtMP) environment with the LTU Rocket® as the basestation.

Ubiquiti LTU Pro Dubai Features:

  • PtMP CPE
  • 1024 QAM
  • 10/20/30/40/50 MHz channel bandwidth
  • Central configuration management from AP side
  • Frequency split
  • Automatic power adjustments
  • Router mode support
  • Functions in a PtMP environment with the LTU-Rocket as the base station
  • Proprietary LTU Technology

    • Based on Ubiquiti’s LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi‑Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps of real TCP/IP throughput and modulation rates of up to 4096QAM.
  • CPE Modes
    • The LTU Pro Dubai supports both bridged and built-in hardware NAT router modes to suit your specific deployment.
  • Frequency Split
    • The LTU Pro can use different frequencies for TX and RX to avoid interference.

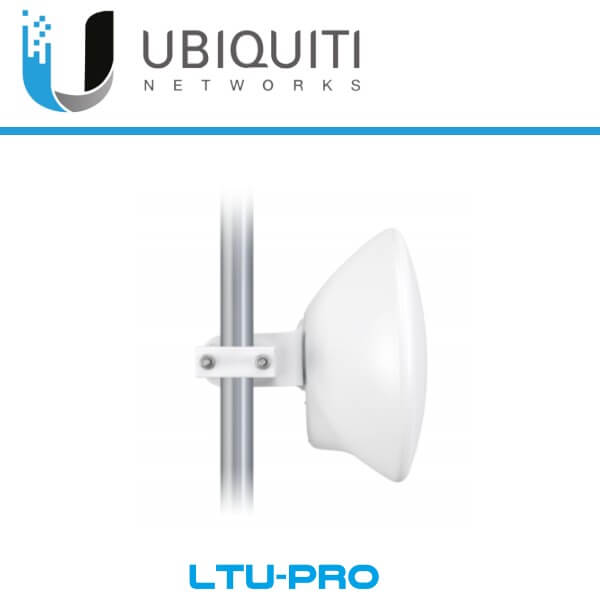

  • Robust Pole Mount Design
    • The LTU Pro is designed for quick yet reliable mounting on a pole. It features a built-in mechanical tilt; the mounting bracket allows convenient adjustments to the elevation with a range of ± 15°.

Ubiquiti LTU-PRO – Technical Specifications

General

  • Dimensions: 316.5 x 316.5 x 174.3 mm (12.46 x 12.46 x 6.86″)
  • Weight: 1.3 kg (2.87 lb)
  • Networking Interface: (1) 10/100/1000 Ethernet Port
  • Enclosure: Outdoor UV Stabilised Plastic
  • Max. Power Consumption: 9W
  • Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
  • Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 😎
  • Voltage Range: 22 – 26V
  • Max. Conducted TX Power: 22 dBm (per Chain)
  • Gain: 24 dBi
  • Beamwidth: 14°
  • Sidelobe Level: -10 dB
  • Front-to-Back Ratio: 27 dB
  • Mounting: Pole-Mount (Kit Included)
  • Wind Loading: 150 N @ 200 km/h (33.72 lbf @ 125 mph)
  • Wind Survivability: 200 km/h (125 mph)
  • ESD/EMP Protection: ± 24kV Contact/Air
  • Operating Temperature: -40 to 60° C (-40 to 140° F)
  • Operating Humidity: 10 – 90% Noncondensing
  • Certifications: CE, FCC, IC

Operating Frequency (MHz)

  • Worldwide: 4800 – 6200*
  • US/CA:
    – U-NII-1: 5150 – 5250
    – U-NII-2A: 5250 – 5350
    – U-NII-2C: 5470 – 5725
    – U-NII-3: 5725 – 5850

Bluetooth LE Management Radio (MHz)

  • Worldwide: 2400 – 2483.5
