Ubiquiti Networks PoE-48-24W-G Dubai

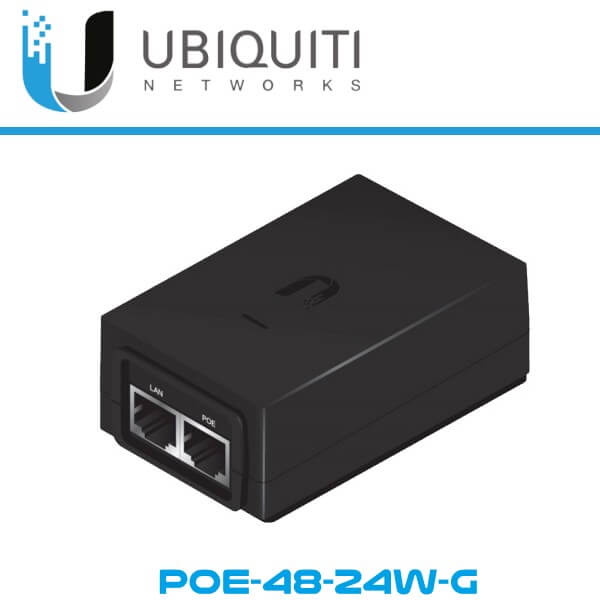

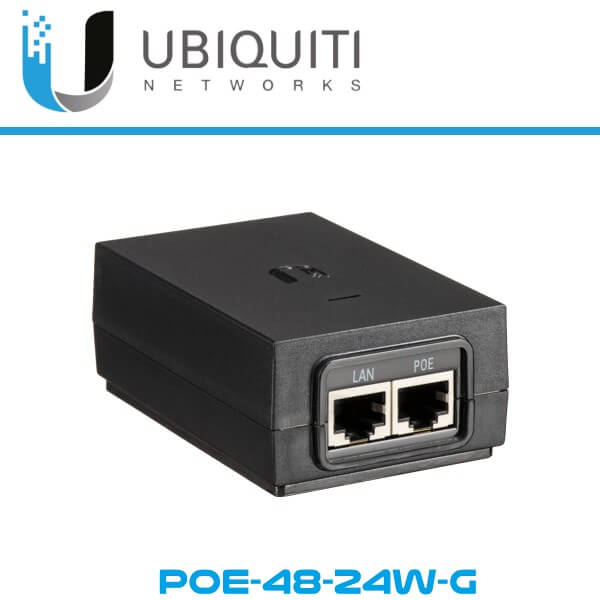

The Ubiquiti PoE-48-24W-G-KIT Dubai is a Power over Ethernet Adapter for use with your Ubiquiti Wireless Networking devices. This unit also supports gigabit.
The 48V PoE Adapter with Gigabit LAN Port from Ubiquiti Networks powers a variety of Ubiquiti PoE devices belonging to the airFiber, airMAX, airVision, UniFi, and mFi series. This 48V adapter provides protection against surge, clamping, maximum surge discharge, peak pulse current, and ESD attacks(Electrostatic discharge (ESD) is the leading cause for outdoor device failures).
Ubiquiti Networks PoE-48-24W-G Dubai Features:
- Powers Ubiquiti airFiber, airMAX, airVision, UniFi, and mFi PoE devices
- Protection against surge, clamping, maximum surge discharge, peak pulse current, and ESD attacks
- Provides earth grounding
- Gigabit LAN port
The Ubiquiti Networks PoE-48-24W-G Dubai PoE Adapter is compatible with most Ubiquiti PoE devices, including:
• airFiber®
• airMAX®
• EdgeMAX®
• mFi®
• UniFi® AP
• UniFi Video / airVision®
Ubiquiti Networks PoE-48-24W-G Specs
General
- Gigabit LAN Port: Yes
- Output Voltage: 48VDC at 0.5A
- Input Voltage: 90-260VAC at 47-63Hz
- Input Current: 0.3A at 120VAC, 0.2A at 230VAC
- Inrush Current: <15A peak at 120VAC, <30A peak
- Efficiency: 70+%
- Output Ripple: 1% Max
- Switching Frequency: 200kHz
- Line Regulation: +/- 0.5%
- Load Regulation: +/- 1%
- Surge Protection: Common Mode
- Clamping Protection: 11V Data, 77.5V Power
- Max Surge Discharge: 1200A (8/20uS) Power
- Peak Pulse Current: 36A (10/1000uS Data)
- Shunt Capacitance: <5pF data
- Response Time: <1nS
Interface
- AC Connector: IEC-320 C6
- Data In/POE RJ45 Shielded Socket
- 80% Current Indicator: Power LED will change color
Physical
- Operating Temperature: -10C to +60 C
- Storage Temperature: -20 to +85 C
- Operating Humidity: -10C to +60 C
- Size: (LXWXH) 85 x 55 x 33 (mm)
- Weight 4 oz
Certification
- Compliance UL, EN55022 (CISPR22) class B, Meets CE
