The Ubiquiti RocketDish-5G30 Antenna Dubai has been designed to seamlessly work together with the Ubiquiti Rocket M5 or MikroTik UBTik™ for an instant long range powerful PtP Link. Installing the Rocket M5 or the MikroTik UBTik™ onto the RocketDish Antenna requires no special tools, you simply snap it into place with the mounts provided.

Description

Ubiquiti Networks RD-5G30 Dubai

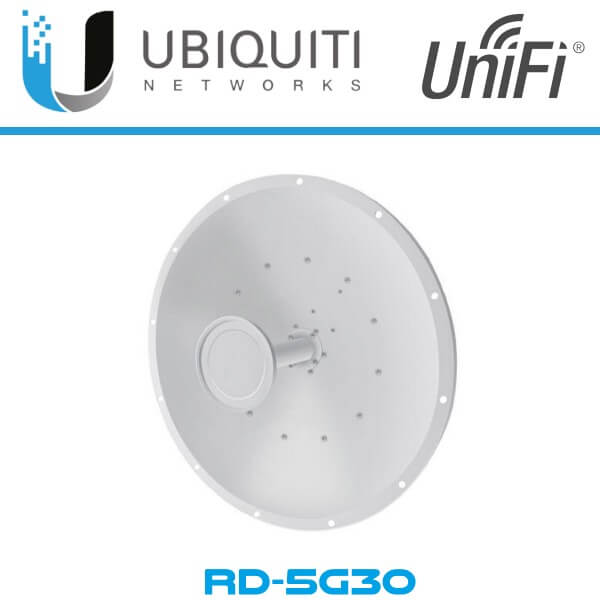

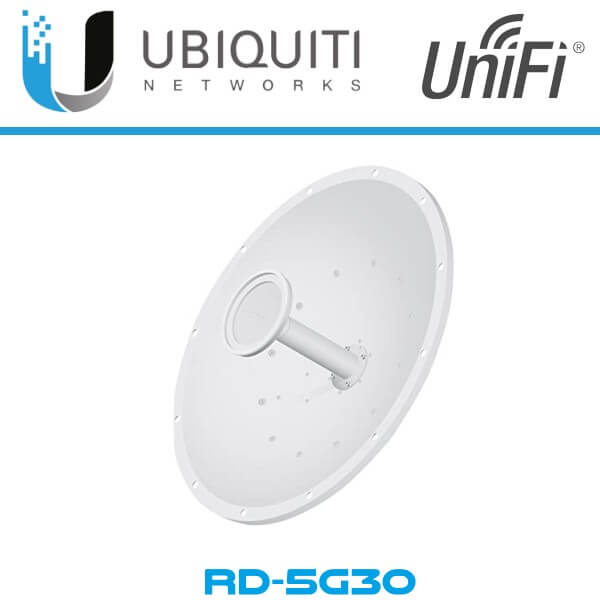

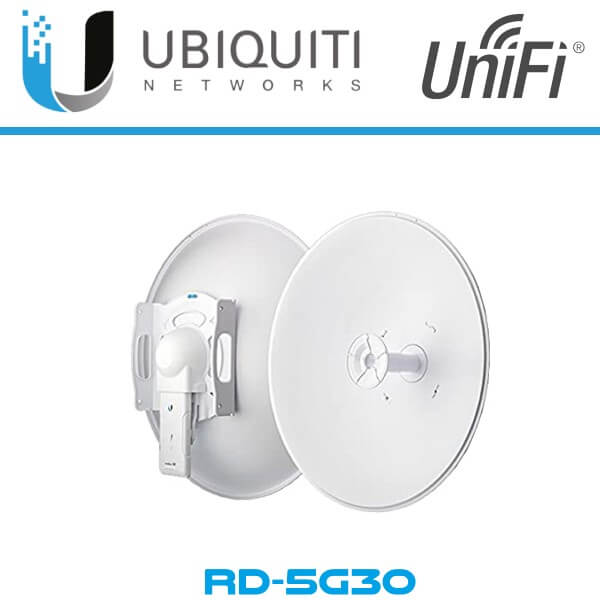

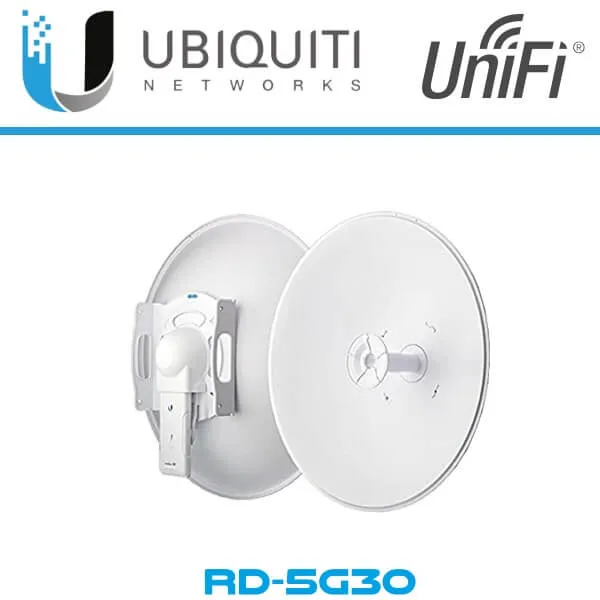

The RD-5G30 RocketDish AirMax 2×2 PtP Bridge Dish Antenna from Ubiquiti Networks features a gain of 30 dBi that helps create a Point-to-Point (PtP) bridge for networking applications when paired with an optional Rocket M BaseStation. It delivers dual-polarity performance and operates in the 5 GHz frequency, which works well for long-distance links. Furthermore, it comes with a shroud, Rocket mount, and pole-mounting support.

Ubiquiti Networks RD-5G30 Dubai Features:

RocketDish Antenna

  • Robust mechanical design for outdoor application use
  • Plug-and-Play: Built-in Rocket mount so no tools are needed to install the Rocket BaseStation

airMAX Technology

  • Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated timeslots scheduled by an intelligent AP controller
  • Eliminates hidden node collisions and maximizes airtime efficiency
  • Provides scalability, high throughput, and low latency in unlicensed multipoint networks
  • Intelligent QoS: Priority is given to voice/video for seamless streaming
  • Supports high-speed, carrier-class links

GPS Synchronization (When Paired with Rocket M GPS)

  • Rocket M GPS units seamlessly integrate with AirMax RocketDish Antennas to enable you to utilize Ubiquiti AirSync GPS Synchronization technology.
  • AirSync technology enhances the hardware and software of Rocket M to use GPS signals for precision timing
  • GPS Signal Reporting: Easily manage/monitor GPS satellite signals using AirOS software (not included)
  • No Co-Location Interference: Synchronized transmission among Rocket M GPS-powered Base Stations (available separately) effectively eliminates co-location interference
  • Channel Re-Use: Frequency reuse for increased scalability

Ubiquiti Networks RD-5G30 Specs

Frequency Range 5.1 to 5.8 GHz
Gain 30 dBi
Hpol Beamwidth 5° (3 dB)
Vpol Beamwidth 5° (3 dB)
Front-to-Back Ratio 34 dB
Max VSWR 1.4:1
Wind Loading 177 lbf @ 125 mph
Wind Survivability 125 mph
Polarization Dual-linear
Cross-pol Isolation 35 dB minimum
ETSI Specification EN 302 326 DN2
Diameter 25.6 x 25.6 x 12″ (65 x 65 x 30.4 cm)
Weight 21.6 lb (9.8 kg)
Packaging Info
Package Weight 20.8 lb
Box Dimensions (LxWxH) 28 x 27 x 7″
