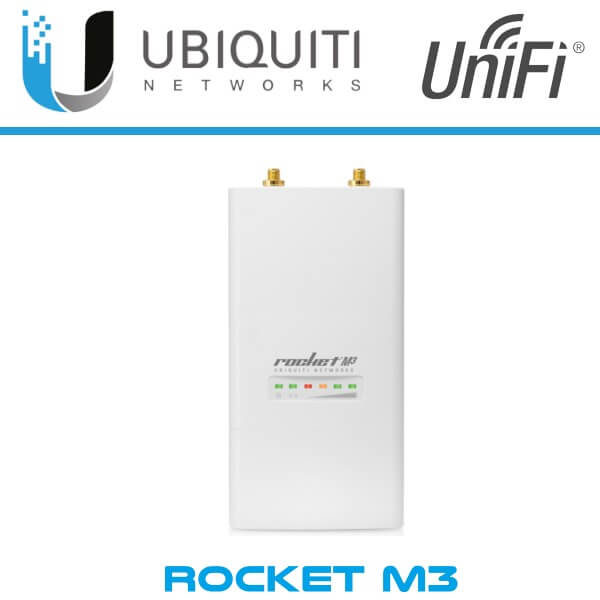

Ubiquiti Rocket M3 Dubai



Ubiquiti Rocket M3 Dubai

The Ubiquiti Rocket M3 Dubai offers network architects unparalleled flexibility and convenience thanks to its versatility. The Rocket M3 is a rugged, hi-power, linear 2×2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCP/IP).

Description

Ubiquiti Rocket M3 Dubai

The Rocket is a rugged, high-power, very linear 2×2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PTMP Airmax base-station applications. Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Ubiquiti Rocket M3 Key Features

  • Frequency – 3 GHz
  • Throughput – 100+ Mbps
  • Range -50+ Km
  • Plug and Play Integration
    • The Ubiquiti Rocket M3 radio seamlessly works together with airMAX Sector, RocketDish, Omni, and Yagi antennas for PtP and PtMP links. Every airMAX antenna has a built-in Rocket mount, so no tools are needed to install the Rocket.
  • Frequency and Channel Flexibility
    • Built to survive harsh environments, the Rocket M3 is also available in several other frequency models and channel bandwidths, depending on the specific model and local country regulations.

Ubiquiti Rocket M3 – Technical Specifications

General

  • Processor Specs: Atheros MIPS 24KC, 400MHz
  • Memory Information: 64MB SDRAM, 8MB Flash
  • Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet or 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet
  • Wireless Approvals: FCC Part 15.247, IC RS210, CE or FCC Part 90Y
  • RoHS Compliance: Yes
  • Enclosure Size: 16 x 8 x 3cm (length, width, height)
  • Weight: 0.5kg
  • Enclosure Characteristics: Outdoor UV Stabilized Plastic
  • Mounting Kit: Pole Mounting Kit included
  • Power Supply: 24V, 1A POE Supply included
  • Power Method: Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
  • Operating Temperature: -30C to 75C
  • Operating Humidity: 5 to 95% Condensing
  • Shock and Vibration: ETSI300-019-1.4
  • RF Connector: 2x RP-SMA (Waterproof) or 2x RP-SMA and 1x SMA (Waterproof)
  • Max Power Consumption: 6.5 Watts or 8 Watts
