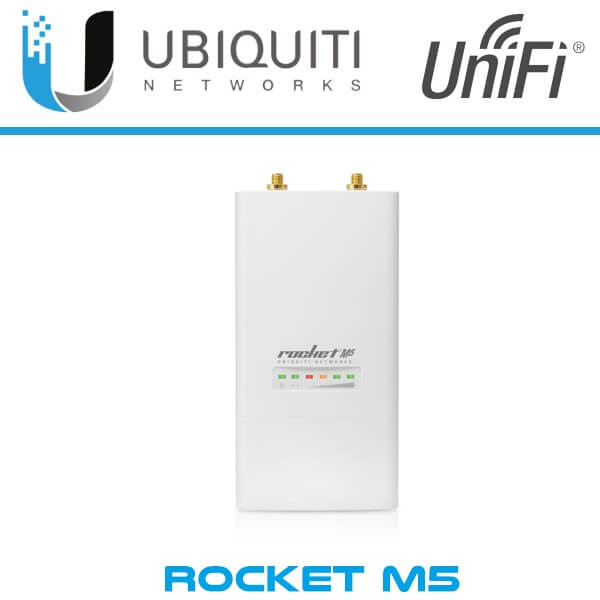

The Ubiquiti Rocket M5 MIMO Dubai is a 5GHz MIMO Point-to-Point wireless bridge/ base station. It has excellent features including 50+km range performance and breakthrough speed (150+Mbps real TCP/IP). It is a rugged, hi-power, linear, 2×2 MIMO radio with enhanced receiver performance.

Description

Ubiquiti Rocket M5 MIMO Dubai

Featuring enhanced radio performance and mix-and-match industrial design, the Ubiquiti Rocket M5 Dubai is ideal for deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) applications. Rocket radios seamlessly work together with airMAX® Sector, RocketDish and Omni for PtP and PtMP links. Every airMAX antenna has a built-in Rocket mount, so no tools are needed to install the Rocket.

The Ubiquiti RocketM5 MIMO Dubai can be paired with your choice of AirMax BaseStation or Ubiquiti Rocket Antennas as it combines the “brains” in one robust unit. This versatility gives network architects unparalleled flexibility and convenience.

Ubiquiti Rocket M5 MIMO Dubai Features

  • Scalability: 300+ subs per sectored base station
  • Latency: Latency remains low for voice and video applications as network scales
  • Speed: 150Mbps+ PtMP performance
  • Range: 50km+ outdoor range
  • Plug and Play Integration
    • Rocket radios seamlessly work together with airMAX Sector, RocketDish, Omni and Yagi antennas for PtP and PtMP links. Every airMAX antenna has a built-in Rocket mount, so no tools are needed to install the Rocket.
  • Frequency and Channel Flexibility
    • Built to survive harsh environments, the Rocket M5 Dubai is available in several frequency models and supports multiple channel bandwidths, depending on the specific model and local country regulations.
  • Advanced Software Technology
    • Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multi point networks.
  • Spectrum Analysis Tools
    • The airView Spectrum Analyzer allows operators to identify noise signatures and analyse frequency usage and activity levels onsite, so new access points can be set up on the least-used channels to optimize wireless performance
  • Flexibility
    • The Rocket is available in several frequency models: 900 MHz, 2.4 GHz, 3/3.65 GHz, and 5 GHz, to support your specific application. You have the freedom to locate, deploy, and operate the Rocket in these unlicensed bands (subject to local country regulations). The Rocket allows for a high degree of flexibility in configuring channel bandwidths: 2, 3, 5, 8, 10, 20, 25, 30, and/or 40 MHz, depending on the specific product model and local country regulations.

Ubiquiti RocketM5 MIMO – Technical Specifications

Dimensions

  • 160 x 80 x 30 mm (6.30 x 3.15 x 1.18″)

Weight

  • 500 g (1.1 lb)

Enclosure Characteristics

  • Outdoor UV Stabilised Plastic

Processor

  • MIPS 74Kc

Memory

  • 128 MB SDRAM
  • 8 MB Flash

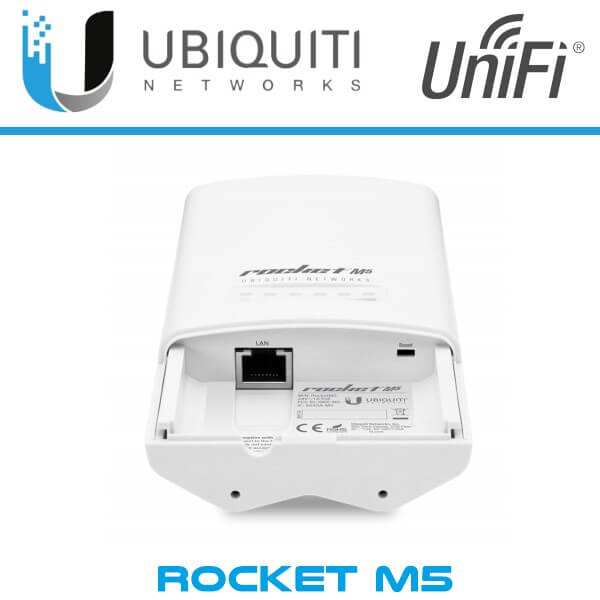

Networking Interface

  • (1) 10/100 Mbps

RF Connections

  • (2) RP-SMA (Waterproof)

LEDs

  • Power
  • Ethernet
  • (4) Signal Strength

Max. Power Consumption

  • 8W

Power Supply

  • 24V
  • 1A PoE Adapter

Power Method

  • Passive PoE (Pairs 4, 5+; 7, 8 Return)

ESD/EMP Protection

  • ± 24KV Air / Contact

Operating Temperature

  • -30 to 75° C (-22 to 167° F)

Operating Humidity

  • 5 to 95% Noncondensing

Shock and Vibration

  • ETSI300-019-1.4

Modes

  • Access Point
  • Station

Services

  • Web Server
  • SNMP
  • SSH Server
  • Telnet
  • Ping Watchdog
  • DHCP
  • NAT
  • Bridging
  • Routing

Utilities

  • Antenna Alignment Tool
  • Discovery Utility
  • Site Survey
  • Ping
  • Traceroute
  • Speed Test

Distance Adjustment

  • Dynamic Ack and Ackless Mode

Power Adjustment

  • Software Adjustable UI or CLI

Security

  • WPA2 AES Only

QoS

  • Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low

Statistical Reporting

  • Up Time
  • Packet Errors
  • Data Rates
  • Wireless Distance
  • Ethernet Link Rate

Other

  • Remote Reset Support
  • Software Enabled/Disabled
  • VLAN Support
  • 64QAM
  • 5/8/10/20/30/40 MHz Channel Width Support

Ubiquiti Specific Features

  • airMAX Mode
  • Traffic Shaping with Burst Support
  • Discovery Protocol
  • Frequency Band Offset
  • Ackless Mode

Compliance

  • Wireless Approvals:
    – FCC
    – IC
    – CE
  • RoHS Compliance: Yes

Operating Frequency

  • Worldwide: 5170 – 5875 MHz
  • USA: 5725 – 5850 MHz (US units with FCC ID: SWX-RM5 are allowed 5250 – 5850 MHz.)
  • Output Power: 27 dBm
