Ubiquiti UniFi Building-to-Building Bridge UBB Dubai



Ubiquiti UniFi Building-to-Building Bridge UBB Dubai

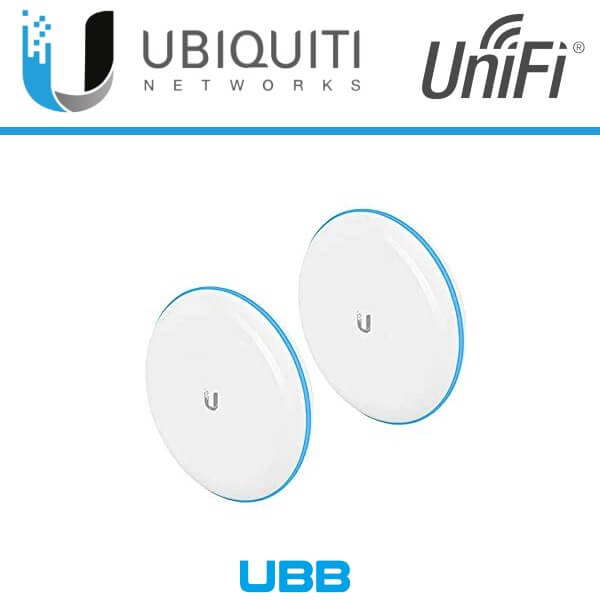

The UniFi Building-to-Building Network Bridge Dubai from Ubiquiti Networks is designed to connect networks of two separate buildings while achieving gigabit speeds in the process. The 2-pack radio includes a pole mounting kit for installation on each building’s rooftop. Each radio is aimed at each other to connect networks over a 60 GHz signal for up to 1.7+ Gb/s bi-directional speeds.

Description

Ubiquiti UniFi Building-to-Building Bridge (UBB) Dubai

The Ubiquiti UniFi Building-to-Building Bridge (UBB) is a 60 GHz/5 GHz wireless bridge with 1+ Gbps of throughput. It is the ideal solution for high-throughput connectivity with a range of up to 500 m. Integration with the UniFi Controller makes bridging two networks seamless. Comprised of two pre-paired endpoint devices, the UBB delivers a Point-to-Point (PtP) link – up to 1+ Gbps – using 802.11ad technology on the low-interference 60 GHz radio band. For backup, a 5 GHz radio using 802.11ac technology is available.

The UniFi Building-to-Building Network Bridge Dubai from Ubiquiti Networks is engineered to be an easy solution for connecting two separate buildings’ networks, and achieving gigabit speeds in the process. This 2-pack of radios include a pole mounting kit for installation on each building’s rooftop. Each radio is aimed at each other to connect networks over a 60 GHz signal for up to 1.7+ Gb/s bi-directional speeds.

Ubiquiti UniFi Building-to-Building Bridge (UBB) Features

  • 60 GHz Operating Frequency
  • Wireless Link Redundancy
  • Pre-Paired Configuration
  • Sleek Industrial Design
  • Convenient Alignment
  • Mounting Versatility
  • LED Alignment
    • The bridge radios require direct line-of-sight to connect to each other, and the built-in LED rings on each radio give you a visual indicator of where to aim each one. If the radios are misaligned, more of the ring will light red. As the radios pick up each other’s signal, the rings turn blue. A solid blue ring on each radio means they are positioned correctly.
  • 5 GHz Redundancy
    • In order to achieve speeds of up to 1.7+ Gb/s, the radios utilize a 60 GHz signal to transmit information. At 60 GHz, the signal can attenuate due to solid objects or inclement weather getting in the way. This is why Ubiquiti added a more robust 5 GHz redundant backup signal for the radios to use if needed, but if used, networking speeds will be diminished.
  • Gigabit PoE Power
    • The radios have a single Gigabit PoE connection for information and power, helping you setup the bridge connection in minutes.
  • Long Range
    • With a clear line-of-sight, the UniFi Building-to-Building Network Bridge can link two networks together from up to 1640′ away.
  • UniFi Network Controller
    • This kit can be monitored and setup via the UniFi Network Controller app for iOS and Android devices. UniFi Network Controller lets you control an entire end-to-end system of network devices across different locations from a single interface.

Ubiquiti UBB Specs

Antenna Gain 5 GHz: 2 dBi
60 GHz: 10 dBi / 17.2 dBi
Maximum TX Power 25 dBm (5 GHz)
Networking Interface 10/100/1000 Ethernet
Bluetooth
Enclosure UV-Resistant Polycarbonate
PoE Supports Power Method 802.3af
Passive Power over Ethernet (48 V)
Power Supply UniFi PoE Switch
48 V, 0.32 A Gigabit PoE Adapter (Included)
Max Power Consumption 11 W
Wind Loading 56 N @ 200 km/h (12.5 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Mounting Pole (Kit Included)
Wall (Kit Not Included)
ESD/EMP Protection ±24 kV (Contact/Air)
Operating Temperature -40 to 158°F / -40 to 70°C
Operating Humidity 5 to 95% (Noncondensing)
Certifications CD, FCC, and IC
Operating Frequencies Worldwide: 5150 to 5875 MHz
Worldwide: 57,000 to 66,000 MHz
US/CA: U-NII-1: 5150 to 5250 MHz
US/CA: U-NII-3: 5725 to 5850 MHz
US/CA: 57,000 to 66,000 MHz
Bluetooth Frequency Worldwide: 2400 to 2483.5 MHz
Dimensions 5.5 x 5.5 x 3.5″ / 14.0 x 14.0 x 9.0 cm
Weight 13.3 oz / 376.0 g
Packaging Info
Package Weight 3.605 lb
Box Dimensions (LxWxH) 8.5 x 6.8 x 6.5″
