Description

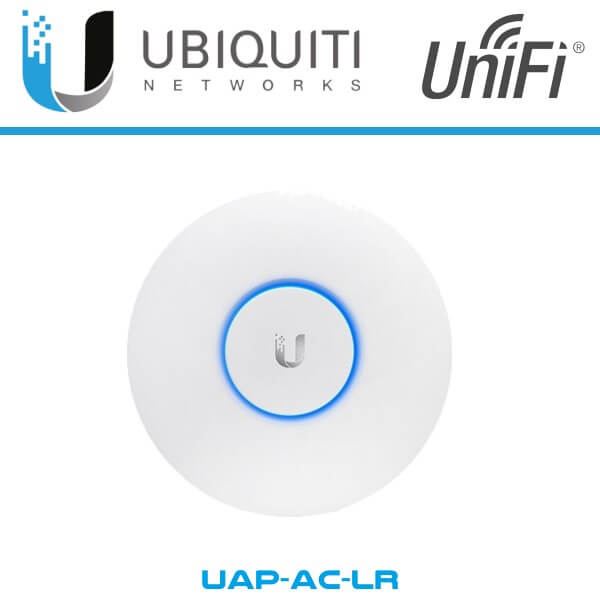

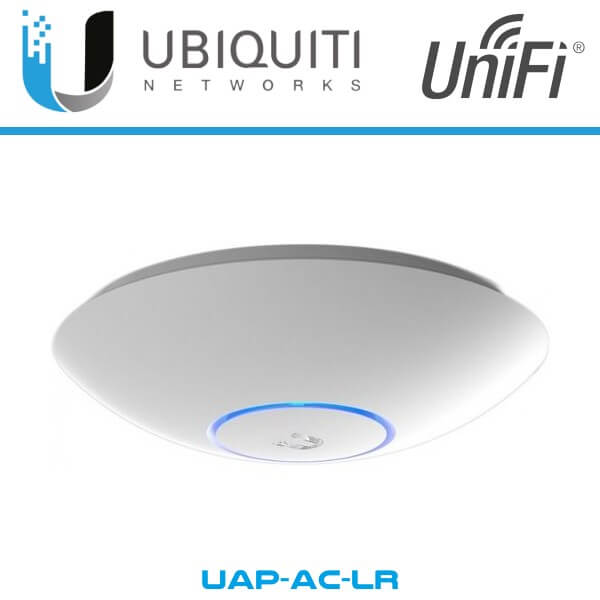

Ubiquiti UniFi UAP-AC-LR  Access Point Dubai

The Ubiquiti Unifi Long Range AP UAP-AC-LR Dubai is ideal for long‑range deployments. This access point offers simultaneous, dual band operation with 3 x 3 MIMO in the 2.4 GHz band and 2 x 2 MIMO in the 5 GHz band. It has a range of upto 183 metres or 600ft and one Gigabit Ethernet port.

Ubiquiti Unifi AC Long Range AP supports 802.11ac and speeds of up to 867Mbps in the 5GHz radio band and up to 450Mbps in the 2.4GHz radio band.

The innovative antenna design provides a long range, symmetrical link coverage area. The antenna gain of this access point performs better than what one way, high transmit power does for connecting distant clients.

Ubiquiti UniFi UAP-AC-LR  Access Point Dubai Features:

• Simultaneous Dual-Band Operation
• 5 GHz Band with Speeds of up to 867 Mbps
• 2.4 GHz Band with Speeds of up to 450 Mbps
• Range up to 183 meters (600 feet)
• Scalable Enterprise Wi-Fi Management
  • The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralised controller.
• Innovative Antenna Design
  • The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the Ubiquiti UniFi AP AC LR performs better than one-way, high transmit power does for connecting distant clients.

Ubiquiti UniFi AP AC LR – Technical Specifications

General

• Dimensions 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70″)
• Weight 240 g (8.5 oz) With Mounting Kits 315 g (11.1 oz)
• Networking Interface (1) 10/100/1000 Ethernet Port
• Buttons Reset
• Antennas (1) Dual-Band Antenna, Tri-Polarity, 3 dBi
• Wi-Fi Standards 802.11 a/b/g/n/ac
• Power Method Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return)
• Power Supply 24V, 0.5A Gigabit PoE Adapter*
• Maximum Power Consumption 6.5W
• Maximum TX Power 2.4 GHz 22 dBm 5 GHz 24 dBm
• BSSID Up to Four per Radio
• Power Save Supported
• Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Certifications CE, FCC, IC
• Mounting Wall/Ceiling (Kits Included)
• Operating Temperature -10 to 70° C (14 to 158° F)
• Operating Humidity 5 to 95% Noncondensing
  * Only the single-pack of the UAP-AC-LR includes a PoE adapter.

Advanced Traffic Management

• VLAN 802.1Q
• Advanced QoS Per-User Rate Limiting
• Guest Traffic Isolation Supported
• WMM Voice, Video, Best Effort, and Background
• Concurrent Clients 200+

Supported Data Rates (Mbps)

• Standard Data Rates
• 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
• 802.11ac 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
• 802.11b 1, 2, 5.5, 11 Mbps
• 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
