Ubiquiti Unifi USW-16-PoE Dubai



Ubiquiti Unifi USW-16-PoE Dubai

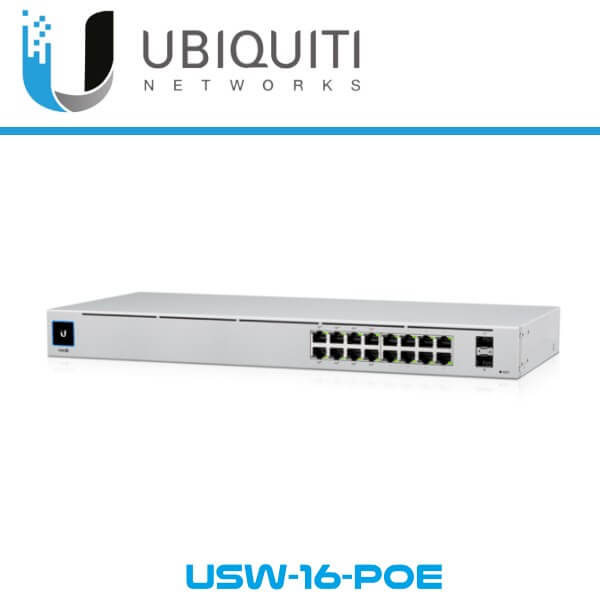

The Ubiquiti Unifi USW-16-PoE Dubai comes with a 1.3″ touch LCM which gives a quick access to device status information.  It features a compact fanless design with a depth of 7.9″, and offers an easy installation process in a SOHO rack cabinet.

Description

Ubiquiti Unifi USW-16-PoE Dubai

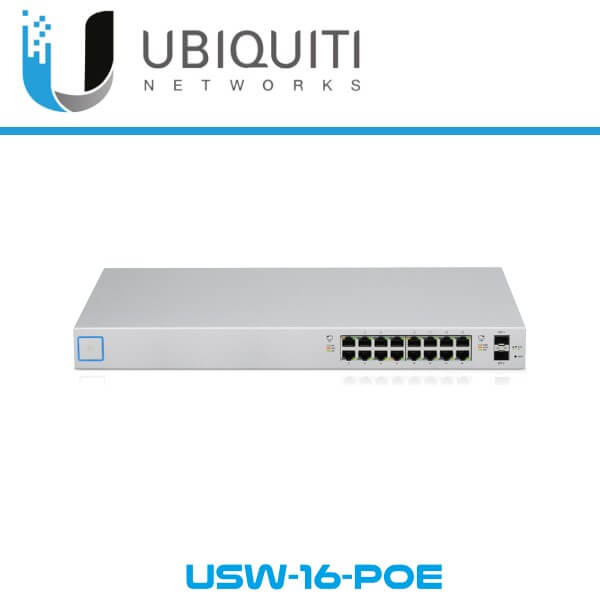

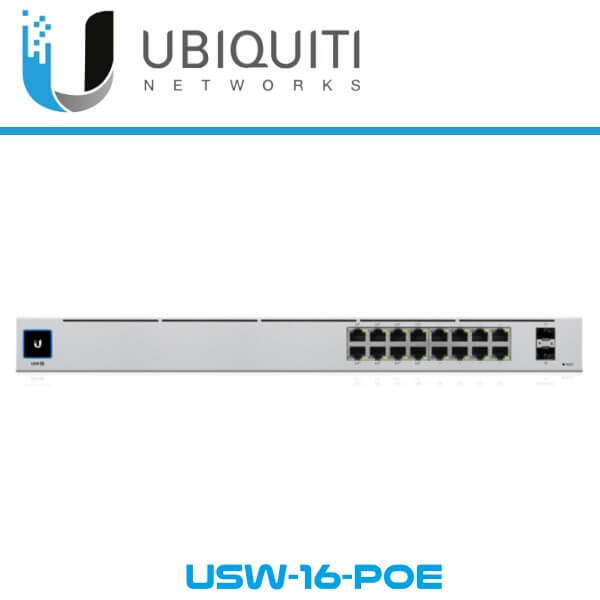

The Ubiquiti Unifi USW-16-PoE is a configurable Gigabit Layer 2 switch that comes with 16 Gigabit Ethernet ports. It includes 8 auto-sensing 802.3at PoE+ ports and 2 SFP ports. The Ubiquiti Unifi USW-16-PoE Dubai provides Gigabit PoE links to your RJ45 Ethernet devices as well as Gigabit fiber uplink options to your enterprise network.

The Ubiquiti USW-16-PoE Dubai can easily manage and configured by the Unifi Network application using the UniFi mobile app support. It offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port.  What’s more, admins can easily configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Ubiquiti Unifi USW-16-PoE Dubai Features

  • Near silent cooling
    • Ubiquiti’s new airflow design reduces the need for fan usage.
  • Powerful hardware and software
    • Ubiquiti UniFi Gen2 Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities. (*Layer 3 switching will be available in a future software release)
  • UniFi SmartPower RPS, USP-RPS, is Ubiquiti’s PSU failover system.
    • In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device. One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
  • Touch screen display
    • The 1.3″ touchscreen display allows easy monitoring and quick troubleshooting.

Ubiquiti UniFi USW-16-POE Switch Technical Specifications

Product Specifications

  • Dimensions: 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72″)
  • Weight: 2.80 kg (6.17 lb)
  • Weight with Brackets: 2.89 kg (6.37 lb)
  • Interfaces:
    – Networking: (16) 10/100/1000 RJ45 Ports, (2) 1G SFP Ethernet Ports
    – Management: Ethernet In-Band
  • Total Non-Blocking Throughput: 18 Gbps
  • Switching Capacity: 36 Gbps
  • Forwarding Rate: 26.78 Mpps
  • Power Method: 100-240VAC, 50/60 Hz, Universal Input
  • Power Supply: AC/DC, Internal, 60W
  • Voltage Range: 100 to 240VAC
  • Max Power Consumption (Excluding PoE Output): 18W
  • LEDs:
    – System: Status
    – RJ45 Data Ports: PoE; Speed/Link/Activity
    – SFP Data Ports: Link/Activity
  • ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
  • Shock and Vibration: ETSI300-019-1.4 Standard
  • Operating Temperature: -5 to 40° C (23 to 104° F)
  • Operating Humidity: 10 – 90% Noncondensing
  • Certifications: CE, FCC, IC

PoE

  • Total Available PoE: 42W
  • PoE Interfaces:
    – Ports 1-8: POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
  • Max. PoE Wattage per Port by PSE:
    – 802.3at: 32W
  • Voltage Range:
    – 802.3af Mode: 44-57V
    – 802.3at Mode: 50-57V
