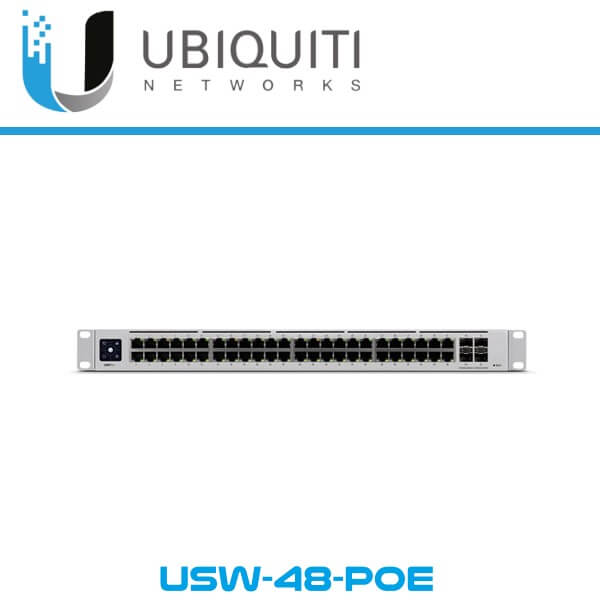

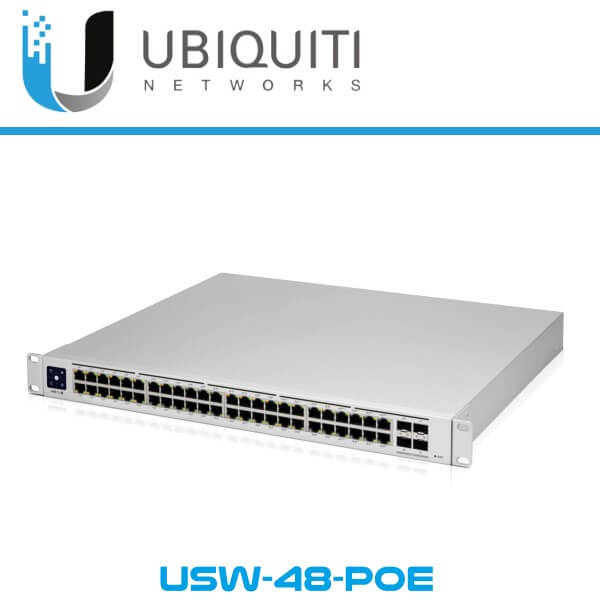

Ubiquiti UniFi USW-48-PoE Switch Dubai

The USW-48-PoE from Ubiquiti Networks is an easy-to-configure Gigabit Layer 2 switch in Dubai that comes with 48 Gigabit Ethernet ports which include 32 auto-sensing 802.3at PoE+ Ports as well as 4 SFP ports. It not only enables you to connect to your RJ45 Ethernet devices using Gigabit PoE links, but also allows you to connect to your enterprise network using Gigabit fiber uplink options. Ubiquiti UniFi USW-48-PoE Switch Dubai features a compact fanless design with a depth of 7.9″, therefore offering the easiest possible installation process in a SOHO rack cabinet. It also offers a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities. (*Layer 3 switching will be available in a future software release)

The USW-48-PoE Dubai can be managed and configured by the UniFi Network application using UniFi mobile app support so as to a variety of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. What’s more, admins can virtually configure and monitor all of the switch features in a graphical user interface from anywhere, thanks to the built-in UniFi Network application and mobile app.

Ubiquiti UniFi USW-48-PoE Switch key features

• (48) Gigabit Ethernet Ports including (32) 802.3at PoE+
• (4) 1G SFP Ports
• 1.3″ touch LCM
• 240W Power supply
• Managed with UniFi Network Application Version: 5.12.32 or higher
• Near silent cooling
  • Ubiquiti’s new airflow design reduces the need for fan usage.
• Powerful hardware and software
  • Ubiquiti UniFi Gen2 Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities. (*Layer 3 switching will be available in a future software release)
• UniFi SmartPower RPS, USP-RPS, is Ubiquiti’s PSU failover system.
  • In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device. One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
• Touch screen display
  • The 1.3″ touchscreen display allows easy monitoring and quick troubleshooting.

Ubiquiti UniFi USW-48-PoE Switch Technical Specifications

Product Specifications

• Dimensions: 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72″)
• Weight: 6.25 kg (13.78 lb)
• Weight with Rackmount Brackets: 6.34 kg (13.98 lb)
• Interfaces: (48) 10/100/1000 RJ45 Ports
• Networking: (4) 1/10G SFP+ Ethernet Ports
• Management: Ethernet In-Band
• Power Method:
  – Universal Input: 100-240VAC/50-60 Hz
  – USP RPS DC Input: 52VDC, 11.54A; 11.5VDC, 5.22A
• Power Supply: AC/DC, Internal, 120W
• Supported Voltage Range: 100 to 240VAC
• Max. Power Consumption (Excluding PoE Output): 60W
• LEDs:
  – System: Status
  – RJ45 Data Ports: PoE; Speed/Link/Activity
  – SFP Data Ports: Link/Activity
• ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
• Shock and Vibration: ETSI300-019-1.4 Standard
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 10 to 90% Noncondensing
• Certifications: CE, FCC, IC

Sound level* (* Background noise level: 27.5 dBa)

• 25% PoE, 25° C: 0.9 dBr
• 50% PoE, 25° C: 7.3 dBr
• 100% PoE, 40° C: 22.5 dBr

PoE

• PoE Interfaces:
  – Ports 1-40: POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)
  – Ports 41-48: 60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 😎
• Max. PoE Wattage per Port by PSE:
  – 802.3at: 32W
  – 802.3bt: 64W
• Voltage Range 802.3af Mode: 44-57V
• Voltage Range 802.3at Mode: 50-57V
