Description

Ubiquiti UniFi USW-Pro-24-PoE Dubai

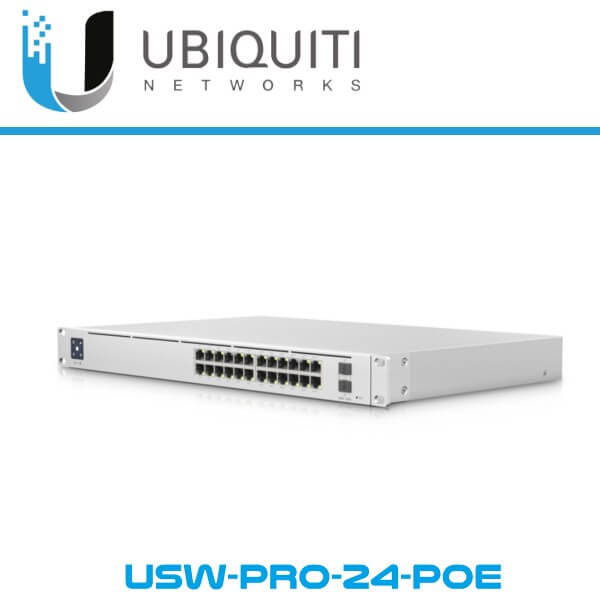

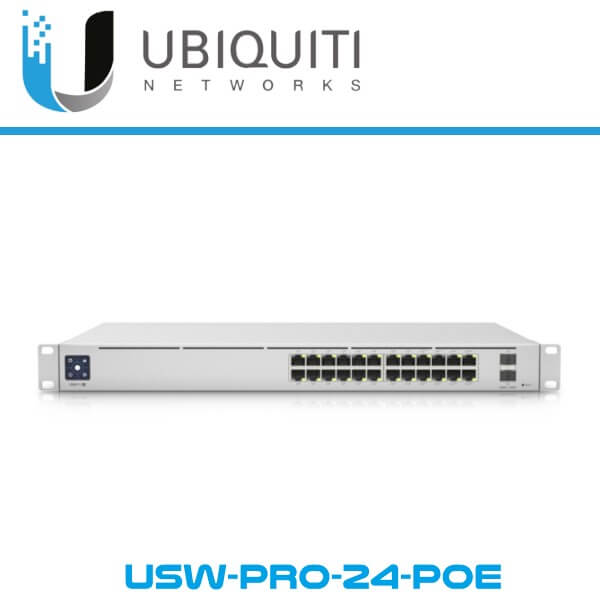

The Ubiquiti UniFi Switch Pro – 24- PoE Dubai is a fully managed Layer 3 switch which comes with eight 802.3bt (PoE++) and sixteen 802.3at (PoE+) Gigabit Ethernet ports, making it highly efficient for extended network purposes.  For increased capacity and higher availability, the Ubiquiti UniFi USW-PrO-24-PoE Dubai is equipped with two 10G SFP+ uplinks  which offer link aggregation.

The Ubiquiti USW-Pro-24-PoE Dubai boasts of many advanced Layer 2 capabilities and features  Layer 3 functionalities including inter-VLAN routing, static routing, and DHCP server. It is therefore a perfect access layer switch, suitable for any UniFi solution since it combines up to 400W of near-silent PoE power with UniFi SmartPower RPS power redundancy. Embedded UniFi Network application and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.It is therefore a perfect access layer switch, suitable for any UniFi solution since it combines up to 400W of near-silent PoE power with UniFi SmartPower RPS power redundancy.

Ubiquiti UniFi Switch Pro 24 – PoE Dubai Features:

• (8) Gigabit RJ45 802.3bt PoE++ ports
• (16) Gigabit RJ45 802.3at PoE+ ports
• (2) 10G SFP+ ports
• Layer 2 and Layer 3 features
• 400W maximum PoE power
• UniFi SmartPower RPS DC input
• Near-silent cooling
• 1.3″ touchscreen display
• Managed with UniFi Network Application Version: 5.10.5 or higher
• Near silent cooling
  • Ubiquiti UniFi Switch Pro – 24-PoE Dubai features a new airflow design which reduces the need for fan usage.
• Powerful hardware and software
  • The Ubiquiti UniFi Switch Pro-24-PoE Dubai Switch is designed to offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities. (*Layer 3 switching will be available in a future software release).
• UniFi SmartPower RPS, USP-RPS, is Ubiquiti’s PSU failover system.
  • In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device. One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
• Touch screen display
  • The Ubiquiti UniFi USW Pro-24-PoE Dubai is equipped with a 1.3″ touchscreen display which enables its users to carry out procedures such as easy monitoring and quick troubleshooting.

Ubiquiti UniFi USW Pro 24 PoE Technical Specifications

Product Specifications

• Dimensions: 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72″)
• Weight: 4.30 kg
• Weight with Rackmount brackets: 4.39 kg
• Interfaces: (24) 10/100/1000 RJ45 Ports
• Networking: (2) 1/10G SFP+ Ethernet Ports
• Management: Ethernet In-Band
• Power Method:
  – Universal Input: 100-240VAC/50-60 Hz
  – USP RPS DC Input: 52VDC, 7.69A; 11.5VDC, 2.61A
• Power Supply: AC/DC, Internal, 450W
• Supported Voltage Range: 100 to 240VAC
• Max. Power Consumption (Excluding PoE Output): 50W
• LEDs:
  – System: Status
  – RJ45 Data Ports: PoE; Speed/Link/Activity
  – SFP Data Ports: Link/Activity
• ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
• Shock and Vibration: ETSI300-019-1.4 Standard
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 10 to 90% Noncondensing
• Certifications: CE, FCC, IC

Sound level* (* Background noise level: 27.5 dBa)

• 25% PoE, 25° C: 0.9 dBr
• 50% PoE, 25° C: 7.3 dBr
• 100% PoE, 40° C: 18.8 dBr

PoE

• PoE Interfaces:
  – Ports 1-16: POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)
  – Ports 17-24: 60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 😎
• Max. PoE Wattage per Port by PSE:
  – 802.3at: 32W
  – 802.3bt: 64W
• Voltage Range 802.3af Mode: 44-57V
• Voltage Range 802.3at Mode: 50-57V
