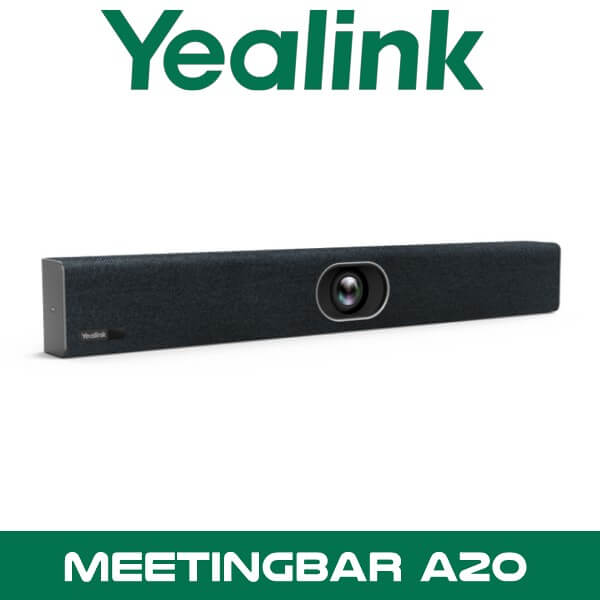

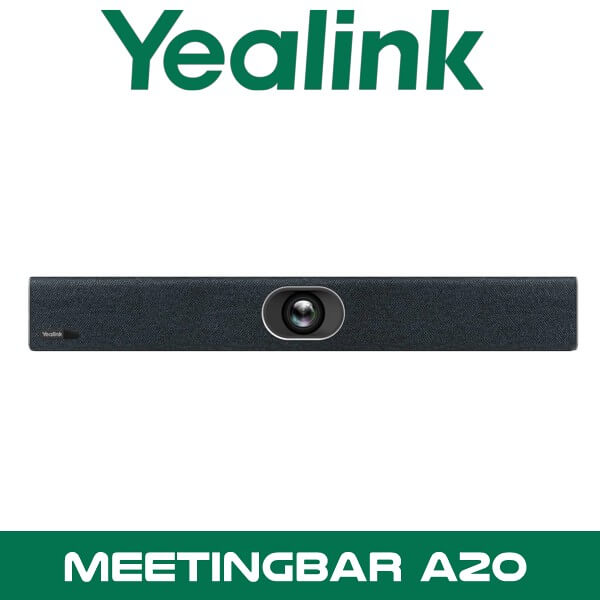

Yealink MeetingBar A20 For Zoom Dubai

The Yealink MeeetingBar A20 for Zoom Dubai is a complete video conferencing package that is designed for use in small and huddle meeting rooms. It is a stand-alone package that requires no use of a Mac or PC since it comes ready with Zoom software installed. The Yealink MeetingBar A20 For Zoom Dubai is equipped with a 20MP camera with a 133° super-wide-angle lens which delivers crystal clear images. The high-performance video collaboration bar offers a simple and flexible deployment that requires no technical expertise of its user. Yealink MeetingBar A20 for Zoom Dubai uses a number of AI technologies such as AutoFraming and Speaker to deliver a full-scene video conference experience. An integrated electric lens cap guarantees you maximum safety and privacy during the conference. Yealink MeetingBar A20 for Zoom Dubai is equipped with an 8 MEMS microphone that uses Yealink Noise Proof Technology to deliver outstanding audio clarity in medium-sized meeting rooms. It supports Human Body Detection to deliver a fast and convenient meeting experience. It also combines a computing unit, camera, microphones, speaker, Wi-Fi, and Bluetooth – making deployment simple.

Yealink MeetingBar A20 Zoom Dubai

Yealink A20 Key Features:

• Qualcomm Snapdragon 845 chipset
• ALL-IN-ONE design
• Two cameras
• 133° Super field of view
• Electric Privacy Shutter
• Dual screen
• Auto framing and speaker tracking
• Built-in Bluetooth
• Built-in dual-band Wi-Fi
• Content sharing
• Whiteboard
• Certified by Zoom

• Smart Video Collaboration
  • The Yealink MeetingBar A20 For Zoom Collaboration Bar Dubai runs on the powerful Android 9.0 Operating System and is equipped with a native Zoom interface which a user can easily join with just a single click of a button on a remote controller, or by just one touch. The collaboration bar supports both content sharing and the whiteboard that making the meeting more communicative and collaborative.
• See Everyone Clearly
  • The Yealink MeetingBar A20 for Zoom Dubai is equipped with a Qualcomm Snapdragon 845 chipset which enables it to carry out functions such as strong image processing, decoding and encoding. Its 20MP camera delivers a high-quality video conferencing experience which ensures that everyone can clearly see or be seen. The camera has a super-wide 133° field of view which makes it easy to clearly see everyone in the room without having to adjust the camera. In dim or backlit environments, the image brightness can be automatically optimized for maximum image clarity.
• Two cameras design with AI technology
  • A20 is equipped with two cameras design, one for panoramic analysis and one for image output. Featuring AI technology, including Auto Framing and Speaker Tracking, A20 not only supports framing the groups automatically according to the number and the position of the participants but also automatically zooms in on the speaker without adjusting the camera, making the participants more focus on the conference.
• Precise Sound Localization, Full-Duplex Experience
  • 8 MEMS microphone arrays make A20 have a stronger ability of noise proof and dereverberation. The new upgraded beamforming algorithm, together with the technology of processing on acoustic echo cancellation and the dereverberation, brings high-quality full-duplex calls and realizes more precise voice pickup.
• All-in-one Design for Fast Start
  • Integrating computing unit, camera, microphones, speaker, Bluetooth, Wi-Fi, A20 takes up less space and minimizing cable clutter. For easy deployment, it is ready for a video conference by simply plugging in the power adapter and HDMI cable. In addition, the Yealink Device Management ensures easy management for you.
• Yealink Noise Proof Technology
  • Yealink has developed its Noise Proof Technology to eliminate background noise and provides noise-free services even in a busy environment. Its Active Speaker feature helps you to recognize who is speaking during the meeting, therefore easily differentiating the voices of speakers. The phones automatically mute the microphone when no human voice is detected, and intelligently reduce background noise to a minimum when you are speaking.

Yealink MeetingBar A20 – Technical Specifications

Camera

• 20MP Camera
• 133° field of view
• 8x e-PTZ camera
• Electric privacy shutter
• Intelligence Features
  – Auto Framing
  – Speaker Tracking

Audio

• Built-in 8 MEMS microphone array
• Built-in 5W high fidelity speaker
• Yealink Noise Proof Technology
• Full-duplex
• Echo cancellation

Operating System

• Android 9.0

Meeting Features

• Calendar
• One-click join
• Meeting collaboration –
  – Content sharing
  – Whiteboard
• Meeting control:
  – Add participates
  – Hold/Resume
  – Camera On/Off
  – Mute/Unmute –
  Volume Up/Down
  – Hang up
• Zoom DM
• Direct sharing

Video Standard and Network Suitability

• Video codecs: H.264 High profile, H.264 SVC, H.264

Network and Security Features

• Built-in dual-band Wi-Fi (2.4GHz/5GHz)
• Built-in Bluetooth
• IPv4 and IPv6, DHCP/static IP
• HTTP/HTTPS webserver
• SRTP/TLS, AES 256-bit encryption
• QoS: 802.1p/q, Diff-serv
• VLAN, LLDP
• 1X
  – EAP-MD5/EAP-TLS
  – PEAP-MSCHAPv2
  – EAP-TTLS/EAP-MSCHAPv2
• Network diagnosis: Ping, Trace route
• Time and date synchronization using SNTP
• Built-in certificate

Connections

• 2 x HDMI output (CEC supported)
• 1 x USB 2.0 • 1 x 10/100M/1000M Ethernet port
• 1 x Yealink VCH port (RJ-45)
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot

Other Physical Features

• Storage: built-in 64 GB (Available: 40G)
• Chipset: Qualcomm Snapdragon 845 chipset
• Power Adapter: AC 100~240V input
• USB Output: 5V 0.5A
• Power consumption (PSU):
  – Idle < 10W; Normal operating: 10.5W; MAX: 14W
• Dimension (W.D.H): 600 mm x 68 mm x 82 mm
• Operating humidity: 10~95%
• Operating temperature: 0~40°C
• Storage temperature: -30~70°C

MeetingBar A20 Package

• Package contents:
  – MeetingBar A20 endpoint
  – 3m Ethernet cable
  – 2 x 1.8m HDMI cable
  – Mounting Bracket and Accessories
  – Power adapter
  – Quick Start Guide
  – Controller (optional): CTP18 Touch Panel VCR20 Remote Control
  – Content sharing(optional): VCH51 Sharing Kit (HDMI/USB-C) WPP20 Wireless Presentation Pod
• Carton Meas: 674*136*195mm
