Description

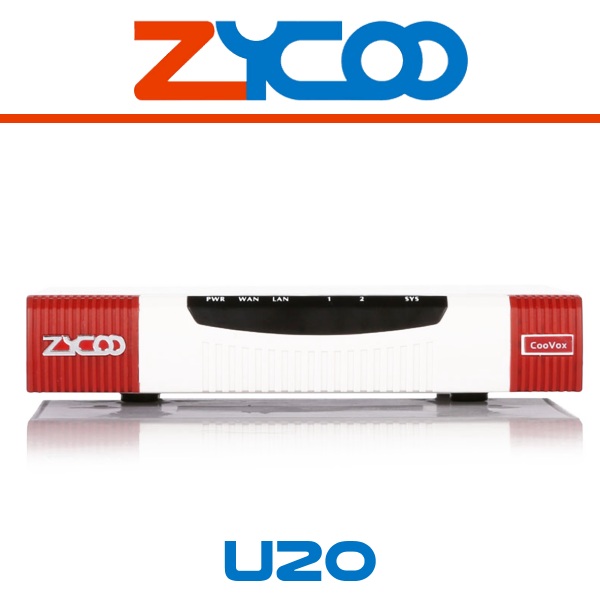

Zycoo CooVox U20 Dubai

Zycoo U20 Dubai is designed to meet today’s business communication requirements. CooVox-U20 V2 is an excellent option for small-medium business enterprises. Considered as the next generation smart telephone systems, it comes with both the features of traditional PBX systems and IP PBX systems. The system is scalable, interoperable, and highly reliable that can meet the most sophisticated communication environments. It supports making of 10 Concurrent Calls, Up to 30 IP Phone Registers/Extensions, Recording: 21000 mins GSM, 3000 mins. CooVox-U20 is a next-generation smart IP PBX system designed and optimized for today’s business telecommunication needs.

Zycoo U20 Dubai is an affordable, scalable, interoperable, secure, and reliable solution that provides not only traditional PBX features such as Automated Attendant and Voicemail. it’s the first Mobile IP Phone System with the inbuilt capability to use the GSM module to connect to the mobile network for mobile telephony.

Zycoo U20 Dubai is mostly used to decongest voice traffic in an organization. U20 is the most comprehensive user-friendly next-generation smart IP PBX System designed and optimized for today’s business telecommunication needs. CooVox-U20 is an affordable, scalable, interoperable, secure and reliable solution which provides not only traditional PBX features such as Automated Attendant and Voicemail, but also many advanced features including Remote Extensions, Conference Bridge, Call Recording, Call Detail Records (CDR), Automatic Call Distribution (ACD), Web Dial, Unified Messaging (Voicemail to Email), and many more features. With Zycoo-U20-2FX0-1GSM IP PBX with 2FXO and 1 GSM life becomes easily manageable.

Features

• Advanced calling features including call recording, call routing, call forwarding, call on hold, etc.…
• Support 3 way conferencing and video call
• Call monitoring
• Mobility extension
• Voice mail to email
• Support up to 15 concurrent calls
• Support up to 15 conferences
• The graphical user interface in multiple languages
• Phone provisioning
• Automatic call distribution

ZYCOO U20-A202 Technical Specification

Call Features

• Call Back
• Call Forward
• Call Hold
• Call Paging and Intercom
• Call Park
• Call Pickup
• Call Queue
• Call Recording
• Call Routing
• Blind Transfer
• Attendant Transfer
• Call Waiting
• One Number Stations
• Caller ID
• Dial by Name
• Music On Hold/Transfer
• 3-Way Conference
• Video Call

PBX Features

• Black List
• BLF (Busy Lamp Field)
• CDR (Call Detailed Record)
• Conference Room (20 Rooms)
• Call Monitoring
• DID (Direct Inward Dialing Number)
• DISA (Direct Inward System Access)
• Distinctive Ringtone
• DND (Do Not Disturb)
• DNIS (Dialed Number Identification Service)
• Feature Codes
• FOP (Flash Operation Panel) Status Monitoring
• Follow Me
• IVR (Interactive Voice Responses)
• Mobility Extension
• Multi-Language Prompts
• Multi-Language GUI
• One Touch Recording
• Phone Book(LDAP Server)
• Phone Provisioning
• Pin Set
• Record File Download
• Ringgroup
• SIP Register with UDP/TCP/TLS
• SIP Trunk
• Skype for SIP
• Smart DID
• Speed Dial
• Spy
• SRTP (Secure Realtime Transport Protocol)
• T.38 Fax (Pass-through)
• Time Based Rule
• WebRTC
• Voicemail & Voicemail to Email

System Capacities

• Up to 15 Concurrent Calls
• Up to 20 Conferences
• Up to 30 IP Phone Registers/Extensions
• Recording: 36,000 mins (.gsm); 4,000 mins (.wav)
• Voicemail: 36,000 mins (.gsm); 4,000 mins (.wav)

Codecs and Protocols

• Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/
• G.726/G.729/GSM/SPEEX
• Video Codecs: H.261/H.263/H.263+/H.264
• Protocols: SIP (RFC3261)/IAX2
• DTMF: RFC2833/SIP INFO/In-Band

Network Features

• DDNS Client
• DHCP Server
• IPv4/IPv6/IEEE802.1Q
• IP Assignment (PPPoE/DHCP/Static)
• SNMP v1/v2
• TR069
• Static Route Table
• Trouble Shooting (Ping/Traceroute)
• VPN Client (N2N/L2TP/PPTP/OpenVPN/IPSec)
• VPN Server (PPTP/L2TP/OpenVPN/IPSec)

Security Features

• Refuse SIP Register DoS
• Refuse Abort Invite DoS
• Refuse SSH Login DoS

Logs

• PBX Log
• Web Access Log
• PBX Debug Log

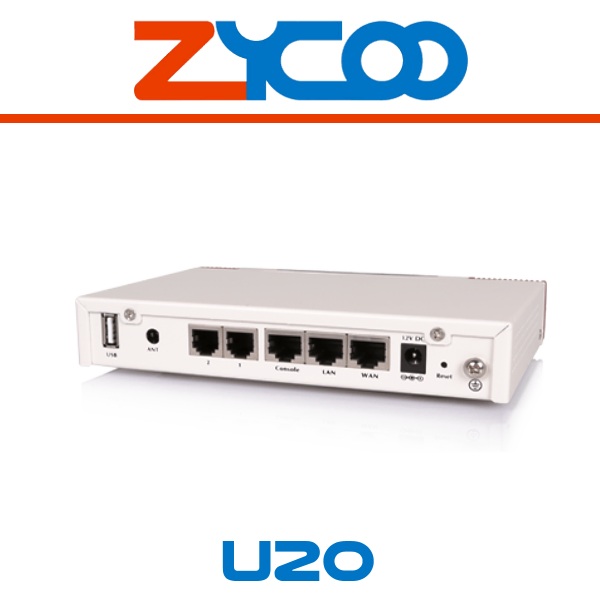

Hardware Interfaces

• 1 Reset Button
• 1 Power Interface
• 2 Ethernet Interfaces(WAN/LAN)
• 2 Analog Ports (FXO/FXS)
• 1 USB 2.0 Interface for Storage
• 1 Console Port

Hardware Specifications

• Processor: DualCore A7(1GHz)
• SDRAM: DDR3 512MB
• Storage: 8GB SD Card(Industry Standard)
• Power Supply: Input AC 100~240V, 50/60Hz;
• Output DC 12V/1A

Environment

• Working Temperature: 0 ~ 40°C
• Storage Temperature: -20 ~ 55°C
• Humidity: 5 ~ 95% Non-condensing

Packings

• Dimension: 295 × 155 × 65mm
• Weight/Unit: 0.8kg
• Unit /Carton: 10 Units
• Weight/Carton: 9kg
