Description

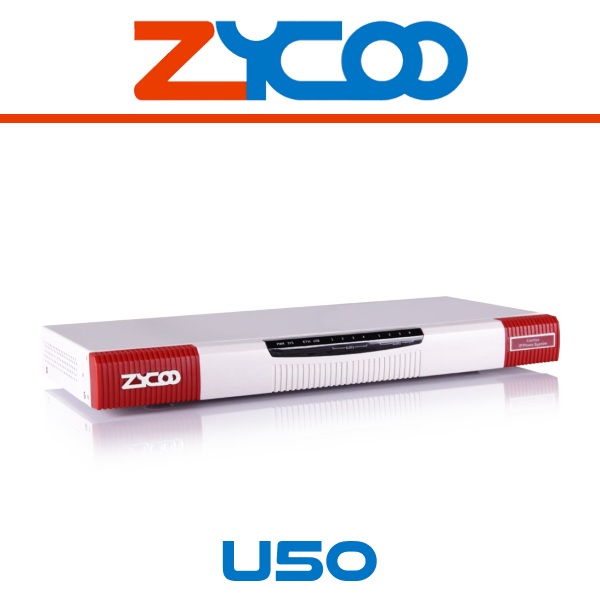

Zycoo U50 Dubai

Zycoo U50 Dubai has many advanced features, including remote extensions, remote office connection, conference bridge, call recording, call detail records (CDR), automatic call distribution (ACD), unified messaging (voice mail to email), and many more features. It is an affordable, secure, and reliable solution that provides not only traditional PBX functions such as automated attendants and voicemail.

Zycoo U50 Dubai has a quick setup wizard, which allows speedy initial configuration of the U50 system. The wizard includes all essential configuration steps in an easy to use and intuitive web-based interface. Quick and straightforward deployment of endpoint devices using PNP and Quick Register Code. Coo-Call APP can be provisioned by scanning a QR code. Combining the Coo Vox series IPPBX with EX16S Gateways can result in deployment time savings of 90% when deploying large amounts of analog phones. SMTP templates allow for a simple configuration of the mail server.

Key Features

• 30 Concurrent Calls
• Up to 100 IP Phone Registers/Extensions
• Voicemail & Voicemail to Email
• Video Codecs: H.261/H.263/H.263+/H.264
• SIP Register with UDP/TCP/TLSSIP Trunk
• Skype for SIP
• Easy User Interface
  • The Zycoo U50 Dubai comes with a quick setup wizard that allows for a quick initial configuration of the IP PBX System. The wizard includes all essential configuration steps in an easy to use and intuitive web-based interface. The system endpoints Provision is quick and simple in deploying of devices using PNP and quick register Code.
• Rich Functionality
  • The Zycoo U50 Dubai is fitted with a variety of advanced features that boost your general user experience. Some of the available features include Fax to email, voicemail to email, send QR code via email, system events email notifications, etc.
• Extension Web Portal (WebRTC Integrated)
  • Zycoo U50 Dubai is integrated with Web Portal which enables you to seamlessly Playback voicemail/recordings online, make/receive phone calls, click to dial, incoming call pop-up, send a fax. All of this from within your web browser without installing any plugins.

ZYCOO Coovox U50 – Technical Specifications

PBX Features

• Black List
• BLF (Busy Lamp Field)
• CDR (Call Detailed Record)
• Conference Room (20 Rooms)
• Call Monitoring
• DID (Direct Inward Dialing Number)
• DISA (Direct Inward System Access)
• Distinctive Ringtone
• DND (Do Not Disturb)
• DNIS (Dialed Number Identification Service)
• Feature Codes
• FOP (Flash Operation Panel) Status Monitoring
• Follow Me
• IVR (Interactive Voice Responses)
• Mobility Extension
• Multi-Language Prompts
• Multi-Language GUI
• One Touch Recording
• Phone Book
• Phone Provisioning
• Pin Set
• Record File Download
• Ringgroup
• SIP Register with UDP/TCP/TLS
• SIP Trunk
• Skype for SIP
• Smart DID
• Speed Dial
• Spy
• SRTP (Secure Realtime Transport Protocol)
• T.38 Fax (Pass-through)
• Time Based Rule
• Fax to Email
• WebRTC/ Web Dial
• Voicemail & Voicemail to Email

System Capacities

• 30 Concurrent Calls
• Up to 100 IP Phone Registers/Extensions
• Recording: 36,000 mins (.gsm); 4,000 mins (.wav)
• Voicemail: 36,000 mins (.gsm); 4,000 mins (.wav)

Codecs & Protocols

• Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/
• G.726/G.729/GSM/SPEEX
• Video Codecs: H.261/H.263/H.263+/H.264
• Protocols: SIP (RFC3261)/IAX2
• DTMF: RFC2833/SIP INFO/In-Band

Network Features

• DDNS Client
• DHCP Server
• IPv4/IPv6/IEEE802.1Q
• IP Assignment (PPPoE/DHCP/Static)
• SNMP v1/v2
• TR069
• Static Route Table
• Trouble Shooting (Ping/Traceroute)
• VPN Client (L2TP/PPTP/OpenVPN/N2N/IPSec)
• VPN Server (L2TP/PPTP/OpenVPN/IPSec)

Security Features

• Refuse SIP Register DoS
• Refuse Abort Invite DoS
• Refuse SSH Login DoS
• Firewall

Logs

• PBX Log
• Web Access Log
• PBX Debug Log

Hardware Interfaces

• 1 Reset Button
• 1 Power Interface
• 2 Ethernet Interfaces
• 1 Console Interface
• 1 USB Interface Slot
• 1/2 for Analog/GSM/WCDMA Module

Hardware Specifications Processor:

• Dualcore A7 1Ghz
• SDRAM: DDR3 1GB
• Storage: 8GB SD Card Power
• Supply: Input AC 100~240V, 50/60Hz;
• Output DC 12V/2A

Environment

• Working Temperature: 0 ~ 40°C
• Storage Temperature: -20 ~ 55°C
• Humidity: 5 ~ 95% Non-condensing
