Description

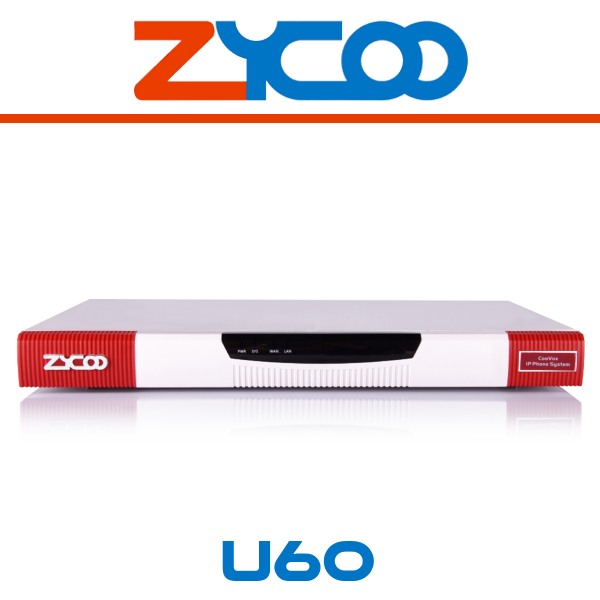

ZYCOO U60 Dubai

The Zycoo U60 Dubai is a hybrid IP PBX system that has specifically been designed to serve the communication needs and requirements of SMBs. Designed to be highly versatile, the powerful IP PBX offers 24 analog ports that can accommodate up to 24 PSTN lines. It can also host up to 12 EX16S expansion boxes to deploy up to 192 legacy phones, making it the ultimate solution for users who wish to upgrade their phone systems using IP PBX and PSTN lines. Zycoo U60 Dubai combines all of the features available to a legacy PBX system with the added benefits you get from a fully-featured enterprise-class VoIP IPPBX solution.

Zycoo U60 Dubai is fitted with a quick setup wizard that allows for a quick initial configuration of the IP PBX System. The wizard includes all essential configuration steps in an easy to use and intuitive web-based interface. The system endpoints Provision is quick and simple in deploying of devices using PNP and quick register Code. Coo Call APP can be provisioned by scanning a QR code. EX16S Expansion Box Provisioning Combining the CooVox series IPPBX with EX16S Gateways can result in deployment time savings of 90% when deploying large amounts of analog phones. Email Notifications SMTP templates allow for a simple configuration of the mail server.

Key Features

• No Licensing Fees (only restriction is system capacity)
• Expandable to 16 Ports FXS/FXO (if required)
• Supports 80 Concurrent Calls
• Designed for Legacy deployments with large analog footprint
• Up to 24 Analog Ports (FXO/FXS)
• VGA Port for Ease of Management
• Optional hardware echo cancellation modules
• Full IP PBX features
• Attach external loudspeaker or IPOD device
• Easy User Interface
  • The Zycoo U60 Dubai comes with a quick setup wizard that allows for a quick initial configuration of the IP PBX System. The wizard includes all essential configuration steps in an easy to use and intuitive web-based interface. The system endpoints Provision is quick and simple in deploying of devices using PNP and quick register Code.
• Rich Functionality
  • The Zycoo U60 Dubai is fitted with a variety of advanced features that boost your general user experience. Some of the available features include Fax to email, voicemail to email, send QR code via email, system events email notifications, etc.
• Extension Web Portal (WebRTC Integrated)
  • Zycoo U60 Dubai is integrated with Web Portal which enables you to seamlessly Playback voicemail/recordings online, make/receive phone calls, click to dial, incoming call pop-up, send a fax. All of this from within your web browser without installing any plugins.
• Highly Versatile
  • CooVox U60 Dubai powerful IP PBX offers 24 analog ports that can accommodate up to 24 PSTN lines. It can also host up to 12 EX16S expansion boxes to deploy up to 192 legacy phones, making it the ultimate solution for users who wish to upgrade their phone systems using IP PBX and PSTN lines.

ZYCOO CooVox U60 – Technical Specifications

Call Features

• Call Back
• Call Forward
• Call Group
• Call Hold
• Call Paging and Intercom
• Call Park
• Call Pickup
• Call Queue
• Call Recording
• Call Routing
• Blind Transfer
• Attended Transfer
• Call Waiting
• Caller ID
• Dial by Name
• Music On Hold/Transfer
• 3-Way Conference
• Video Call

PBX Features

• Black List
• BLF (Busy Lamp Field)
• CDR (Call Detailed Record)
• Conference Room (12 Rooms)
• Call Monitoring DID (Direct Inward Dialing Number)
• DISA (Direct Inward System Access)
• Distinctive Ringtone DND (Do Not Disturb)
• DNIS (Dialed Number Identification Service)
• Feature Codes
• Follow Me
• IVR (Interactive Voice Responses)
• Mobility Extension
• Multi-Language Prompts
• Multi-Language GUI
• One Touch Recording
• Phone Book
• Phone Provisioning
• Pin Set
• Record File Download
• Ringgroup SIP Register with UDP/TCP/TLS
• SIP Trunk
• Skype for SIP
• Smart DID
• Speed Dial Spy SRTP (Secure Realtime Transport Protocol)
• T.38 Fax (Pass-through)
• Time Based Rule
• Virtual Fax
• Voicemail & Voicemail to Email

System Capacities

• 80(Max) Concurrent Calls
• Up to 200 IP Phone Registers/Extensions
• Recording: 200,000 mins (.gsm); 20,000 mins (.wav)
• Voicemail: 200,000 mins (.gsm); 20,000 mins (.wav) – See more at: http://zycoo.com/html/U60.html#sthash.Xf7EdvN8.dpuf

Codecs and Protocols

• Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/
• G.726/G.729/GSM/SPEEX
• Video Codecs: H.261/H.263/H.263+/H.264
• Protocols: SIP (RFC3261)/IAX2
• DTMF: RFC2833/SIP INFO/In-Band

Network Features

• DDNS Client
• DHCP Server
• IPv4/IPv6/IEEE802.1Q
• IP Assignment (PPPoE/DHCP/Static)
• SNMP v1/v2
• TR069
• Static Route Table
• Trouble Shooting (Ping/Traceroute)
• VPN Client (N2N/L2TP/PPTP/OpenVPN)
• VPN Server (PPTP/L2TP/OpenVPN, Up to 10 Users)

Security Features

• Refuse SIP Register DoS
• Refuse Abort Invite DoS
• Refuse SSH Login DoS
• Firewall

Logs

• PBX Log
• Web Access Log
• PBX Debug Log

Hardware Interfaces

• 1 Power Interface
• 1 Power Switch
• 2 Ethernet Interfaces (10/100/1000Mbps)
• 1 VGA Interface
• 2 Audio Interfaces
• 2 USB Interfaces 1 Hardware Echo Cancellation Interfaces (onboard)
• 1 UMTS Interface for 3G Data (onboard)
• 24 Analog Ports (FXO/FXS)

Hardware Specifications

• CPU: DualCore 1.86 GHz ATOM
• SDRAM: DDR3 1GB
• Storage: 32GB SSD
• Power Supply: AC 100~240V, 50/60Hz, 1.5A max

Environment

• Working Temperature: 0 ~ 40°C
• Storage Temperature: -20 ~ 55°C
• Humidity: 5 ~ 95% Non-condensing
