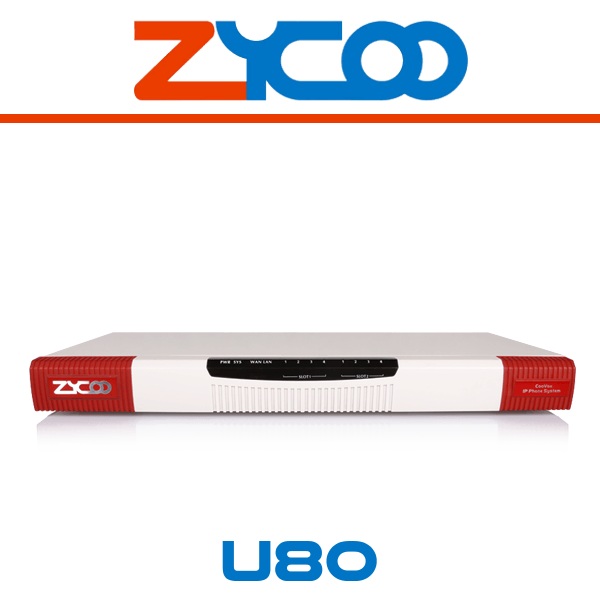

 ZYCOO CooVox-U80 IP PBX Dubai

ZYCooVox-U80 Dubai is suitable for enterprises requiring 100 to 200 extensions and a maximum of 60 concurrent calls. It’s an affordable, scalable, interoperable, secure and reliable choice for you to build your own. It has a quick setup wizard that allows speedy initial configuration of the U80 system. It is a modern IP PBX system designed for medium to large enterprises. It is a truly powerful hardware platform that supports PSTN/GSM/WCDMA trunks, ISDN E1/T1 and BRI digital trunk lines. Through its innovative software features, ZYCooVox-U80 Dubai allows for enterprise-grade unified VoIP communications.

The ZYCooVox-U80 Dubai includes all essential configuration steps in an easy to use and intuitive web-based interface. Also, it has a quick and simple deployment of endpoint devices using PNP and Quick Register Code. Coo-Call APP can be provisioned by scanning a QR code. Thanks to the extension web portal, you can now Playback voicemail/recordings online, make/receive phone calls, click to dial, incoming call pop-up, send the fax. All of this from within your web browser without installing any plugins. Email Notifications SMTP templates allow for a simple configuration of the mail server.

Fax to email, voicemail to email, send QR code via email, system events email notifications, etc. U80 Combines CooVox series IPPBX with EX16S gateways that result in deployment time savings of 90% when deploying large amounts of analog phones. The same extension can now be registered on 5 different endpoints. This means that a desktop IP phone and mobile phone APP can share the same extension number so wherever you are, you’ll never miss any important calls.

Features

• PBX Features Up to 200 Extensions
• Up to 60 Simultaneous Calls
• Up to 40 Simultaneous Conference Attendees
• Up to 36 Call Queues
• Up to 36 Conference Rooms
• Recording up to 150 hrs (WAV)
• Recording up to 1500 hrs (GSM)

ZYCOO CooVox-U80 IP PBX – Technical Specifications

PBX Features

• Up to 200 Extensions
• Up to 60 Simultaneous Calls
• Up to 40 Simultaneous Conference Attendees
• Up to 36 Call Queues
• Up to 36 Conference Rooms
• Recording up to 150 hrs (WAV)
• Recording up to 1500 hrs (GSM)
• Automatic Recording/One Touch Recording
• CDR (Call Detailed Recording)
• Multi-layer IVR (Interactive Voice Response)
• TDM/SIP/IAX Extensions/trunks
• Flexible Inbound/Outbound Routing
• Time-based Routing
• Remote Extensions & Remote Offices
• Paging & Intercom
• Video Call
• Call Forward/Transfer
• Web Extension (WebRTC)
• Follow Me
• DND (Do Not Disturb)
• Ring Groups
• Pick-up Groups
• DISA (Direct Inward System Access)
• Virtual Fax
• Voicemail to Email/Fax to Email
• One Number Stations
• Smart DID

Media

• Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/G.726/G.729/GSM/SPEEX
• Video Codecs: H.261/H.263/H.263+/H.264 Fax: T.38 (passthrough)

Network & Protocols

• IPv4, IPv6, VLAN, DHCP, PPPoE, DDNS, SNMPv2, NTP, SNTP, TFTP, SSH, HTTPS, SRTP, TLS, LDAP, TR069

Security

• HTTPS, Fail2Ban, Permit IP, Whitelist, Blacklist VPN Server (PPTP, L2TP, OpenVPN, IPSec) VPN Client (N2N, PPTP, L2TP, OpenVPN, IPSec

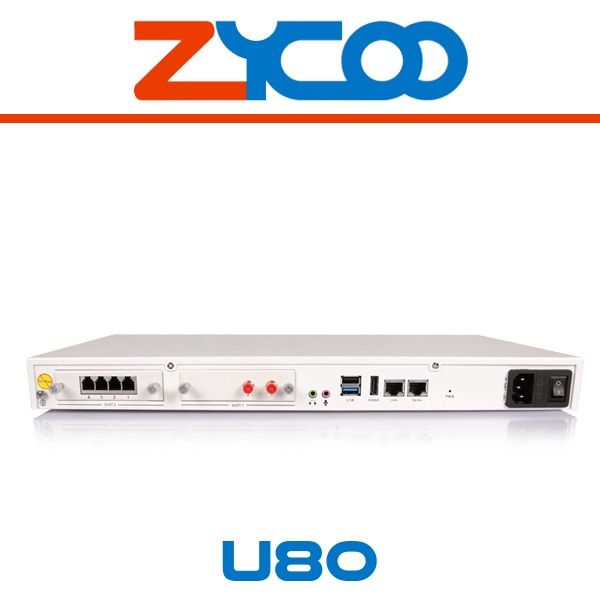

Hardware

• Intel Dual-core 2.41GHz CPU
• 2GB DDR3L RAM
• 16GB On board EMMC
• HDMI (High-Definition Multimedia Interface)
• Audio In/Out (Paging)
• 2x1000Mbps Ethernet Ports
• USB 3.0 + USB
• 2.0 (Extended Storage)
• 2xModule Slots

Telephony Signaling & Control

• SIP (RFC3261)
• SIP over UDP/TCP/TLS
• IAX2
• DTMF: RFC2833, SIP Info, In-band
• SRTP
• PRI, SS7, MFC/R2

Power

• AC 100~240V, 50/60Hz, 1.5A max

Environment

• Working Temperature: 0 ~ 40°C
• Storage Temperature: -20 ~ 55°C
• Humidity: 5 ~ 95% Non-condensing
